VoiceBox 4 I/OP

User Manual

 Attero Tech LLC 2010

Page 13

614-00008-02

3.4 – Output Processing

The audio for the local outputs is passed from the matrix mixer to the output processing stage. Figure 18 below shows the
form for outputs 1 and 2. The layout is identical for outputs 3 and 4.

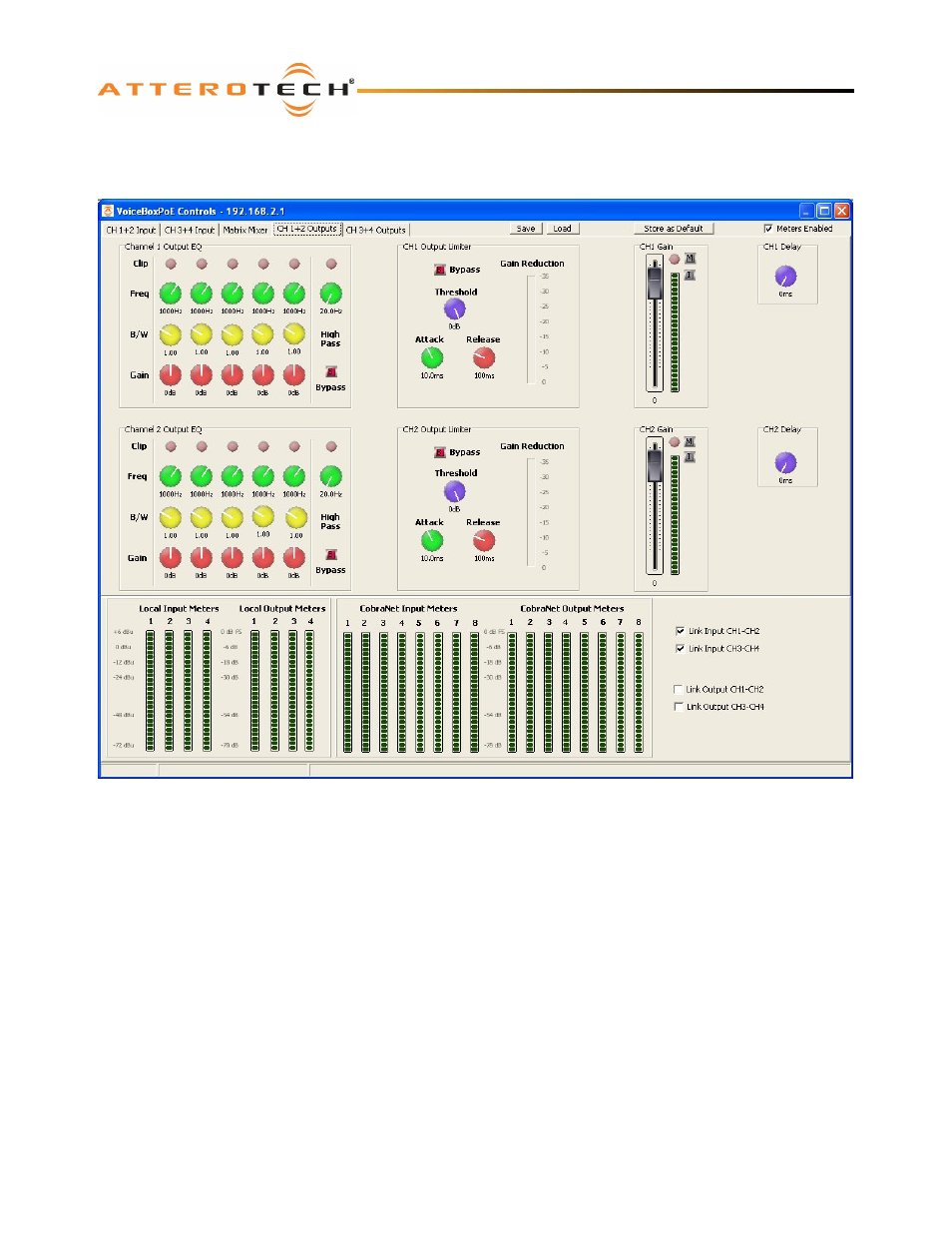

Figure 18 - Local output processing for Channels 1 and 2
