© MuxLab Inc. Multimedia 16x16 Matrix Switch Installation Guide
Page 38
To implement network modifications, the user makes changes to the IP address,
Network mask, or Router fields and then clicks on Save. The user also has the option
of using DHCP.
To implement password modifications, an administrator makes changes to the
Administrator Password and/or the User Password, and then clicks on the
corresponding Save button. Regular users can only make changes to the User
Password.

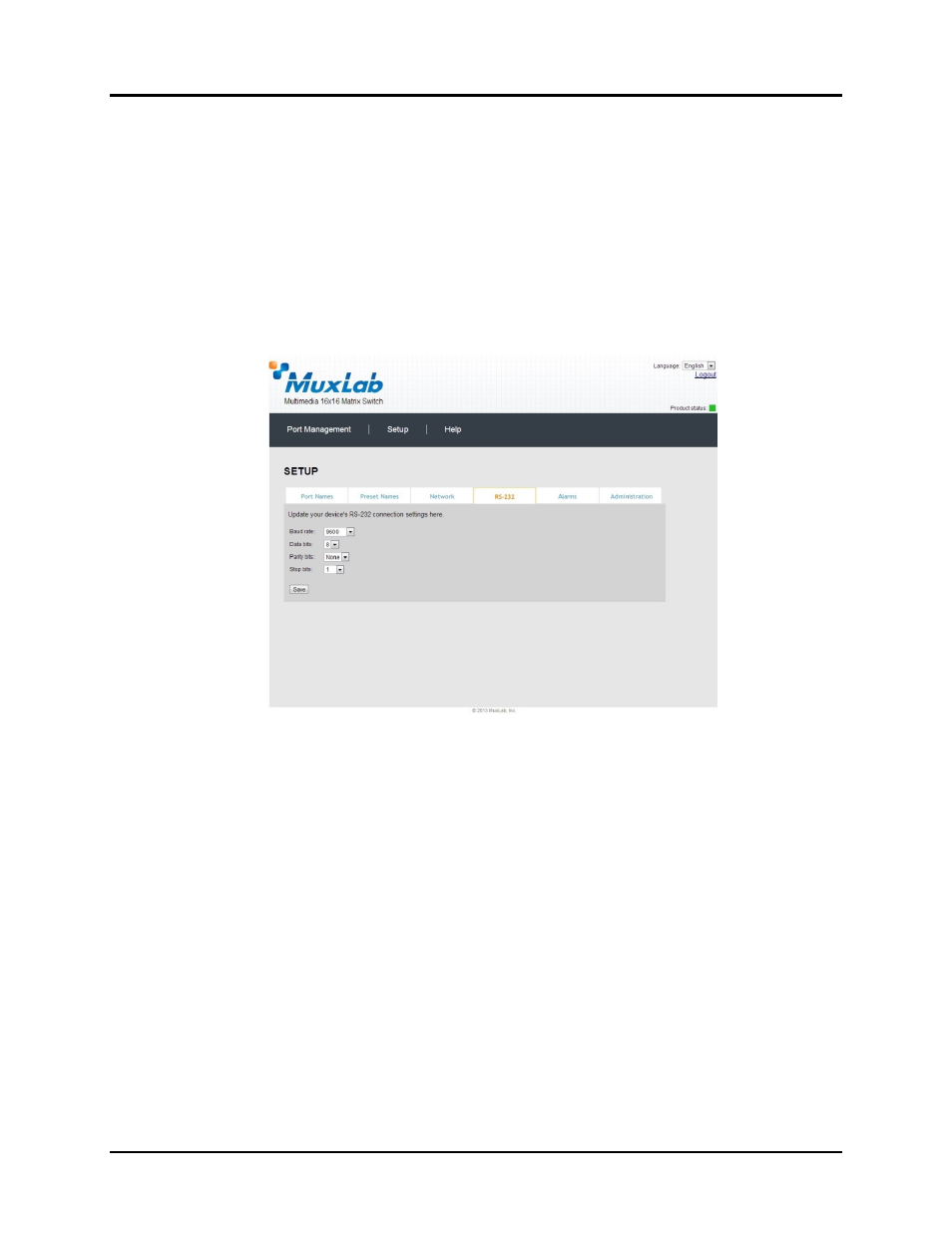

In the RS-232 tab (Figure 24), the user can modify
RS-232 settings.
Figure 24: Port Setup Submenu – RS-232
To implement RS-232 modifications, the user selects options in the drop-down boxes
for Baud rate, Data bits, Parity bits, or Stop bits and then clicks on Save.
