© MuxLab Inc. Multimedia 16x16 Matrix Switch Installation Guide
Page 11

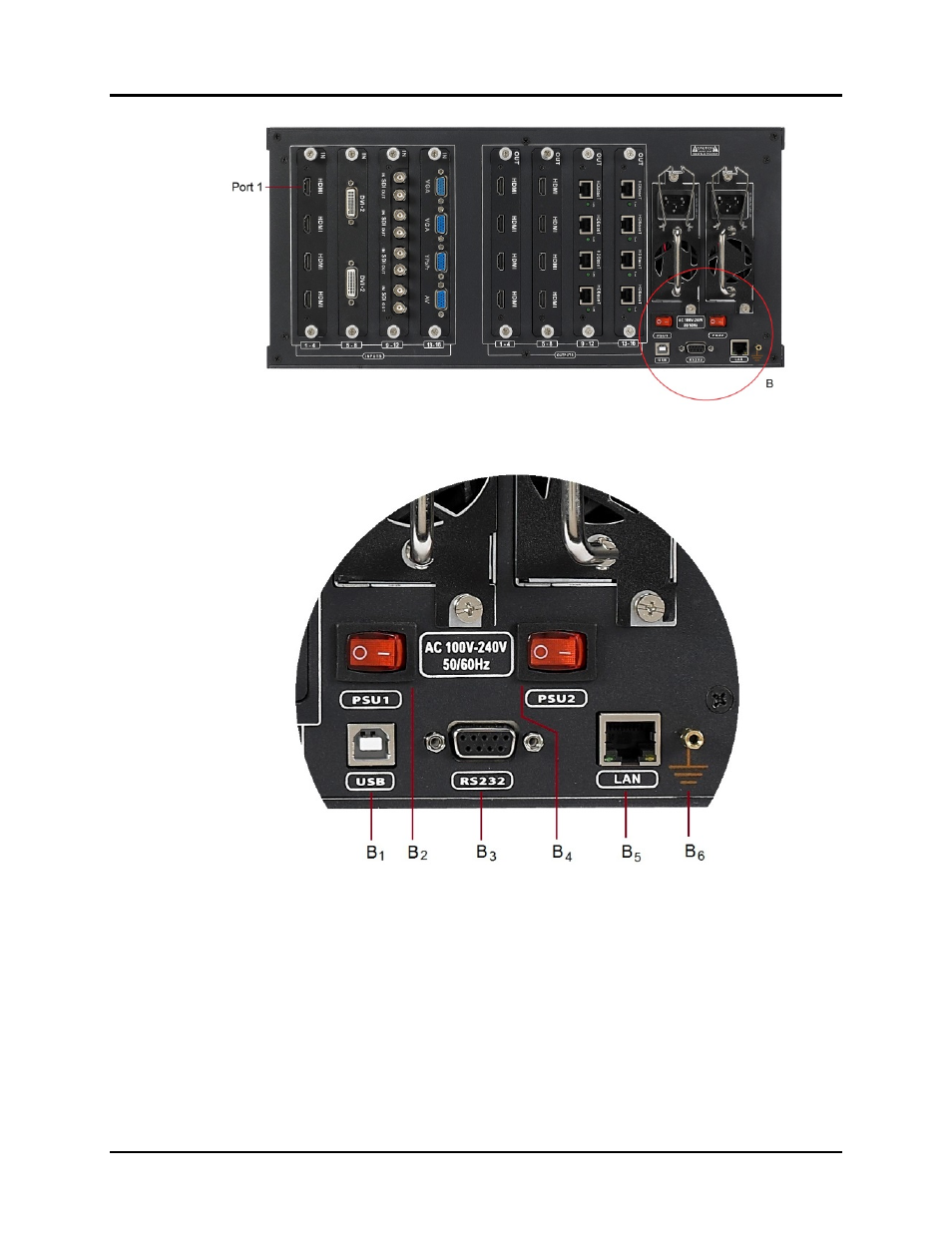

Figure 4: Back Panel
Figure 5: Back Panel Detail B
B
1
= USB Port
B
2
= Power Supply Unit 1 I/O Switch
B
3
= RS232 Port
B
4
= Power Supply Unit 2 I/O Switch
B
5
= Ethernet Port
B
6
= Grounding Connection
