(2) Setup
The Setup submenu (Figure 21) is used to perform the following tasks:
• Modify port names
• Modify present names
• Modify network connections and passwords
• Modify RS232 connections
• Modify alarm settings
• Upgrade firmware

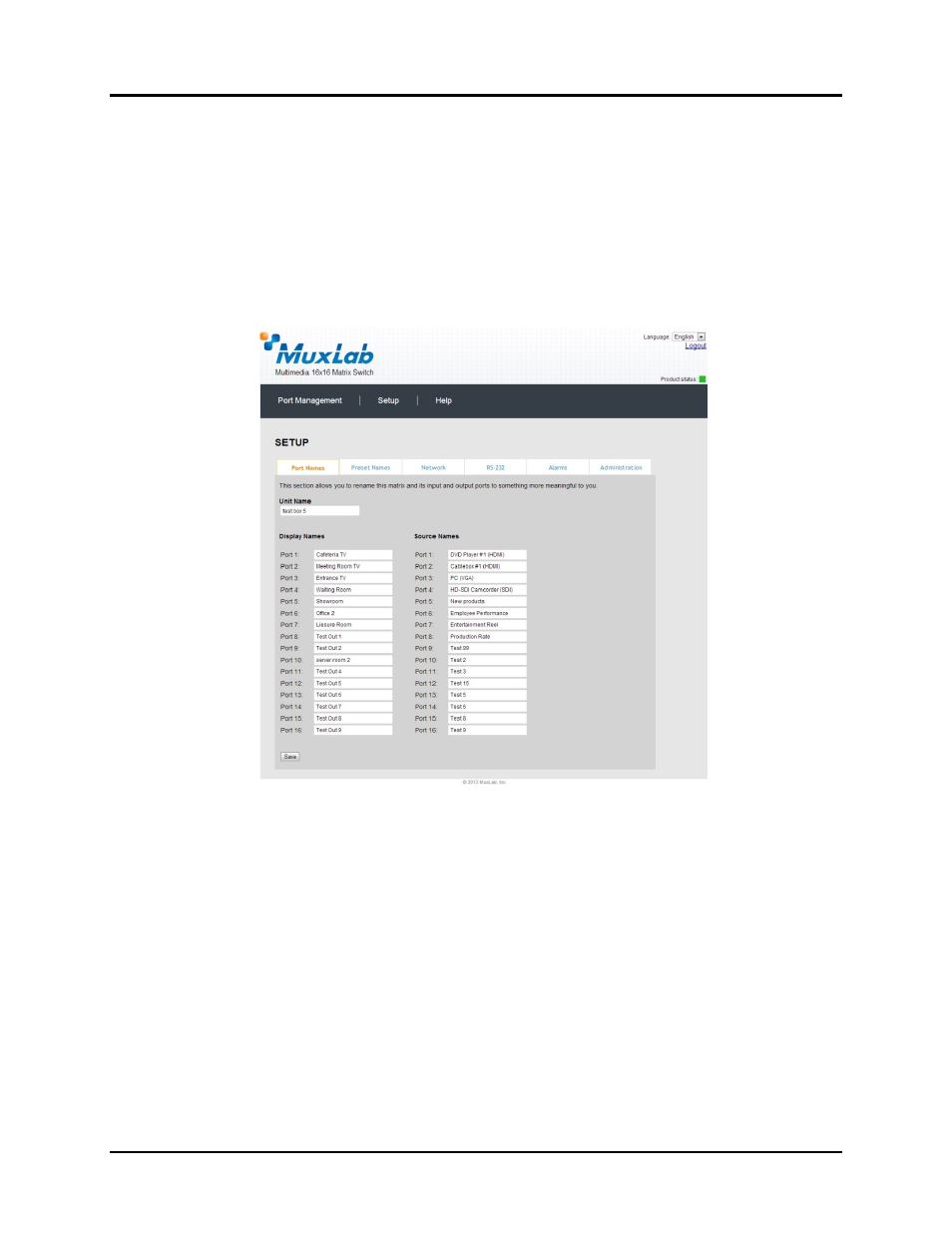

Figure 21: Port Setup Submenu – Port Names
In the Port Names tab, the user can modify port names in the Display Names and
Source Names columns, and then click on Save to save these modifications. The user
can also modify the name of the entire device by changing the text that appears in the
Unit Name box and clicking on Save.
The length of all names is limited to 20 characters each.
In the Preset Names tab (Figure 22), the user can modify the names of presets.
