© MuxLab Inc. Multimedia 16x16 Matrix Switch Installation Guide
Page 10
3.2. Product Overview
The external connections and connection indicators of the Multimedia 16x16 Matrix
Switch are detailed in Figure 2 and Figure 3. Please familiarize yourself with them
before installing the unit.

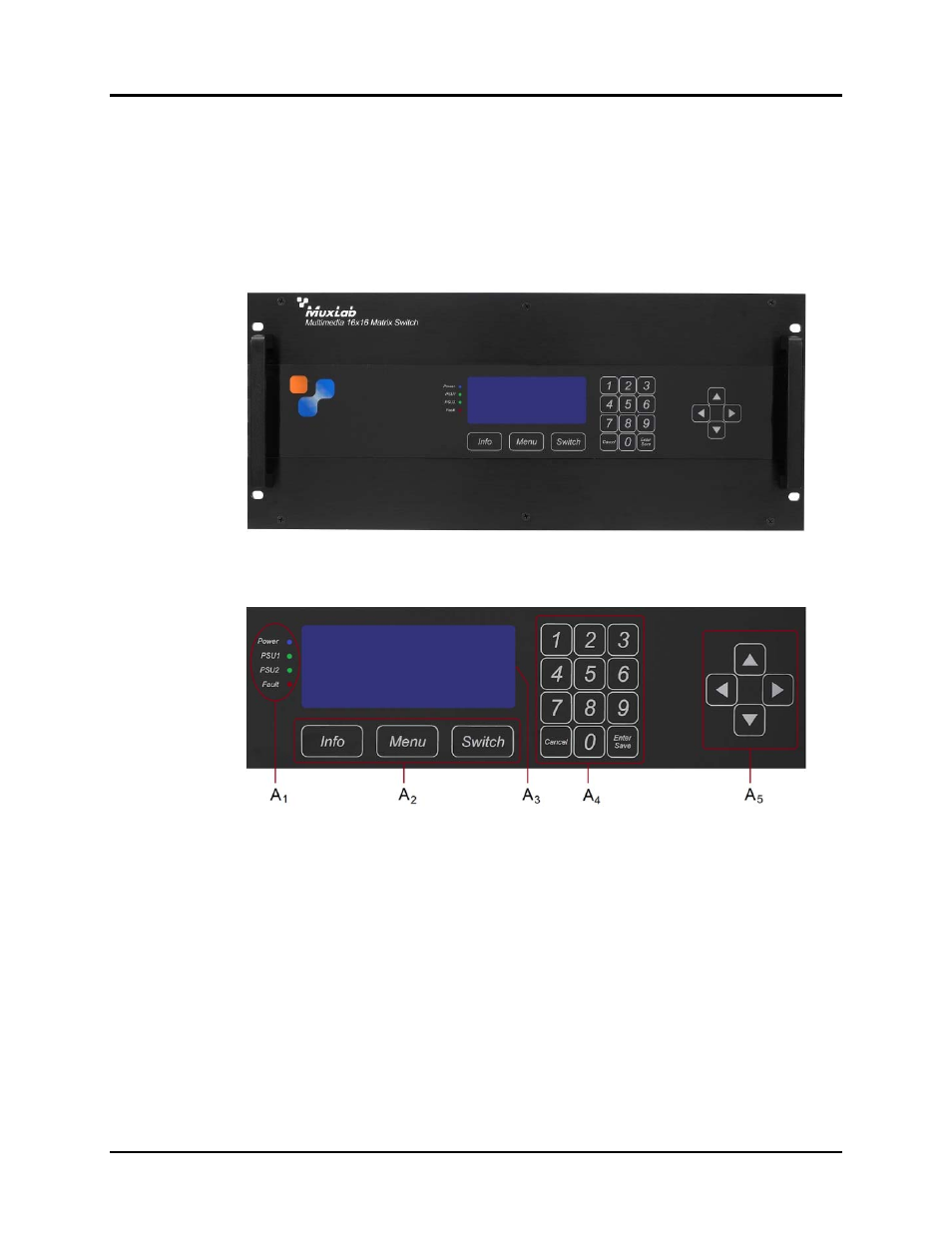

Figure 2: Front Panel
Figure 3: Front Panel Controls
A
1
= Status LEDs (Power, PSU1, PSU2, Fault)
A
2
= Control Buttons
A
3
= LED Display
A
4
= Numeric Keypad
A
5
= Navigational Arrows
