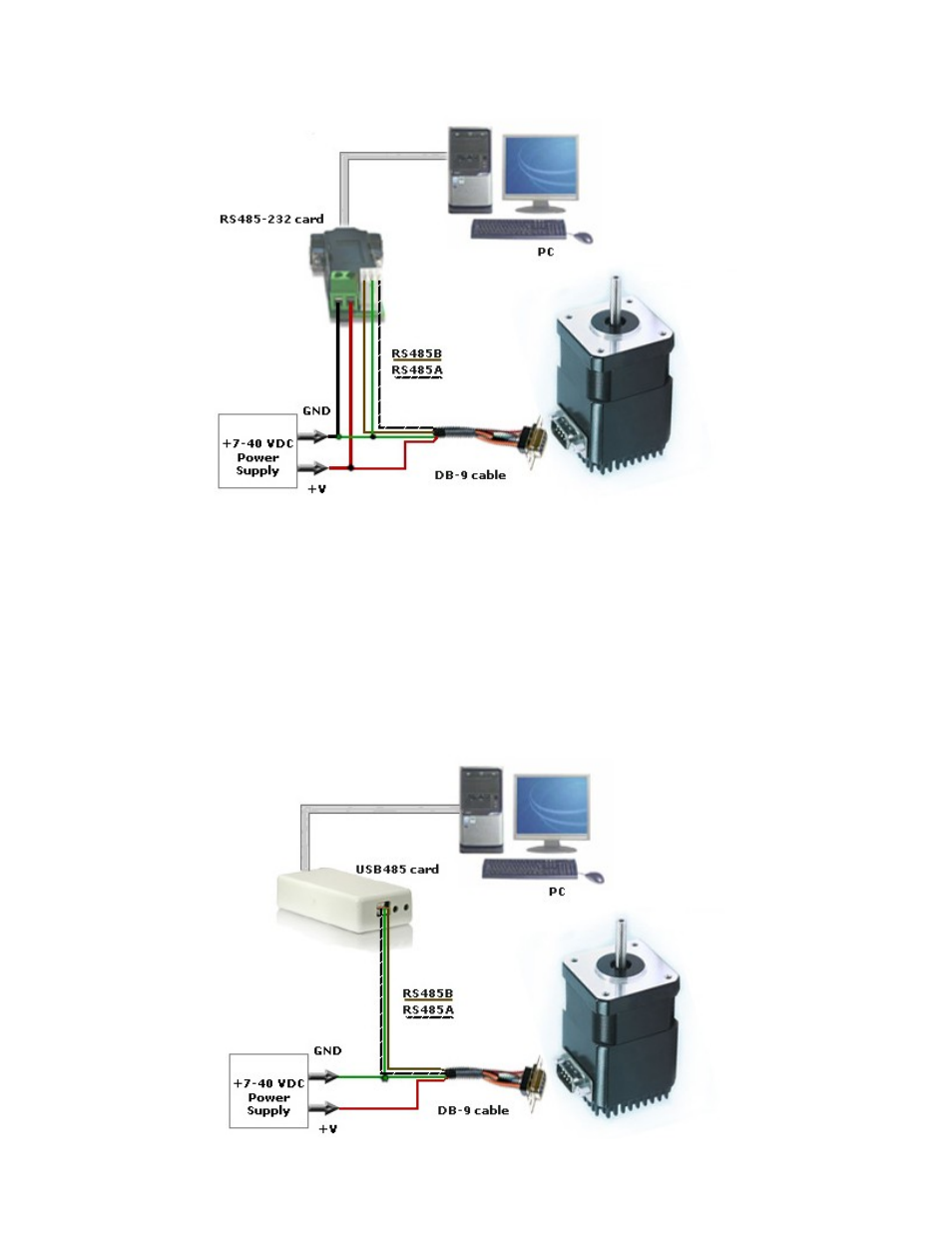

RS232-485 converter card
(Figure 4)
1.
The RS232 converter card connects to the IMC17 using the DB-9 cable that is
provided to you. Opposite the DB-9 cable is a 3-Pin connector which is placed
onto the converter card.
2.
Your power supply will be connected to the RS232 card where the green
header is located. + is for +12-40VDC, - is for the Power Supply
Ground. The IMC17 must also be powered via Pin 1 (red wire for
Power) and Pin 6 (Green for Ground).
3.
Connect the RS232 card to your PC with a male to female DB-9 cable.
4. Turn your power supply on and follow instructions for using HyperTerminal.
