Guideline Explanation/comment
When possible, locate the pump below the fluid
level.
This facilitates priming, ensures a steady flow of liquid, and
provides a positive suction head on the pump.
Foundation requirements
Requirements
• The foundation must be able to absorb any type of vibration and form a permanent,
rigid support for the unit.
• The foundation must weigh at least 2-1/2 times the weight of the pump unit.
• Provide a flat, substantial concrete foundation in order to prevent strain and distortion
when you tighten the foundation bolts.
• Sleeve-type and J-type foundation bolts are most commonly used. Both designs allow
movement for the final bolt adjustment.
• Anchor bolts are preferred installed vertically, but when expansion type or chemically
set anchors are installed at an angle through the base mounting holes, beveled
washers with matching angles shall be used under the anchor bolt nuts.
• Tie the concrete pad in with the finished floor.
• Use foundation bolts and larger pipe sleeves to give room for final bolt location.

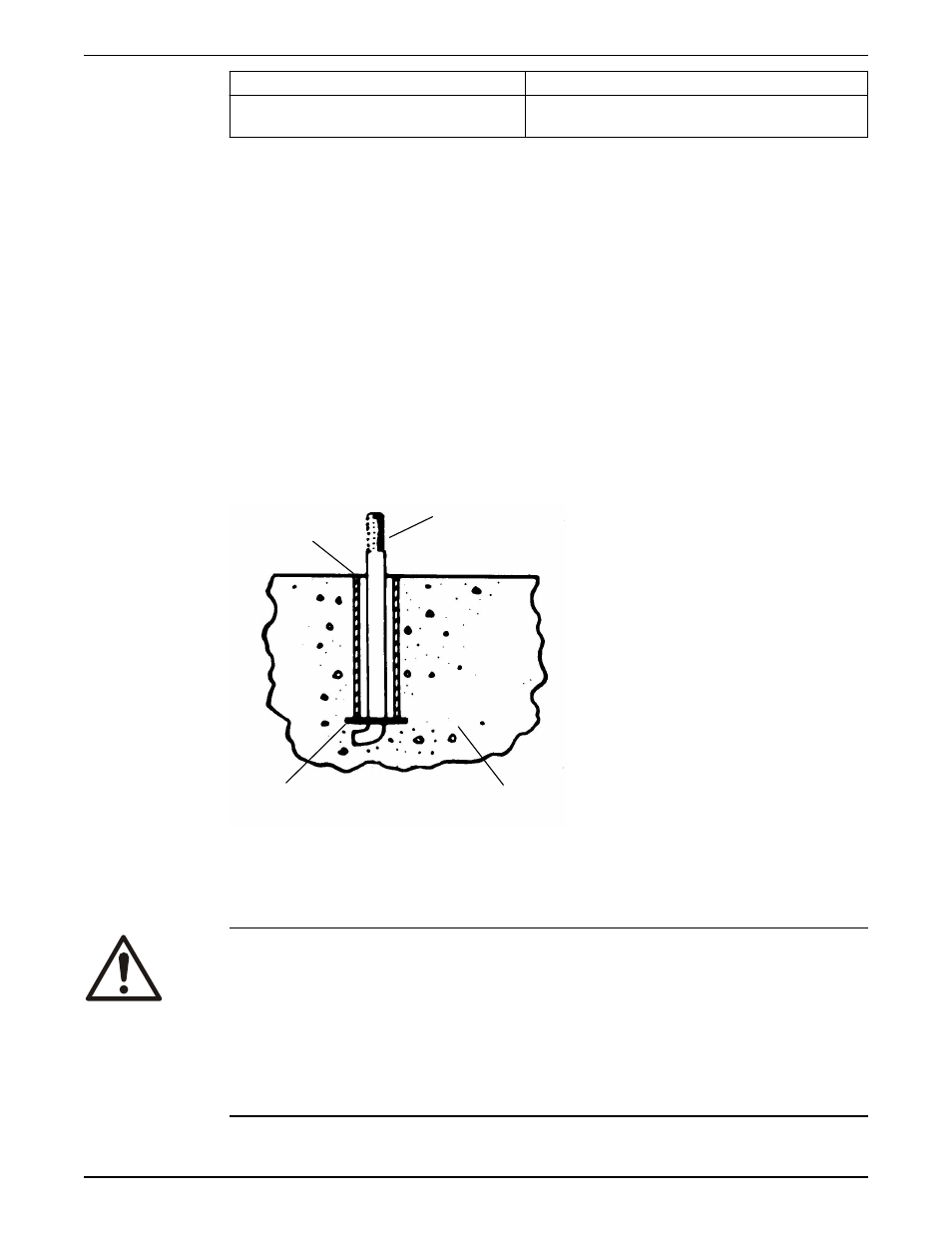

Diagram
• Allow enough bolt length for grout, shims, lower baseplate flange, nuts, and washers.
2
3
1
4
1. Foundation bolt
2. Pipe sleeve
3. Washer
4. Built-up concrete foundation
Piping checklist
WARNING:
• The heating of water and other fluids causes volumetric expansion. The associated
forces can cause the failure of system components and the release of high-
temperature fluids. In order to prevent this, install properly sized and located
compression tanks and pressure-relief valves. Failure to follow these instructions can
result in serious personal injury or death, or property damage.
• Avoid serious personal injury and property damage. Make sure that the flange bolts
are adequately torqued.
• Never force piping to make a connection with a pump.
Installation
Series e-1510 Installation, Operation, and Maintenance Manual 13
