3-2 Communication Errors
When communicating between the monitor and the PC, the following dialog box may appear if the
communication setup is not performed properly:

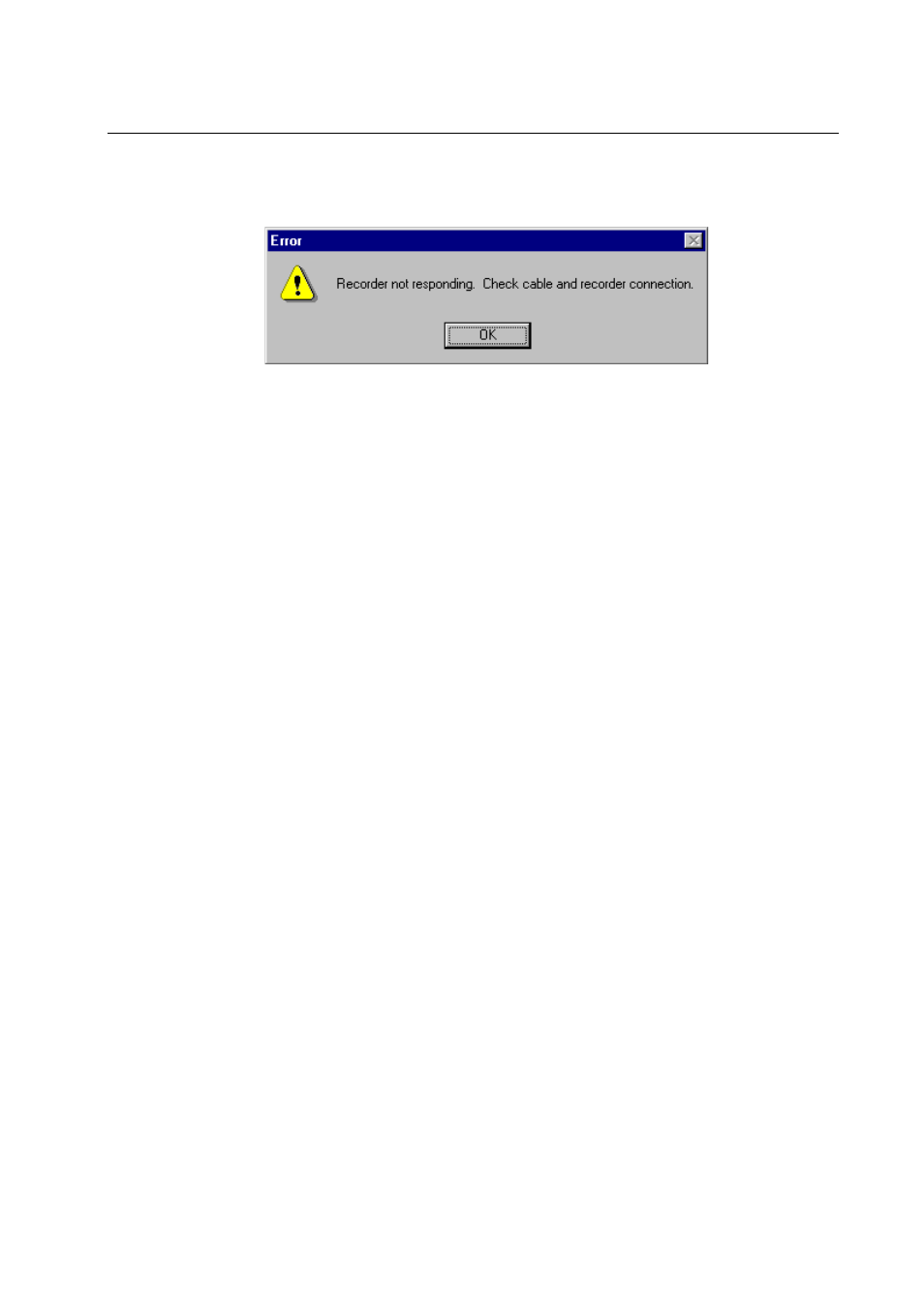

Figure 34: Communications Error dialog box
If this error occurs, complete the steps below:
Step 1
Click the OK button on the Error dialog box.
Step 2
Check the monitor's battery. Recharge the battery if necessary. Or replace with new
batteries.
Step 3
Check the Default Serial Port selection. Make sure it is correct.
Step 4
Check the Default Recorder Type selection. Make sure it is correct.
Step 5
Disconnect the monitor from the processor and reconnect them. (TM-2420/TM-2421)
Disconnect the cable and reconnect it. (TM-2430/UA-767PC)
Step 6
Attempt communication. You may need to go through the process a few times to re-
establish communication.
If the error still persists, complete the steps below:
Step 1
Exit the software.
Step 2
Disconnect the monitor from the processor and reconnect them. (TM-2420/TM-2421)
Disconnect the cable and reconnect it. (TM-2430/UA-767PC)
Step 3
Charge the monitor's battery. (TM-2420/TM-2421 only)
Step 5
Start the software.
Step 6
Check the Default Serial Port selection. Make sure it is correct.
Step 7
Check the Default Recorder Type selection. Make sure it is correct.
Step 8
Attempt communication again.
