2-8-1 Creating a New Report Template

Step 1

Click the New button on the Report dialog box. The Report Setup dialog box will
appear.

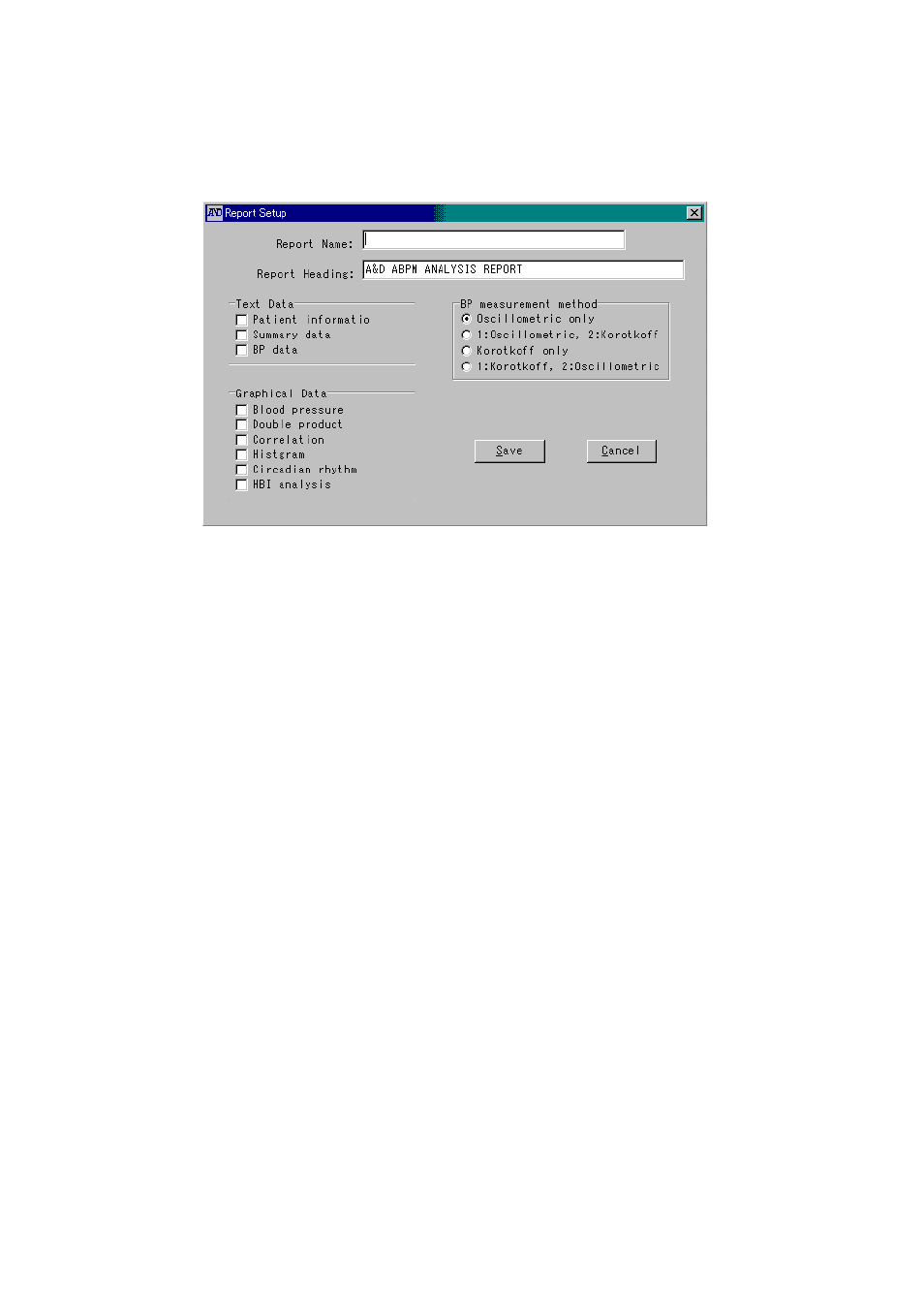

Figure 28: Report setup dialog box

Step 2

Type the Report Name.

Step 3

Edit the Report Heading. This heading will appear on the top of every page along
with the file name and time the file is printed.

Step 4

Select the Text Data you want included in the report by checking the appropriate
boxes.

Note: You may check all or none of these boxes. An unchecked box will not print; a

checked box will print.

Step 5

Select the Graphical Data you want included in the report by checking the
appropriate boxes.

Note: You can check all or none of these boxes. An unchecked box will not print; a

checked box will print.

Step 6

Select the Measurement Method to base the report on by clicking the appropriate
radio button.

Step 7

Save the report template by clicking the Save button.

Step 8

If you do not want to save the report template, click the Cancel button.
