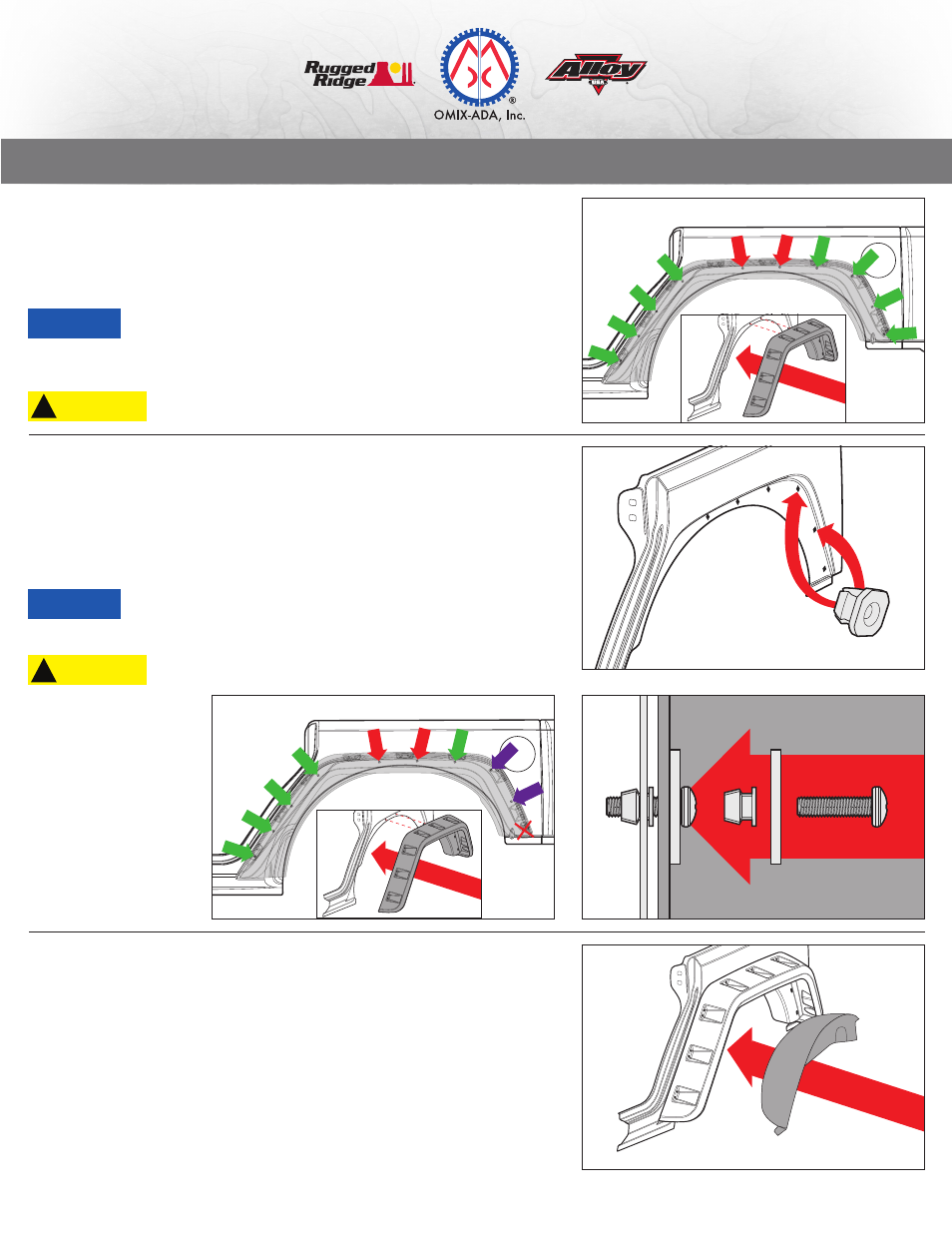

18. Attach and tighten Hurricane flare with M6 flange bolts,
16mm washers and M6 nuts where the

Red Arrows

indicate.

Secure rest of the flare with large push fasteners where

Green

Arrows

indicate.

Skip to Step 20

If 10mm shield retainers don’t go into designated

holes, use a 3/8 drill bit to widen the holes designated by the

Green Arrows

. Paint edge of hole cut to prevent rust.

Cutting/Sharp Edge Hazard: Cut carefully using gloves and

eye protection.

19. Insert nylon nuts in two holes indicated.
Attach Hurricane Flare with M6 flange bolts, 16mm washers and M6 nuts
where

Red Arrows

indicate.

Figure 2 shows how to secure flare with M4 bolts, 20mm washers, and

nylon nuts indicated by

Purple Arrows

found in

Figure 1.

Secure remaining flare with 10mm shield retainers indicated by

Green

Arrows

If 10mm shield retainers don’t go into designated holes, use

a 3/8 drill bit to widen the holes designated by the

Green Arrows

. Paint

edge of hole cut to prevent rust.

Cutting/Sharp Edge Hazard: Cut carefully using gloves and

eye protection.

Page 7/8

Hurricane Flat Fender Flares

PATENT PENDING

11640.10

20. Place rear wheel liner into wheel well.

NOTICE

CAUTION
