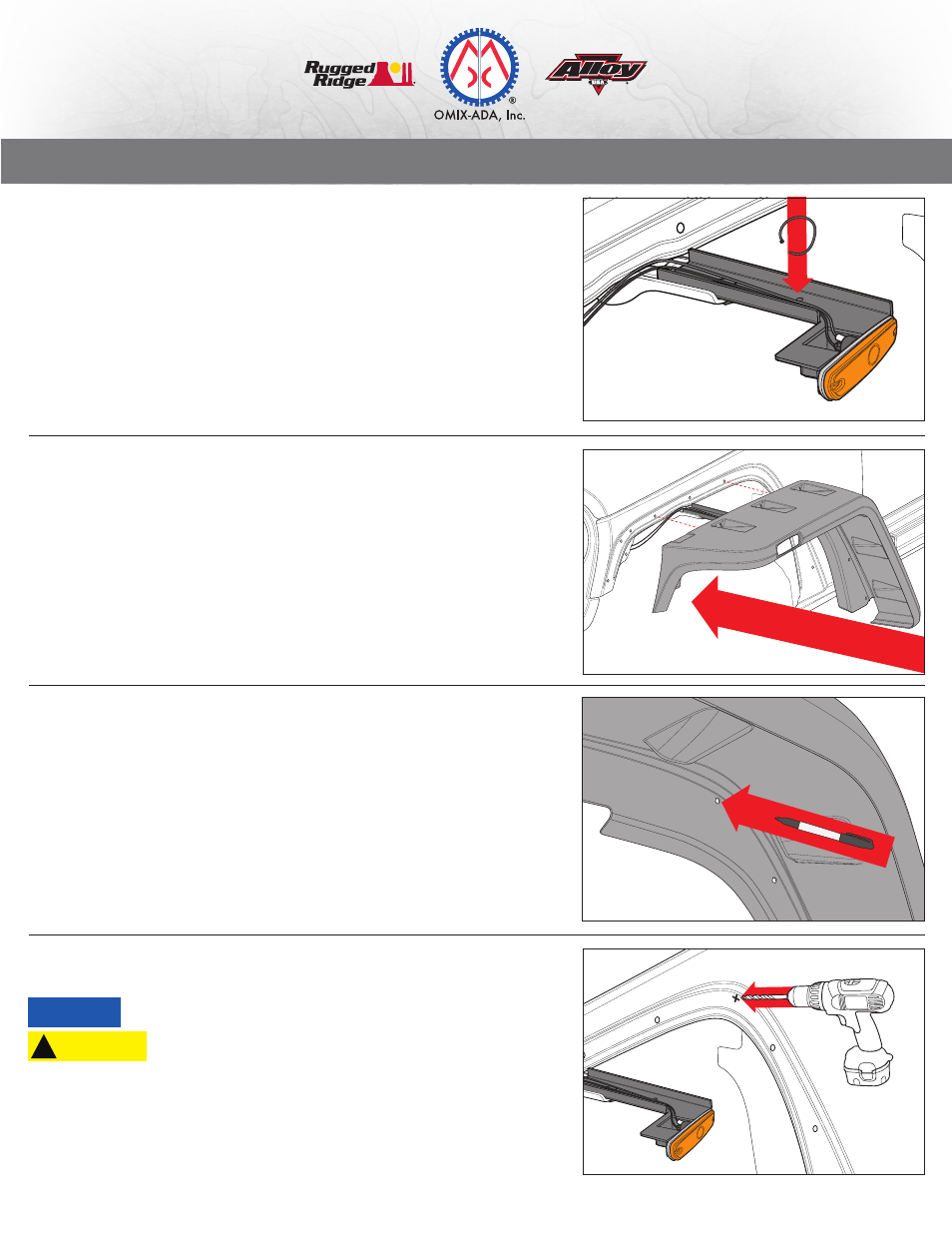

9. Loosely fasten flare to the side of the fender using 2 M6 flange
bolts and M6 nuts.
8. Secure wires to support arm with zip tie.
10. Mark your fender using the hole shown as a guide. Remove
fender flare after fender is marked.
11. Using an 11/32 drill bit, drill into the fender where you
previously marked.
Paint edge of hole cut to prevent rust.
Cutting/Sharp Edge Hazard: Cut carefully using gloves
and eye protection.
Page 4/8
Hurricane Flat Fender Flares
PATENT PENDING
11640.10
NOTICE
CAUTION
!
