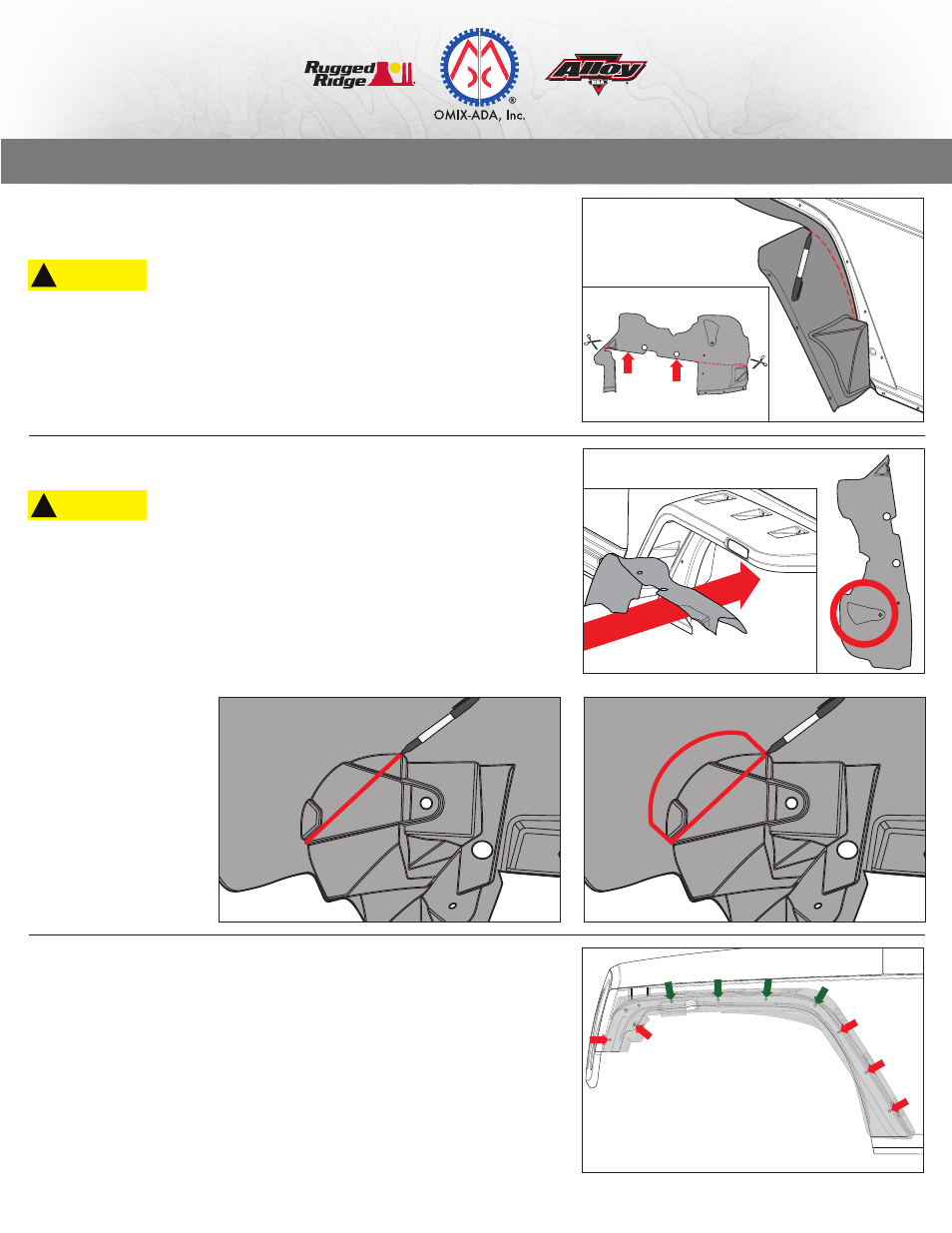

13. If you have a Rugged Ridge Snorkel, mark passenger side
wheel liner where indicated. Carefully cut area marked.
Cutting/Sharp Edge Hazard: Cut carefully using gloves and
eye protection.
12. Attach front wheel liner, mark a line that follows the edge
of the fender. Cut the line marked.
If you do not have a Rugged
Ridge Snorkel skip to Step 14.
Cutting/Sharp Edge Hazard: Cut carefully using gloves and
eye protection.
14. Secure flare with M6 flange bolts, 45mm washers and M6 nuts
where
Green Arrows
indicate.
Secure M6 flange bolts, 16mm washers and M6 nuts where the
Red Arrows
indicate.
Page 5/8
Hurricane Flat Fender Flares
PATENT PENDING
11640.10
CAUTION
!
CAUTION
!
