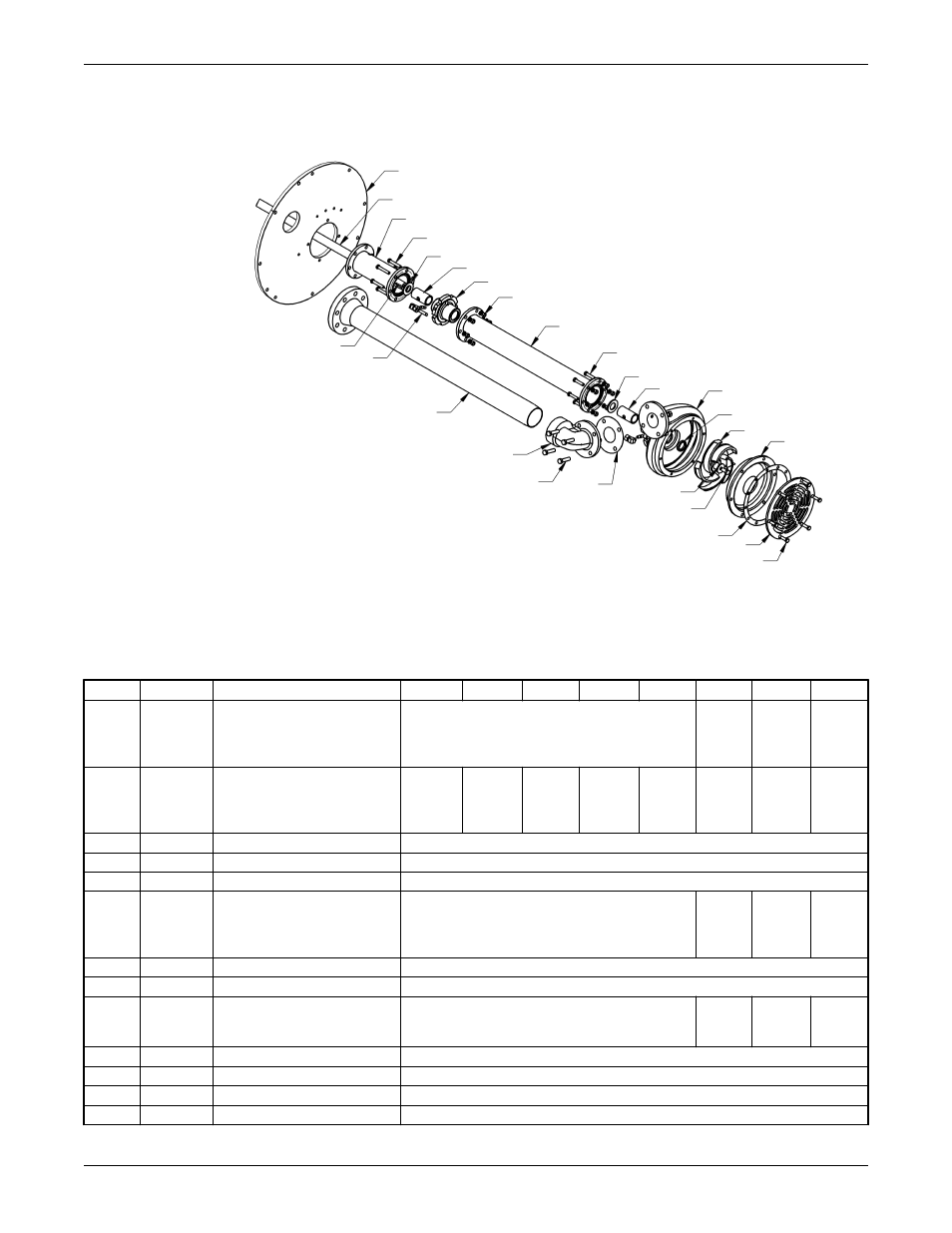

Exploded view B
189
122
192
372B
123
197
213
357X
316
370G
123
197 100
155
101
182
317N
187
351
198
199
351A
370H
315
195
190
178
Parts list
Table 8: Parts list with materials of construction
Item Quantity Part name S-1/S-4 S-3 S-5 S-6 S-8 A-8 D-1 D-2
100 1 Casing A216 WCB (1212)
A743
CF8M
(1203)
A890
Grade
4A
(1360)
A890
Grade
5A
(1361)
101 1 Impeller
A536
65-45-12
(1018)
A436
Type 2
(1007)
A216
WCB
(1212)
A487
CA6NM
(1234)
A743
CF8M
(1203)
A743
CF8M
(1203)
A890
Grade
4A
(1360)
A890
Grade
5A
(1361)
105 1 Lantern ring As specified
106 Set Packing As specified
107 1 Gland 1000 or 1203
108 1
Casing from adapter (L group
only)
A216 WCB (1212)
A743
CF8M
(1203)
A890
Grade
4A
(1360)
A890
Grade
5A
(1361)
112C 2 Thrust bearing Angular contact with machined brass cage
113 1 Grease relief Steel
122 1 Shaft A582 S41600 (2218)
A276
S31600
(2216)
A276
S31803
(2478)
A479
S32750
(3273)
123 1 Deflector Neoprene
134 1 Bearing shell A216 WCB (1212)
136 1 Bearing locknut Steel
155 1 Casing bushing Carbon-filled PTFE (Teflon)
