Goulds Pumps API 3171 - IOM - Manual (Page 33)

123
333H
333H
369
197
213
369
123 Deflector
197 Steady bearings
213 Housing, steady bearings
333H Lip seal
369 Retaining ring, steady bearing

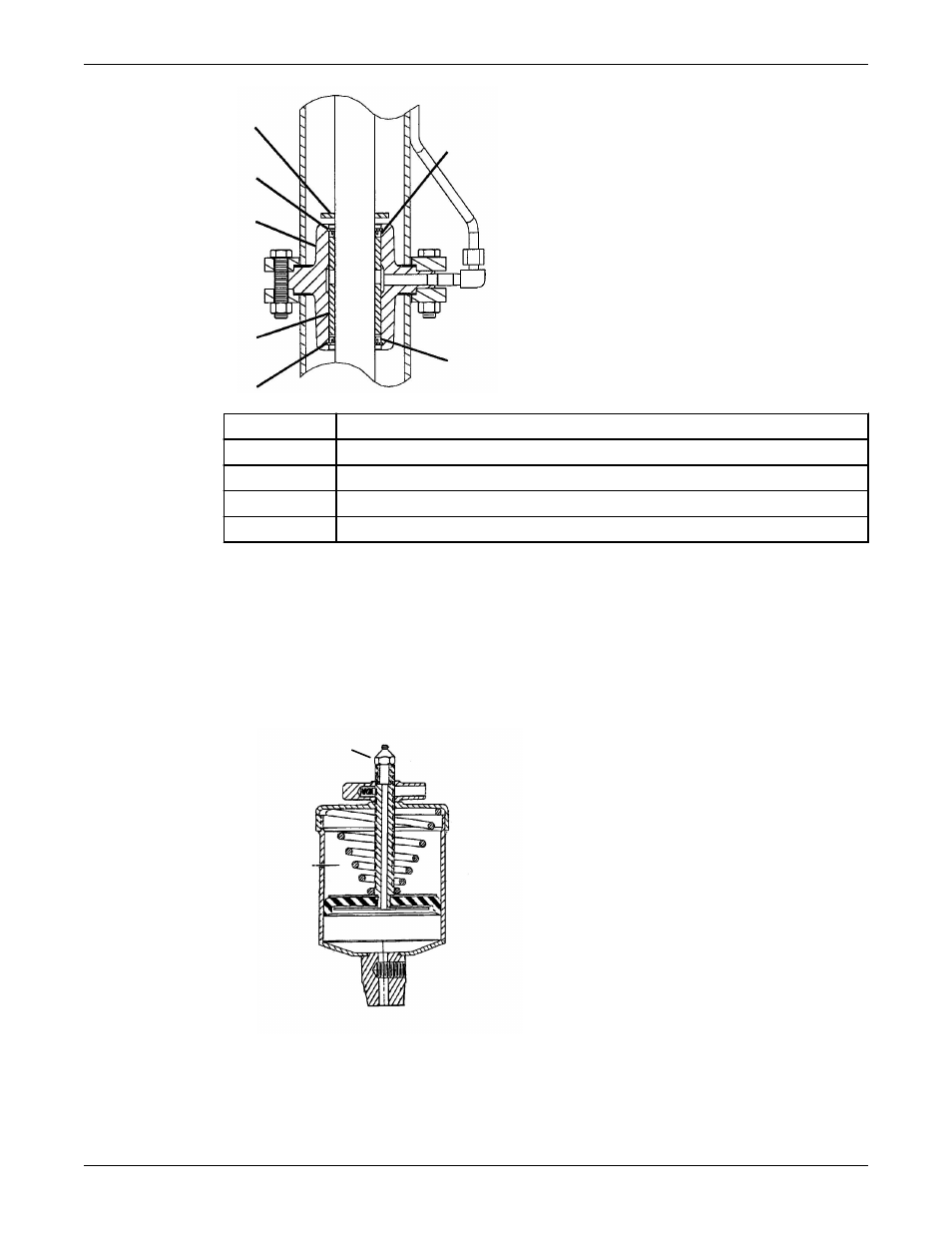

Lubricate the sealed bearings with grease cups
For models with grease-lubricated bearings, the spring-operated automatic grease cups are designed to
maintain constant lubrication of the intermediate pump bearings that are fixed to the vertical pump
housing. The center stem protrudes out of the housing when the cup is full and gradually moves down
into the housing as the grease is used. After the wing nut is threaded against the stem zerk fitting and the
bottom of the wing nut rests on the cap of the grease cup, then the grease reservoir is empty and you must
refill it.
1
2
3
4
1. Zerk fitting
2. Wing nut
3. Grease reservoir
4. Throttling screw
