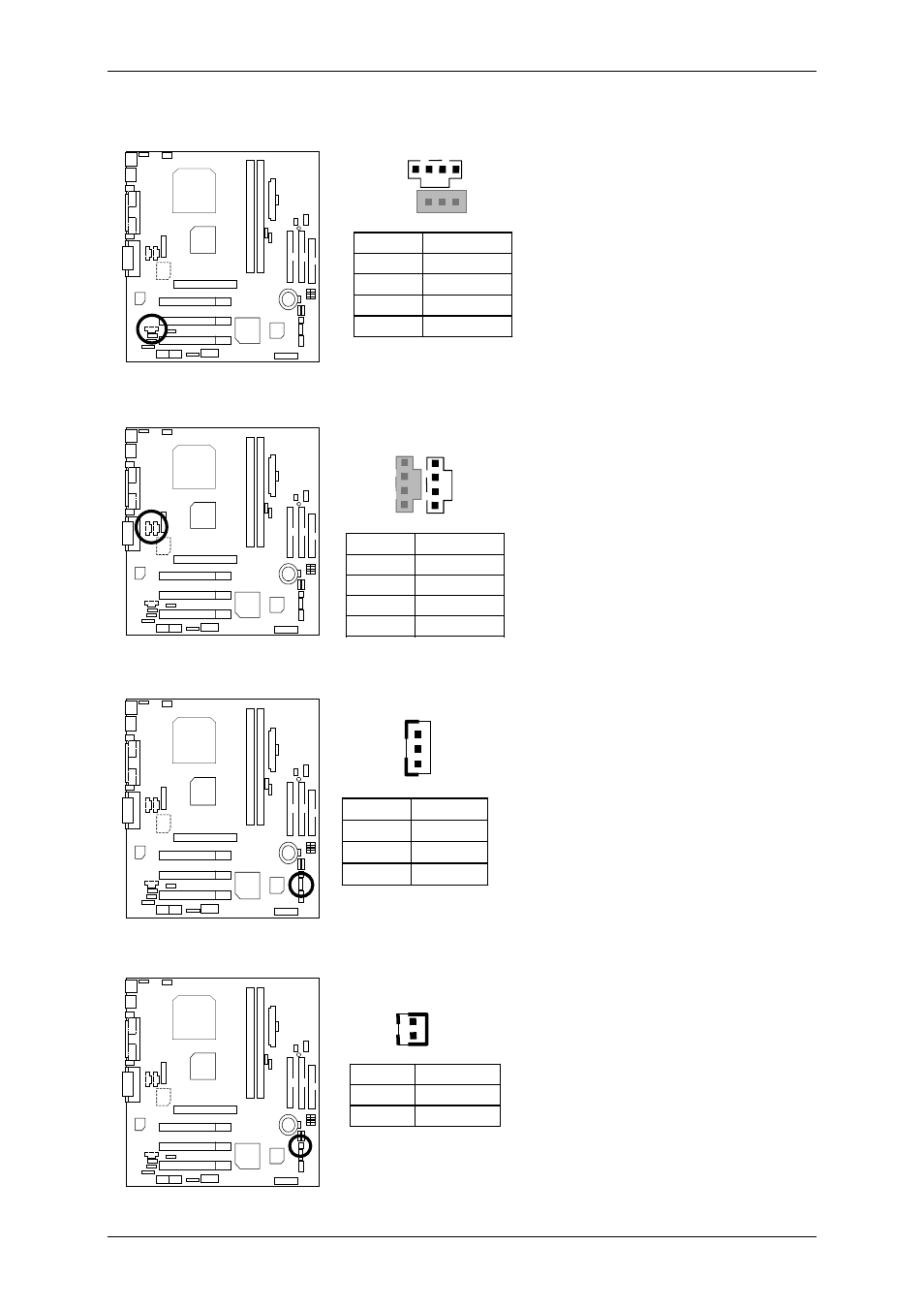

Connectors
6
J8 TEL: The connector is for Modem with internal voice connector
Pin No. Definition
1 Signal-In
2 GND
3 GND
4 Signal-Out
1
J9: CD Audio Line In
Pin No. Definition
1 CD-L
2 GND
3 GND
4 CD-R
1
J12: Wake On LAN
Pin No. Definition
1 +5V
SB
2 GND
3 Signal
1
J13: Ring Power On (Internal Modem Card Wake Up)
Pin No. Definition
1 Signal
2 GND
1
