Team Associated RC8.2 - Manual (Page 26)

26

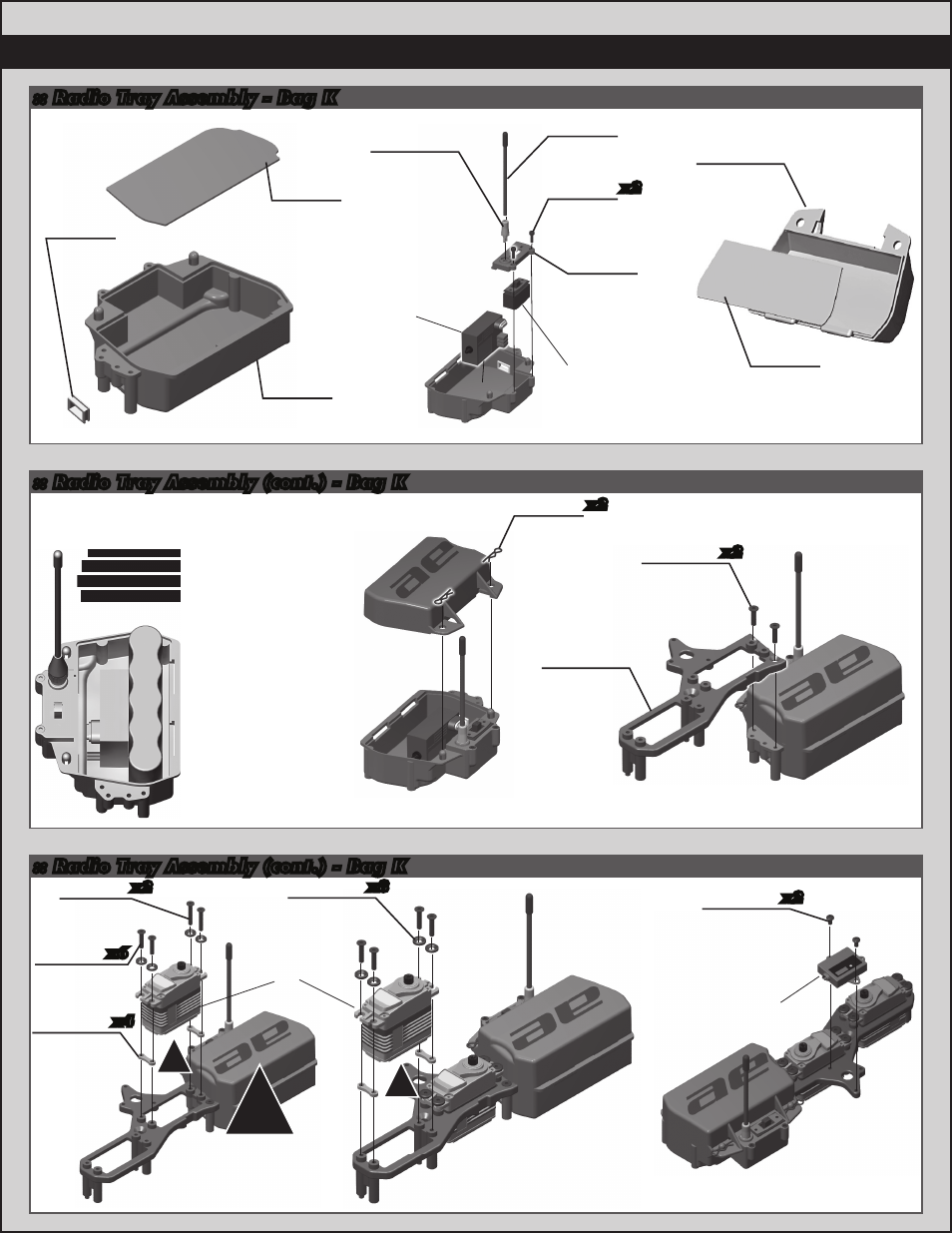

:: Radio Tray Assembly - Bag K
:: Radio Tray Assembly (cont.) - Bag K
:: Radio Tray Assembly (cont.) - Bag K
25203
3x12mm
fhcs
31531
3x6mm
bhcs
89208
3x14mm
fhcs
89209
3x18mm
fhcs
89006
Servo
spacers
89229
Countersunk
washers
(blue)
89253
Radio tray
89253
Antenna
mount
89222
2.5x8mm
shcs
21173
Small
body clip
89003
Switch
mount
6338
Antenna
tube and cap
89003
Wire
insert
89003
Receiver
box
89004
Receiver
box foam
pad
(bottom)
89004
Receiver
box foam
pad (top)
x2
x2
x2
x2
x6
x2
x4
x8
Servo mounts vary per
servo manufacturer.
Space your servos low
to the chassis without
touching the bottom.
!
!
!
89003
Receiver
box top
On/off switch and
mounting screws
are not inlcluded!
5 cell inline pack
configuration
shown. For
hump pack or
LiPo packs, use
forward battery
box on page 27.
Receiver
not inlcluded!
Transponder
not inlcluded!
Servo’s
not inlcluded!
5 cell inline pac
k
R
eceiv
er
