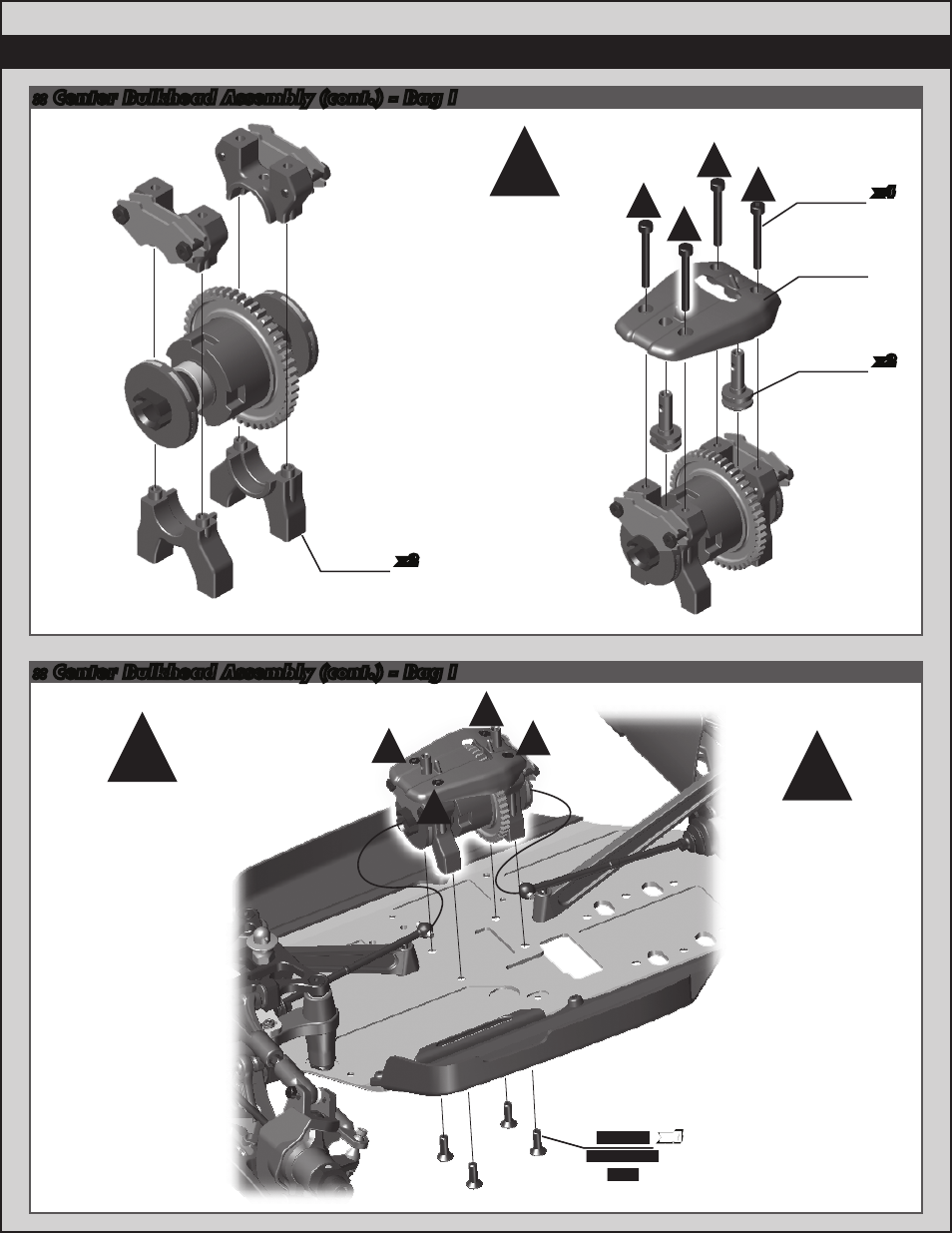

:: Center Bulkhead Assembly (cont.) - Bag I
:: Center Bulkhead Assembly (cont.) - Bag I
x2
x4
x2
x4
Tighten all screws
after bottom screws
have been installed!
Do not tighten
#89226 3x26mm
shcs completely until
the next step!
Install CVA bones
into center diff
outdrives!
!
!
!
89019
Center
bulkhead
(bottom)
89214
4x12mm
fhcs
89124
Brake
cam
89226
3x26mm
shcs
89254
Center
diff top
plate
!
!
!
!
!
!
!
!
