DMXManager User Guide
8603 2 x DMX inputs / 1 x DMX output
8605 3 x DMX inputs / 1 x DMX output
8600 19” rack mount bracket kit
AC Included 115/230VAC power supply, installed
Power Supply: USA & Canada: 9VDC external adaptor
included.
Export: 9VDC 200mA external adaptor
required
Included AC version: 115/230VAC
50/60Hz
Weight: 3 lbs (1.3 kg)
Size: 8 x 1.75 x 6.5” (203 x 44 x 165mm)
Protocols: DMX512 or any RS422 or RS485 based
protocol
Model Description
Specifications
OPERATING MODE S1-1 S1-2
BACKUP ON ON
A signal present on input A will have full control of the output, and any
signal at input B will be ignored. If the A signal is lost, the output will be
controlled by input B. The address switches will offset both inputs.
PILE-ON OFF ON
Signals present at both inputs will have control of the output. The highest
level on any individual device channel on either input will be in control of
the output level. The address switches will offset input B only.
MERGE ON OFF
Input B is appended to input A to create one continuous output consisting
of the total number of device channels on both inputs. The address
switches will offset input B only.
TEST MODES (determined by I/O mode) OFF OFF
Input Test: Receive data LEDs indicate correct data signal (on steady),
faulty or incorrect signal (flashing), or absence of any signal (off).
Output Test: The selected protocol is transmitted and the device channel
assigned by the address switches is set to full or cycled as per switch S1-
8.
I/O MODE S1-3 S1-4
DMX INPUT – DMX OUTPUT ON ON
DMX INPUT – AMX OUTPUT OFF ON
AMX INPUT – AMX OUTPUT ON OFF
AMX INPUT – DMX OUTPUT OFF OFF
STATUS QUO OPTION S1-5
STATUS QUO ENABLED
ON
Output data remains active at last valid levels for 5 min.
STATUS QUO DISABLED OFF
Output data fails 2 seconds after loss of input data
CALIBRATE MODE S1-6
D/A OUTPUT ENABLED ON
Analog output level (5.0V) can be tested at the AMX output (pin 3) using a
DC voltmeter: no other functions are active
D/A OUTPUT CHECK DISABLED OFF
DUAL AMX OUTPUT S1-7
DUAL AMX OUTPUT ENABLED ON
DUAL AMX OUTPUT DISABLED OFF
TEST CYCLE MODE S1-8
TEST CYCLE ENABLED ON
Ramps the selected dimmer up and down continuously between zero and
full when in test mode.
TEST CYCLE DISABLED OFF
The selected dimmer is set to full when in test mode.
DIP SWITCH SETTINGS

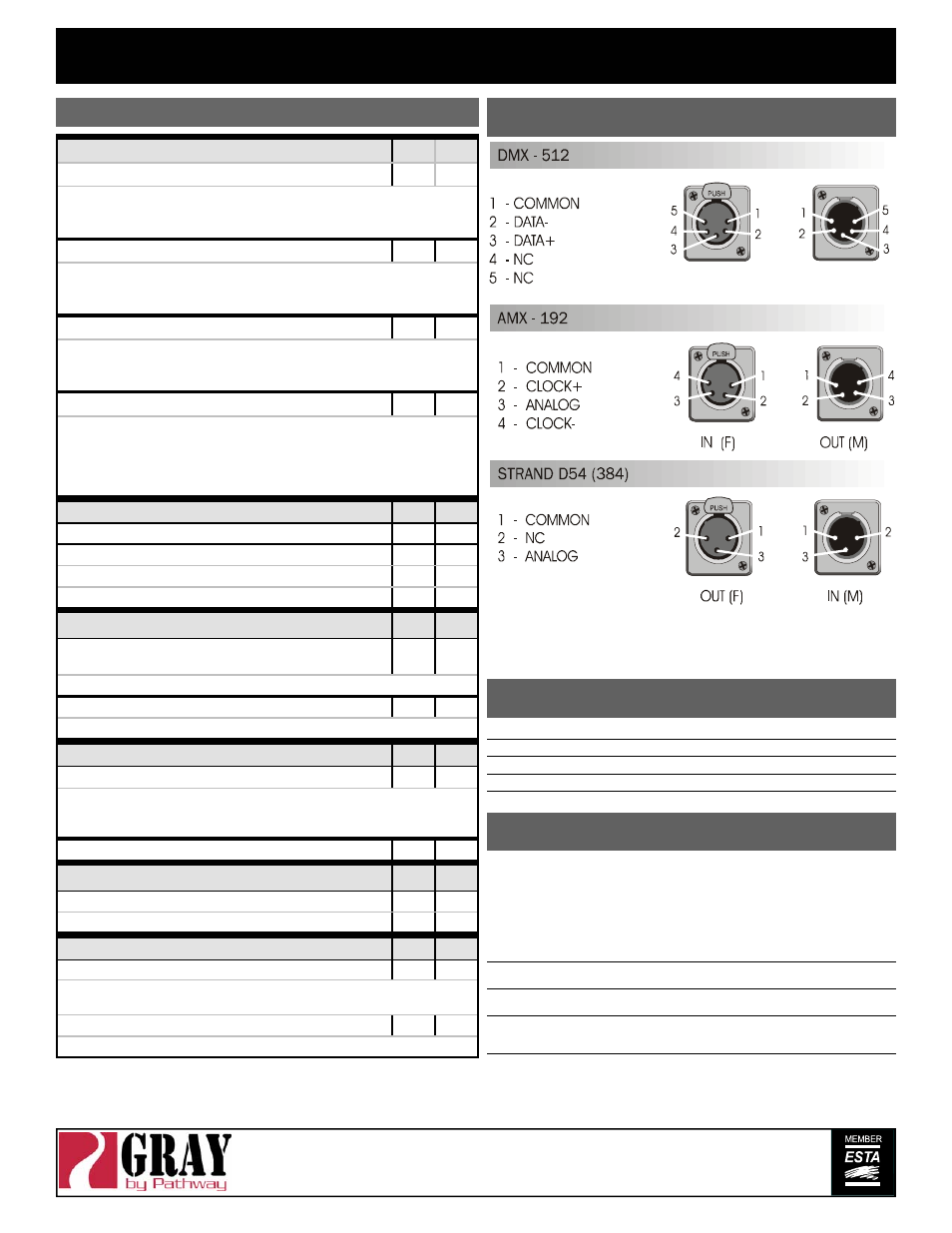

Connector Pinouts
