SYSTEM

DESIGN GUIDE

PATHPORT
NODES
(cont’d)

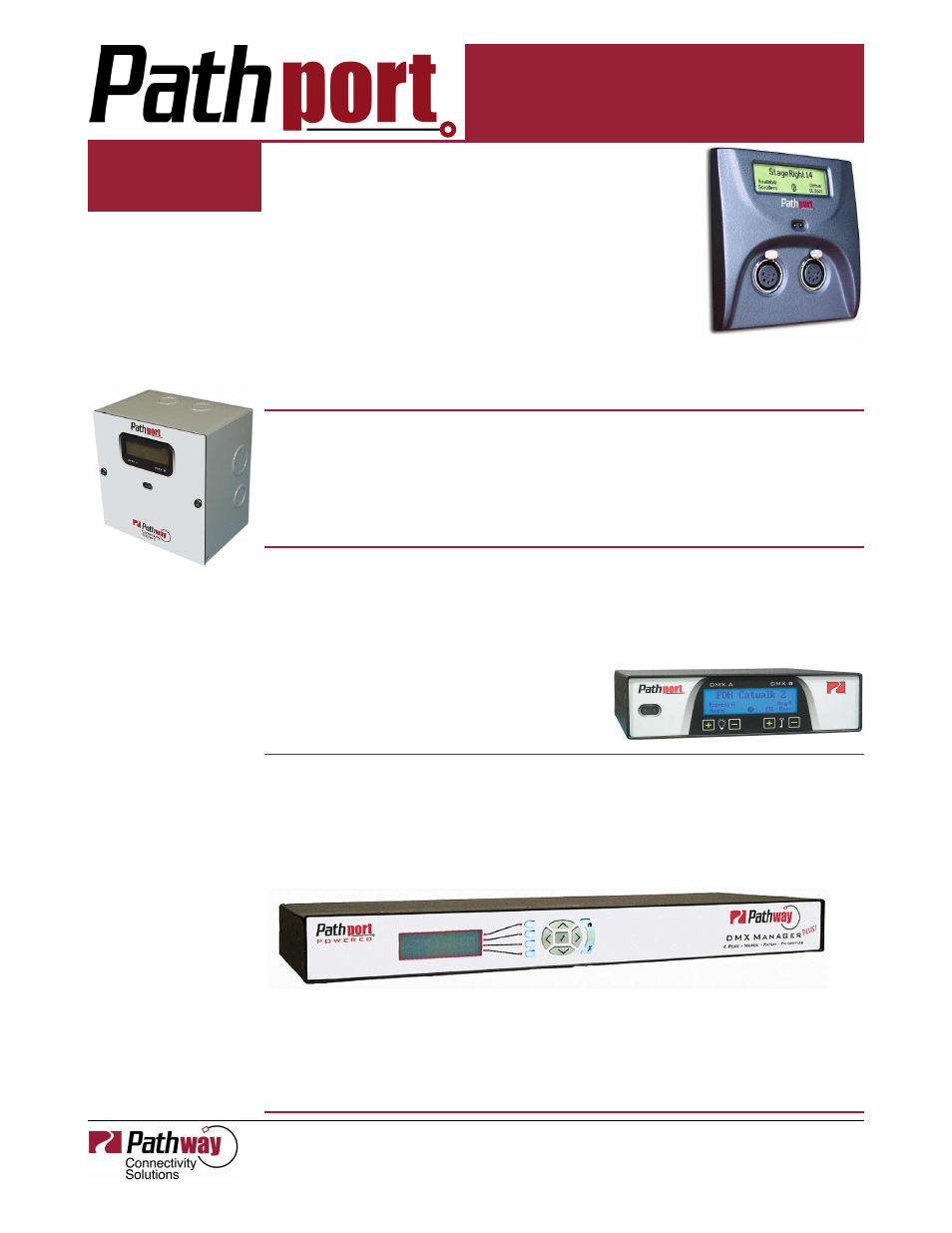

PATHPORT C

PATHPORT C ---- SERIES

SERIES

The most popular 2-port Pathport. Fitting into a 2-gang,

deep masonry box, the C-series provides flush-mounting,
with surface mount or portable boxes as an option.

2-input, 2-output or input/output are available - although

any port can be configured to run in either direction. The
LCD screen reports if DMX is active, and can also display
system-specific labels, such as node location or purpose.

Typically used wherever flush-mount is preferred, at both control and output loca-

tions, the discrete design will not seem out of place in any room.

PATHPORT D

PATHPORT D ---- SERIES

SERIES

A surface-mount enclosure intended for retro-fits next to dimmer racks, or for

installation in utility closets and other controlled access locations. Ethernet and
DMX wiring can be conduit-fed straight to the box and land on integral terminal
blocks inside. Provides two ports of input, output, or one of each.

PATHPORT R

PATHPORT R ---- SERIES

SERIES

The R-series provides 2 ports in a rack-mountable form. Two Pathport R nodes

will fit side-by side within one RU of rack space making for compact installation.
Rack ears are included.

Available with XLR5 or terminal block connec-

tors, with a front connector adapters as an ac-
cessory. Truss yoke also available.

DMX MANAGER PLUS

The DMX Manager Plus is a full-featured 4-port DMX router - ideal as a gateway

on or off of an Ethernet backbone. It also can act as a stand-alone DMX merger,
prioritizer, and signal router. All features can be configured from the front panel or
by using Pathport Manager software.

Each port has both a male and female connector with the unused connector avail-

able as a pass through. An integrated Ethernet switch allows multiple boxes to
chained together. The Manager Plus takes up one RU of space and ships with rack
ears. The universal power supply accepts voltages between 85 and 240 VAC. The
Manager Plus does not support Net2.
