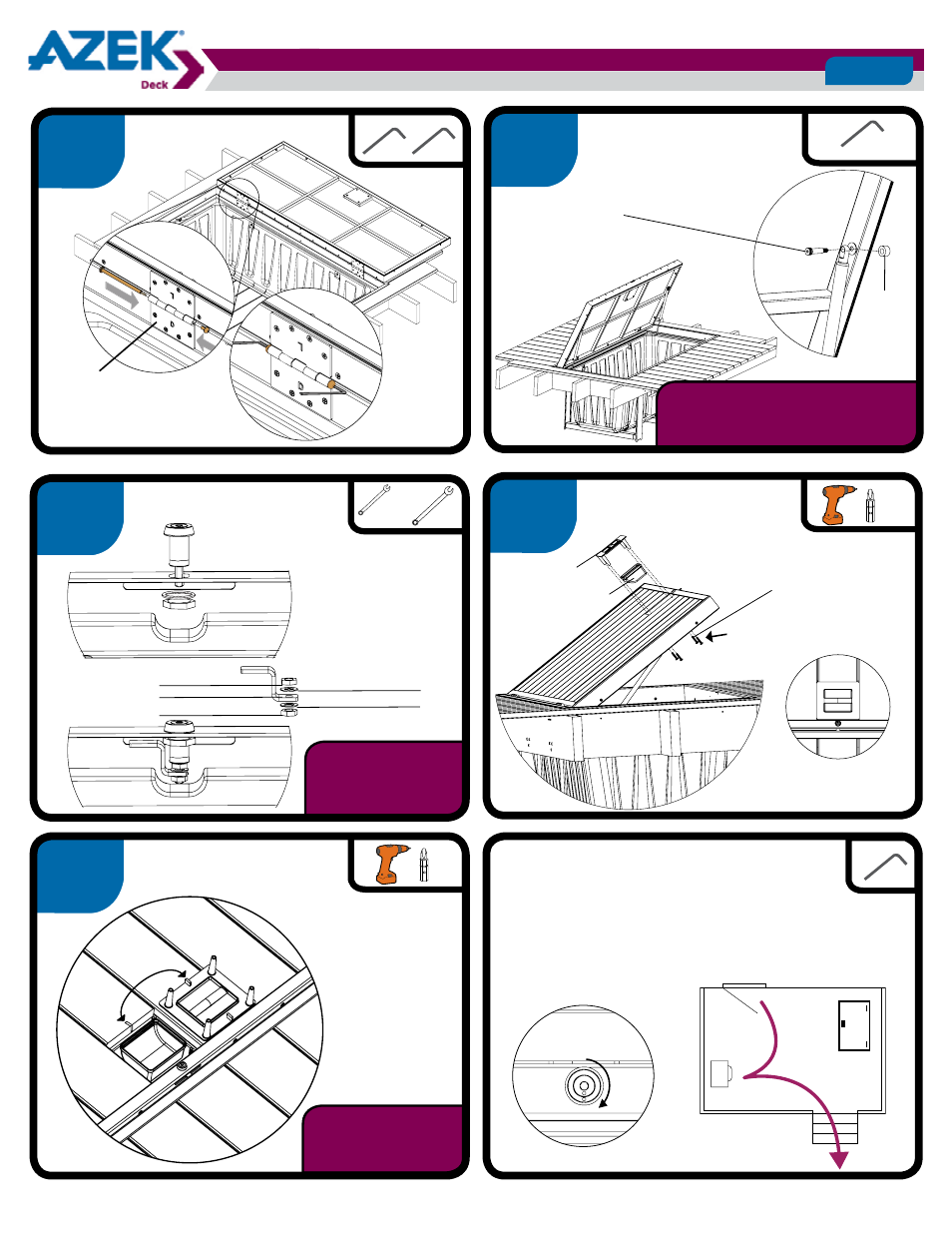

AZEK InDeck - Manual (Page 4)

10b
Assemble Pin
1. Align hinges
and insert pins.
2. Tighten with
1/8” allen keys.
1/8” 1/8”
Spacer must be installed
between gas spring and lid to
make sure the gas spring is plumb.
11 a
Assemble Gas
Springs to Lid
Shoulder Screws x 7/8” L with 5/32”
Hex Head (x2)
Spacers
(x2)
5/32
12 a
Assemble Handle
Handle lines up
with lid frame but
does not sit under.
1/4-20 x 1 1/4”Pan
Head Machine
Screw (x4)
Tighten Front 2
Machine Screws First!
Handle
(x1) Handle
Holder
(x1)
Turn nuts 4 & 8 to
adjust pawl height
so it fits through
slot.
11 b
Latch Install Detail
1. Install Main Lock
2. Large Washer
3. Large Nut
4. Little Nut
5. Washer
6. Pawl
7. Washer
8. Nut
10mm 3/4”
1
3
2
4
6
8
5
7
Notch in handle
aligns with notch
on deck board.
12 b
Notch Details*
House Door
Grill
In Deck
Storage
WARNING!
In order to avoid tripping due to raised hinge knuckles
and lock reveal, it is a safe practice to install the
In-Deck Storage unit away from heavily used traffic patterns.
WARNING!
When not using In Deck Storage, keep it locked using the 1/8”
Allen Wrench in order to prevent children or others from falling,
hiding or becoming enclosed within the unit.
‘Locked condition’ of compression lock.
#3
#3
IN-DECK STORAGE INSTALLATION GUIDELINES for
Arbor Collection ‰ / Harvest Collection / Terra Collection ‰ Page 4
© 2011 All rights reserved. AZEK Building Products, Inc. www.AZEK.com
1/8”
