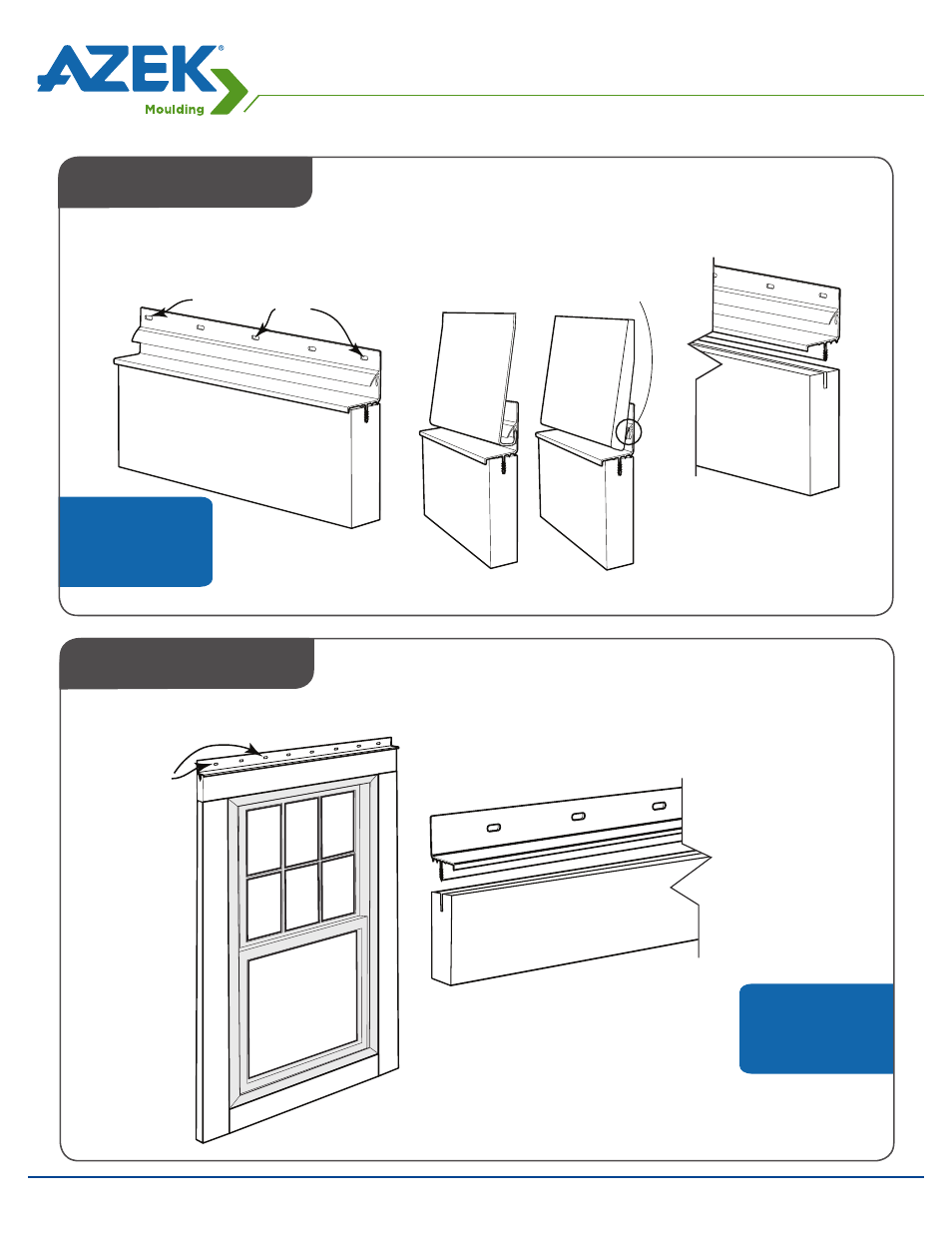

UNIVERSAL
SKIRT BOARD
Cement
Board Siding
Be sure cement board siding
compresses the integrated rubber
gasket
This is a two part product. Choose trim finish by facing either Traditional or Frontier out. Insert Universal Skirt Board interface via
press fit. Once inserted, USB interface cannot be removed.
Vinyl Siding
SIZES
Trimboard
• 5/4 x 6, 5/4 x 8 and 5/4 x 10
in 18’ lengths
Universal Skirt Board Interface
• 1 1 ⁄
2
” nailing flange
• 1 ⁄
4
” drip edge overhang
IMPORTANT: Flash according to water barrier
manufacturer guidelines. Use common accepted
building practices to prevent water infiltration.
Fasten using nail (minimum 1 1/2” long
with minimum of 5/16” head) in every
other hole
Fasten trimboard according to standard
AZEK Trim guidelines.
Keep pieces
together while
measuring and
cutting for a more
accurate fit
INTEGRATED
DRIP EDGE
This is a two part product. Choose trim finish by facing either
Traditional or Frontier out. Insert Integrated Drip Edge interface
via press fit. Once inserted, IDE interface cannot be removed.
Windows to be
installed per
manufacturers
recommendations
SIZES
Trimboard
• 5/4 x 4 and 5/4 x 6 in 18’ lengths
Integrated Drip Edge Interface
• 1 1
⁄4” nailing flange
• 1 ⁄8” drip edge overhang
Fasten using nail
(minimum 1 1/2”
long with
minimum of 5/16”
head) in every
other hole
IMPORTANT: Flash according to water barrier
manufacturer guidelines. Use common accepted
building practices to prevent water infiltration.
Fasten trimboard according to
standard AZEK Trim guidelines.
Keep pieces
together while
measuring and
cutting for a more
accurate fit
Installation Guidelines for AZEK Trim and AZEK Moulding
