Vaddio ZoomSHOT WallVIEW SR User Manual
Page 8
Zoom SHOT WallVIEW SR
ZoomSHOT WallVIEW SR System Document Number 342-0651 Rev B
Page 8 of 16

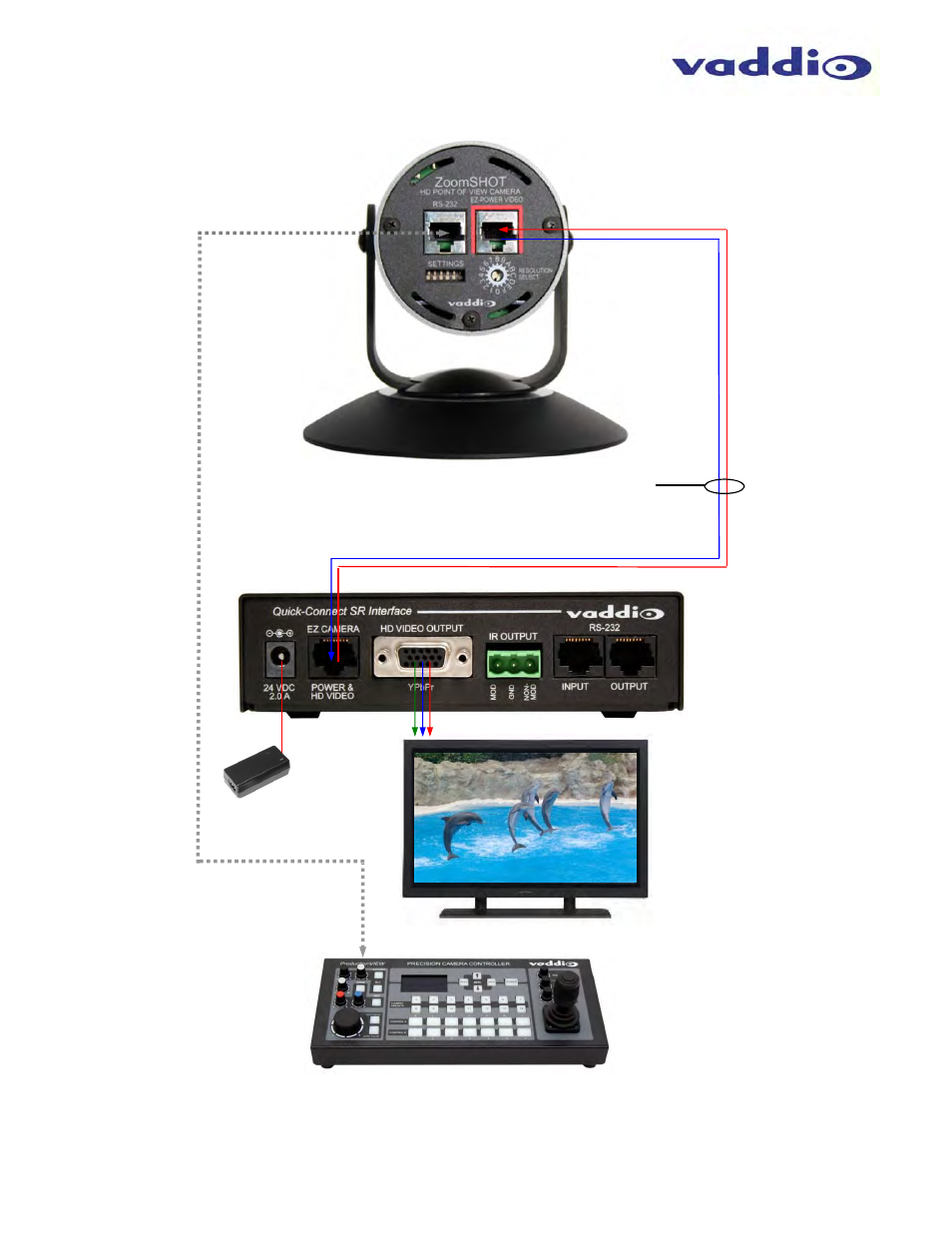

Image: Basic Wiring Configuration
RS-232 & IR
OUT Cat-5
For Zoom &
CCU Control
Rear Panel
Quick-Connect SR Interface
HSDS (differential) HD Video &
24 VDC Power One (1) Cat-5 Cable
YPbPr
24VDC, 2.0 A
PowerRite Power
Supply
HD Monitor
(Simulated HD Video Feed)
ProductionVIEW Precision Camera Controller
Note: RS-232 Control can be run through the RS-232
IN and OUT of the Quick-Connect SR Interface and is
required for use with IR Forwarding.
←
YPbPr (HSDS differential)
Power
→
ZoomSHOT
Rear View
