WideSHOT WallVIEW Mini
WideSHOT WallVIEW Mini, Document Number 342-0710 Rev B Page 8 of 32
IR SHOT C OMMANDER R EMOTE :
The Vaddio IR SHOT Commander, designed to work with the Vaddio ZoomSHOT and WideSHOT camera
systems, is compatible with all the Vaddio PTZ cameras. The Vaddio IR SHOT Commander is compatible with
the following Vaddio camera packages: All ZoomSHOT and WideSHOT Camera Systems are shipped with this
IR remote.

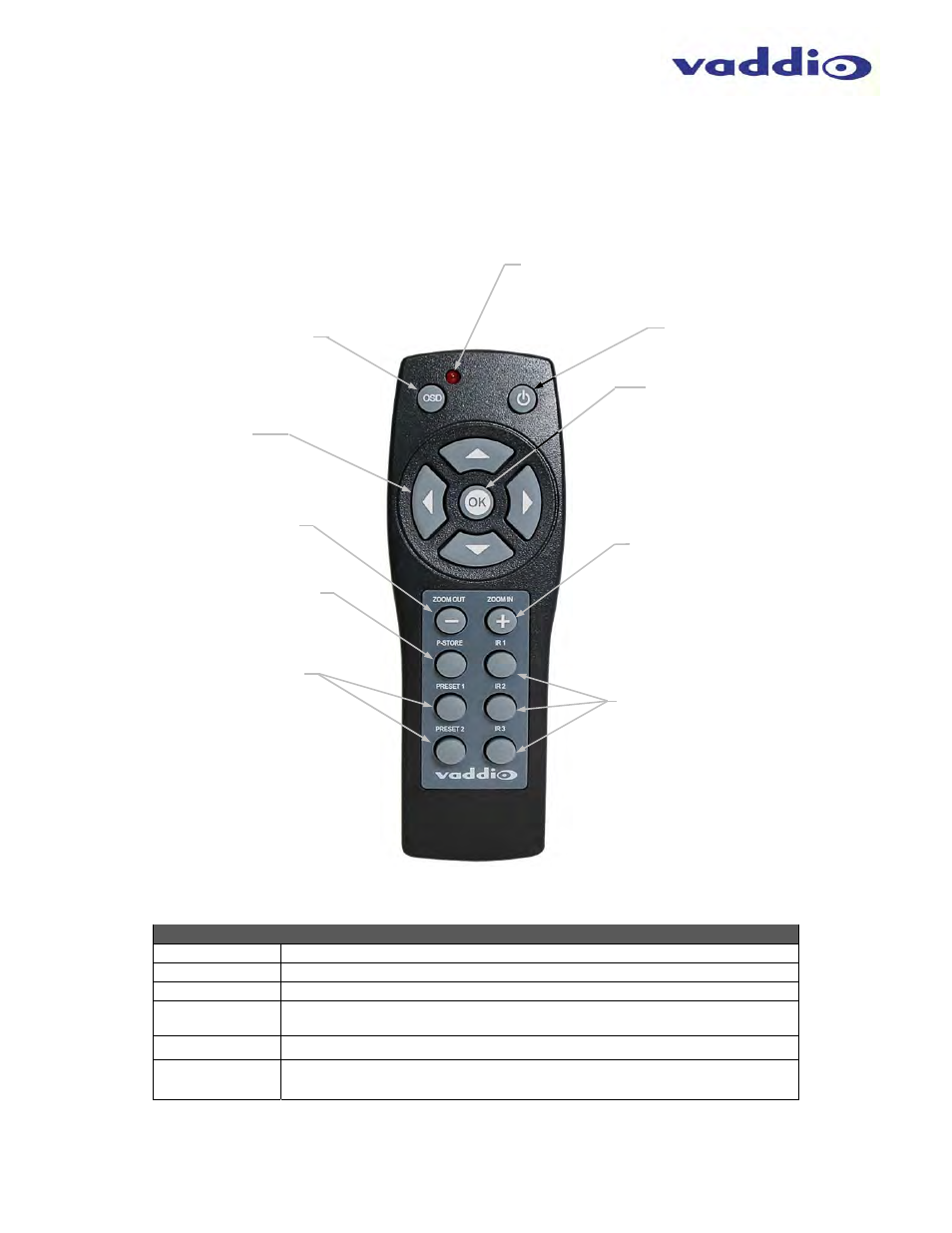

Image: Vaddio IR SHOT Commander Hand-held IR Remote
(Top View)
ZOOM OUT ZOOM I
P-STORE IR 1
PRESET 1
IR SHOT Commander - Quick Specs
IR Range 20’ to 30’ (6m to 9m)
Batteries 2 x AAA (Batteries not shipped internationally)
Keys (buttons) 15 Silicone Rubber Keys
Dimensions
L x W x H 4.53” (115mm) x 1.57” (40mm) x 1.1” (28mm)
LED Indicator Red LED illuminates when transmitting IR, brightness indicates battery strength
Compatible
Cameras Ships with ZoomSHOT and WideSHOT. Compatible with all Vaddio HD PTZ
cameras (limited function set) and most Sony BRC & EVI cameras.
Power On/Off
Camera Standby
OSD On Screen Display Menu
Arrow Keys X 4
 Pan Left, Pan Right,
 Tilt Up, Tilt Down
 Menu Navigation
OK, Enter, Select and
Camera Home
Zoom Camera IN (telephoto)
Zoom Camera OUT (wide)
Recalls ZoomSHOT Preset 1
or Preset 2 (zoom position)
*WideSHOT uses a manual lens Select IR Frequencies (3)
Allows up to 3 cameras to
be controlled in a room with
one (1) IR Remote
Note: Camera dip switches
set IR frequency.
Preset Button - Setting Presets
 Move the camera into position
 Push and hold P-STORE button
 Touch buttons 1 or 2 to set Preset
Red LED indicates IR transmission and
the brightness indicates battery strength
