Vaddio WallVIEW PRO H900 User Manual
Page 14

Quick-Connect PRO for the BRC-H900 Camera
© 2013 Vaddio - All Rights Reserved. Document Number 342-0506 Rev A
Page 14 of 16
EZCamera Interface Module Pin-outs (continued)
DB-25 Connector
Pins Signal
1 GND
Out
14
RXD Out
2 TXD
Out
15
DTR Out
3 DSR
Out
16
GND IN
4 TXD
IN
17
RXD IN
5 DTR
IN
18
DSR IN
6 IR
19
GND
7 GND
20
CVBS/PR
8 GND
21
C/PB
9 GND
22
Y/Y
10 GND
23
GND
11 GND
24
12V
12 12V
25
12V
13 12V

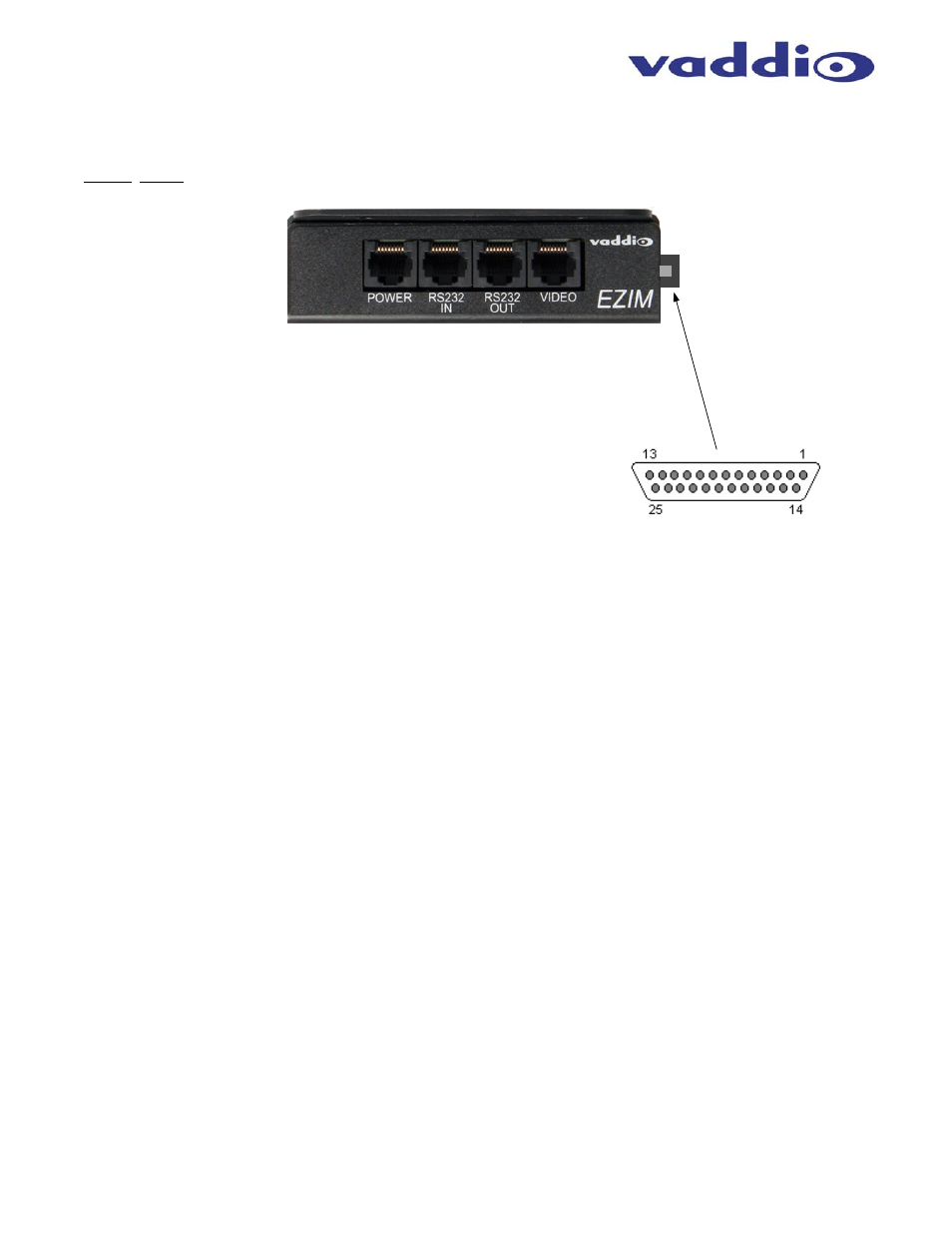

DB-25 on
End Panel of
EZIM
