Quick-Connect PRO for the BRC-H900 Camera
© 2013 Vaddio - All Rights Reserved. Document Number 342-0506 Rev A Page 13 of 16

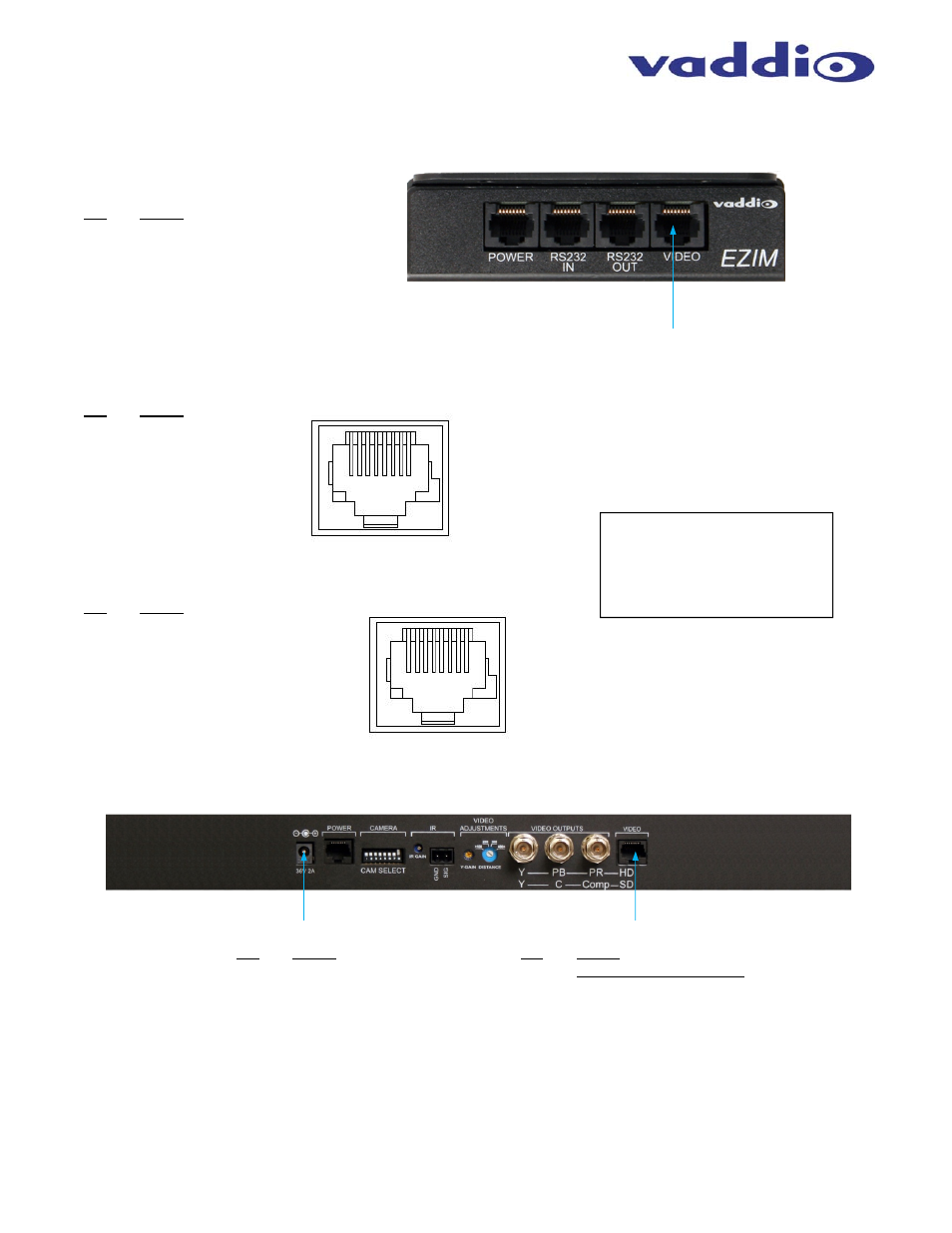

Appendix 1: Cable Pin-outs for the WallVIEW PRO Systems
EZCamera Interface Module Pin-outs
Power Connector
Pin Signal
1 Power
+
2 Power -
3 Power +
4 Power -
5 Power +
6 Power -
7 Power +
8 Power -
RS-232 IN Connector
Pin Signal
1) Unused
2) Unused
3) Unused
4) Unused
5) Unused
6) Unused
7) Unused
8) Unused
RS-232 OUT Connector
Pin Signal
1) Unused
2) Unused
3) Unused
4) Unused
5) Unused
6) Unused
7) Unused
8) Unused
Quick-Connect PRO Series Interface Pin-outs
12345678
12345678
RS-232 Note:
The RS-232 OUT connector
is used only with daisy-chain
control configurations.
Power Connector
Pin Signal
1 Power
+
2 Power -
3 Power +
4 Power -
5 Power +
6 Power -
7 Power +
8 Power -
Video Connector HD ONLY
Pin Signal
SD HD
1) N/A N/A
2) N/A N/A
3) N/A Y+
4) N/A PB+
5) N/A PB-
6) N/A Y-
7) N/A PR+
8) N/A PR-
Same HD Pin-outs
as below
