WallVIEW HD-20
WallVIEW HD-20 Manual 342-0179 Rev. C Page 12 of 16

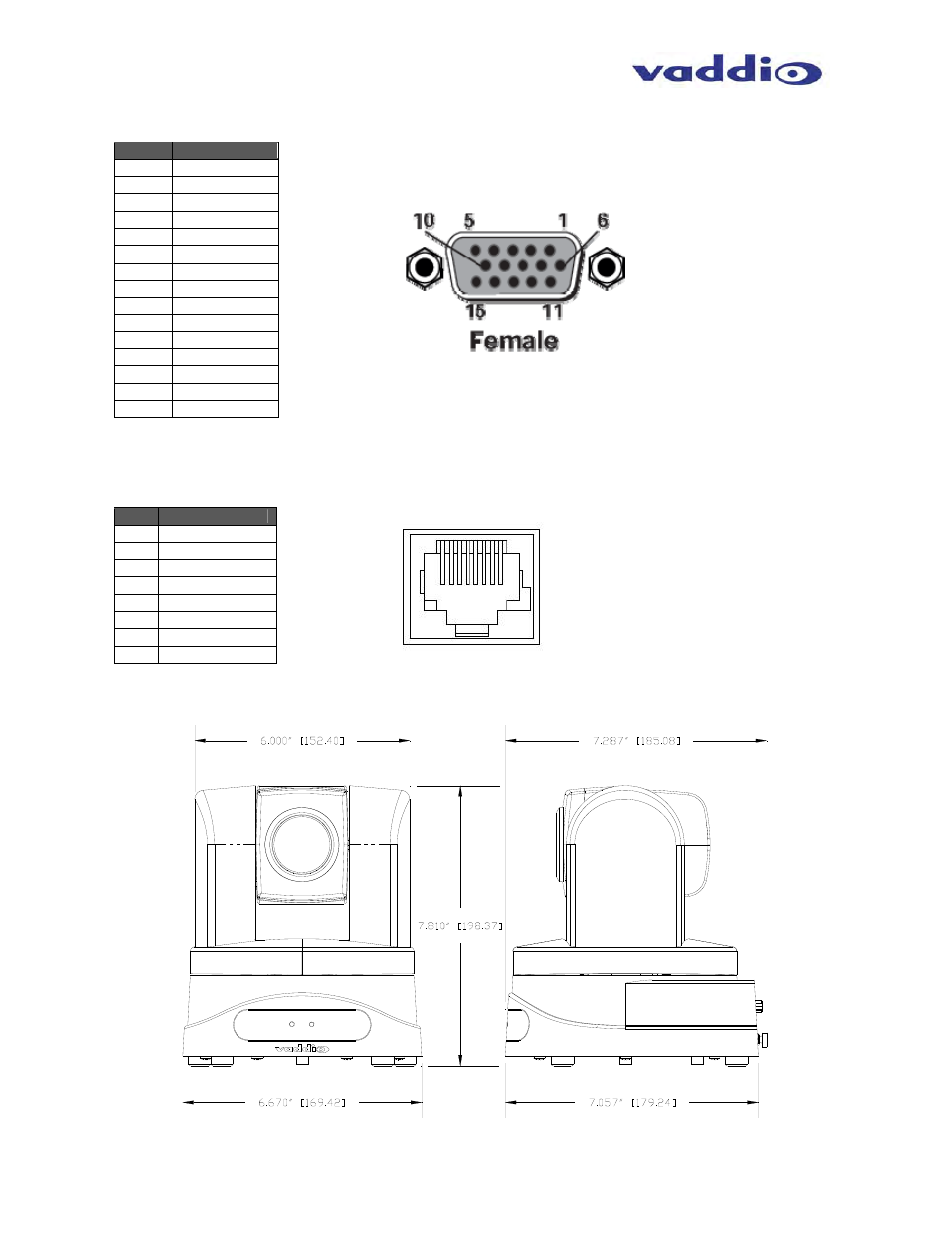

Appendix 1: YPbPr Video Pin-Out for the HD-20 Camera and Quick-Connect SR Interface
 EZCamera
Power & HD Video RJ-45 Connector Pin-outs
The video signals are differential (HSDS) and can only be transmitted by the HD-20 and received by the
Quick-Connect SR Interface
Appendix 2: ClearVIEW HD-20 Dimensions
Pin YPbPr
1 Pr
2 Y
3 Pb
4 -
5 -
6 Pr GND
7 Y GND
8 Pb GND
9 -
10 -
11 -
12 -
13 -
14 -
15 -
Pin Power & YPbPr
1 Power+
2 Power-
3 Y+
4 PB+
5 PB GND
6 Y GND
7 PR+
8 PR-
12345678
