UXHD CrossPoint
UXHD CrossPoint Installation and User Guide 341-929 Rev. A Page 7 of 12
UXHD CrossPoint Menu Structure

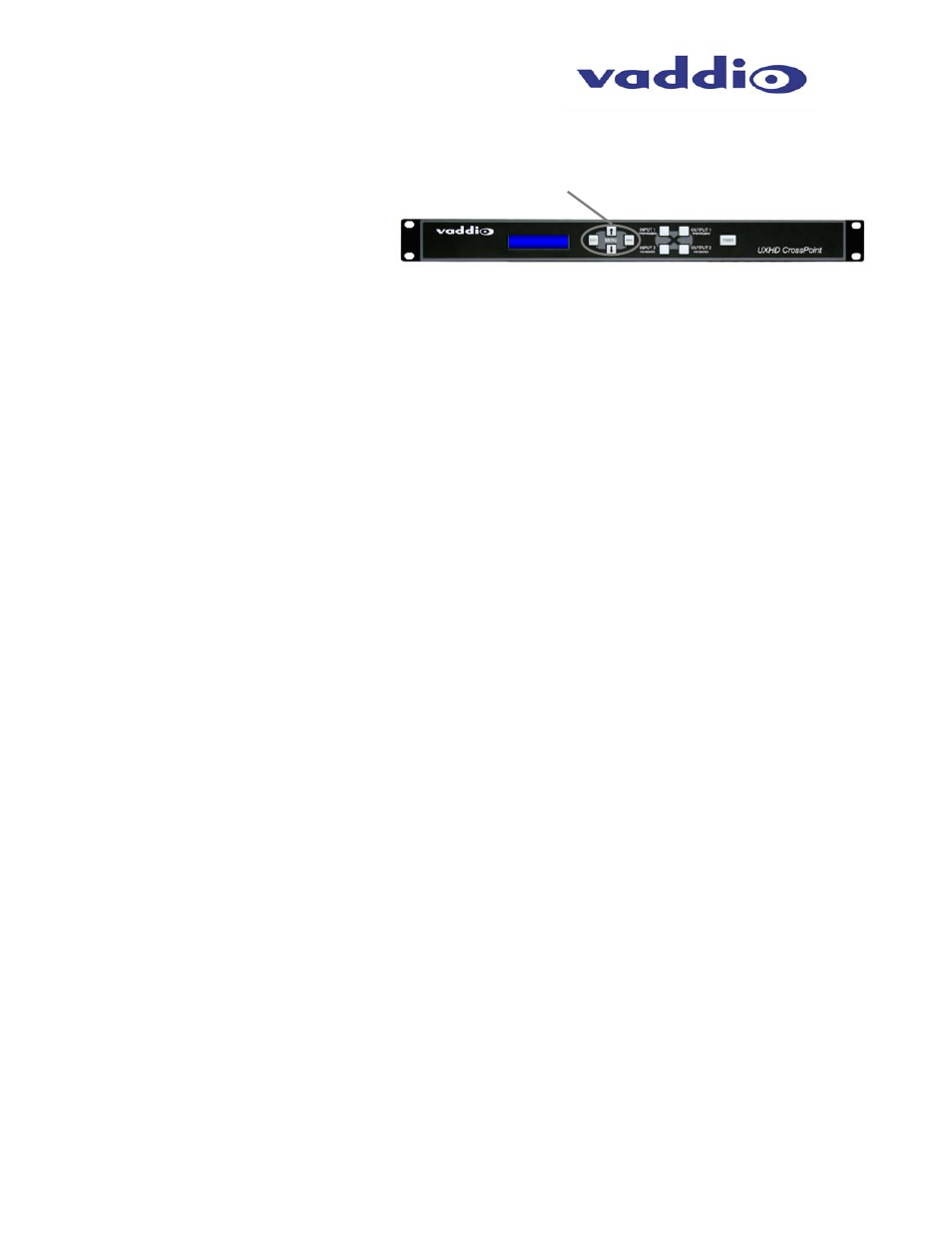

The UXHD CrossPoint has a 2-line LCD that displays the system menu. To navigate through the menu, use
the up/down arrows, select and cancel buttons. The menu structure is as follows:
1 st Screen UXHD Crosspoint
V01.00.00 (firmware version)
Input 1 Menu
>HD/HV/SD In
>No Input
>HD 1080p/60
>HD 1080p/50
>HD 1080i/59.94
>HD 1080i/50
>HD 720p/59.94
>HD 720p/50
>HV 1600 x 1200/60
>HV 1400 x 1050/60
>HV 1366 x 768/60
>HV 1360 x 768/60
>HV 1280 x 1024/60
>HV 1280 x 800/60
>HV 1280 x 768/60
>HV 1024 x 768/60
>HV 800 x 600/60
>HV 640 x 480/60Hz
>NTSC S-Video
>PAL S-Video
>NTSC Composite
>PAL Composite
>HD/HV/SD Out
>No Output
>HD 1080p/60
>HD 1080p/50
>HD 1080i/59.94
>HD 1080i/50
>HD 720p/59.94
>HD 720p/50
>HV 1920 x 1200/60 (with reduced blanking)
>HV 1600 x 1200/60
>HV 1400 x 1050/60
>HV 1366 x 768/60
>HV 1360 x 768/60
>HV 1280 x 1024/60
>HV 1280 x 800/60
>HV 1280 x 768/60
>HV 1024 x 768/60
>HV 800 x 600/60
>HV 640 x 480/60Hz
>NTSC Composite (Outputs both Y/C and CVBS with adapter cable*)
>PAL Composite (Outputs both Y/C and CVBS with adapter cable*)
(*Adapter Cable 440-5600-000 Required for SD)
>HD-SDI/SDI Out
>No Output
>HD 1080p/60
>HD 1080p/50
>HD 1080p/30
>HD 1080p/25
>HD 1080i/59.94
>HD 1080i/50
>HD 720p/59.94
>HD 720p/50
>SD 480i/29.97
>SD 576i/25
Menu Section
