DomeVIEW HD - 12” Indoor Flush Mount Dome
DomeVIEW HD - 12” Indoor Flush Mount Dome Manual 342-0186 Rev. A Page 4 of 8
Unpacking:
Unpack and identify the following parts for 998-9000-200
DomeVIEW HD - 12” Indoor Flush Mount Dome Enclosure Package includes:
• One (1) Dome Enclosure Assembly with the following parts:
o
One (1) Metal Back Can
o
One (1) Universal Camera Platform
o
One(1) ¾” Clamp Down (Romex) Conduit Connector
o
One (1) Safety Hanger Bracket (fits on conduit connector)
o
Three (3) 2.5” Long 10-32 Threaded F to F .5” Hex Stand-offs (supports the camera platform)
o
Three (3) 10-32 x .5” Pan Head Screws (attach the camera platform to the 2.5” stand-offs)
o
Six (6) #10 Flat Washers(spacers to keep Stand-offs plumb)
• Three (3) .75” Long 10-32 Threaded M to F .5” Hex Stand-off Extensions - Use with HD-20 Camera Only
• Two ¼”-20 x 5/8” Screws (attach HD-18 and HD-19 camera to platform)
• Two ¼”-20 x .3/8” Screws (attach HD-20 camera to platform) - do not use 5/8” Screws on HD-20
• 12” Clear Dome with Three (3) Stainless Steel Screws Attached
• One (1) Spin-formed White Trim Ring
• Two (2) Two white screws for Trim Ring
• One (1) One-Piece Heavy Duty Tile Support Brace
• Four (4) 10-32 x 1” Pan Head Screws attach Metal Back Can to Tile Support Brace
Other things that are needed for system completion:
• One (1) Vaddio HD-20, HD-19 or HD-18 PTZ Camera Package
Note: Not all Accessories apply to the Flush Mount Dome Enclosure. The accessories marked with a red
asterisk
* are compatible with the Indoor Flush Mount Dome.

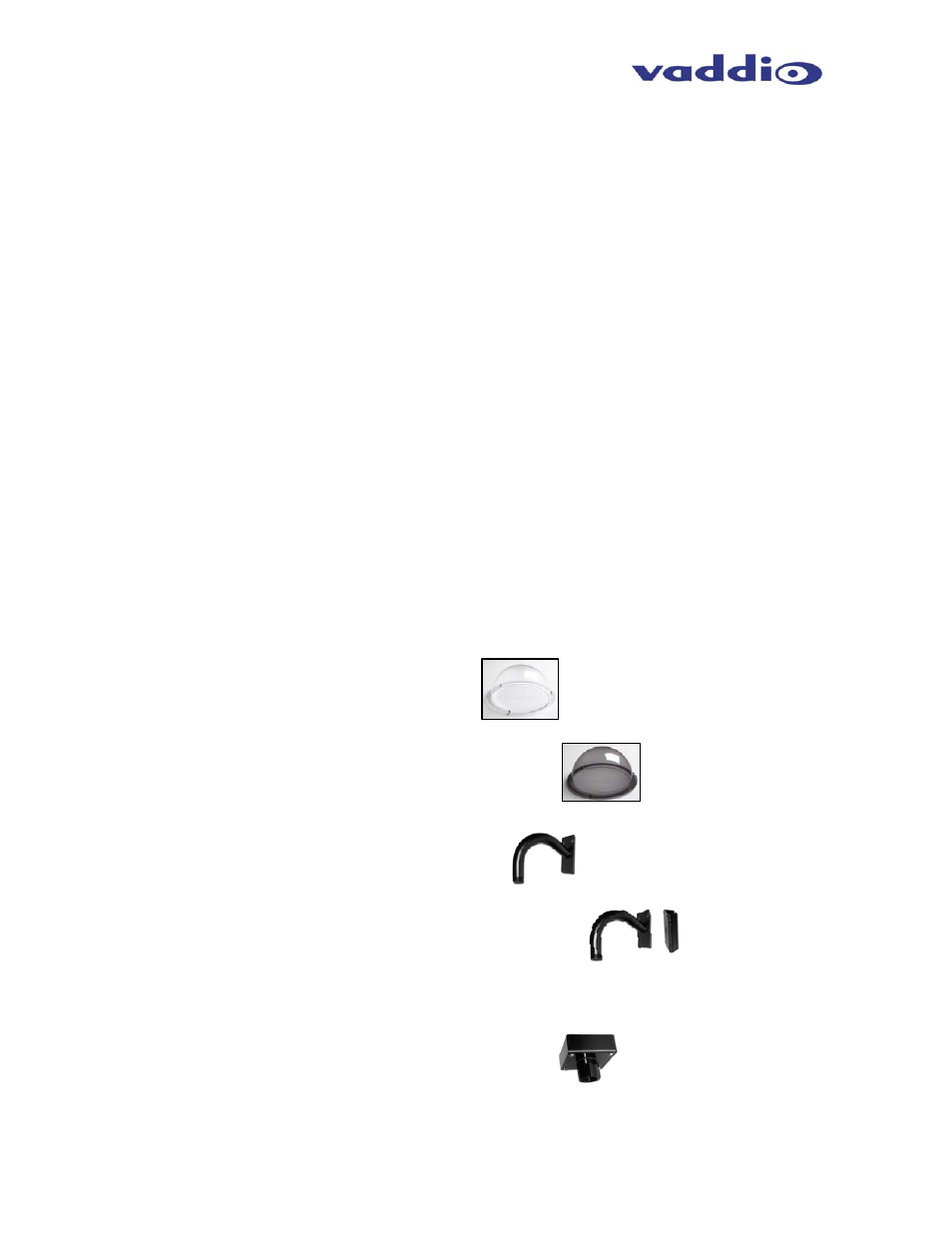

Conveniently Located Accessory Section:
998-9000-210:
12” (304.5mm) Clear Dome Accessory *
• Includes Clear Dome with Stainless Steel Screws
998-9000-220:
12” (304.5mm) Smoke Tinted Dome Accessory *
• Includes Smoke Tinted Dome with Stainless Steel Screws
998-9300-000:
Wall Mount Kit for Pendant Mount Domes
• Heavy duty aluminum cast construction
• 1.5” NPT threads easily onto domes
998-9300-001:
Wall Mount with Pole Mount Kit for Pendant Domes
• Heavy duty aluminum cast construction
• 1.5” NPT threads easily onto domes
• Accommodates 3” (7.62cm) to 10” (25.4cm) poles
998-9300-002:
Structure Mounting Box Kit for Pendant Domes
• Mounting box with heavy duty 1.5” NPT thread adapter
• Requires 1.5” NPT pipe (not supplied)
