DomeVIEW HD - 12” Indoor Flush Mount Dome
DomeVIEW HD - 12” Indoor Flush Mount Dome Manual 342-0186 Rev. A Page 3 of 8

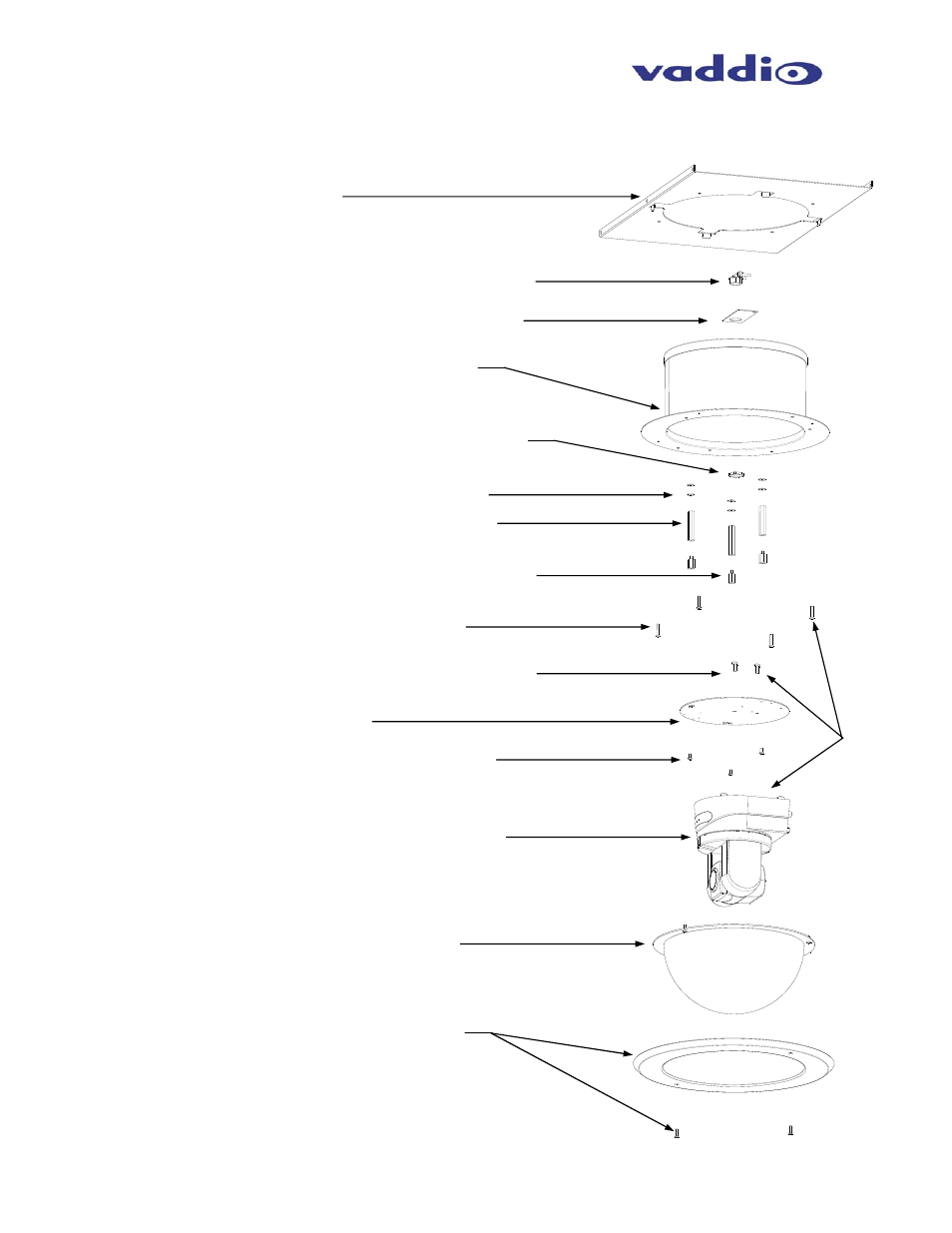

Anatomy of the 12” Indoor Flush Mount Dome
The DomeVIEW HD Indoor Pendant Mount Dome Enclosure will come partially assembled
* .
• One-Piece Tile Support Brace
• Clamp Down (Romex) 3/4”Conduit Connector *
• Safety Hanger Bracket *
• Metal Back Can - Three (3) 10-32 x .5” studs
hold the six (6) spacer washers and the three
(3) 2.5” stand-offs
*
• ¾” Conduit Nut *
• Three (3) 2.5” long 10-32 threaded F to F .5” Hex
stand-offs support the camera platform *
• Two ¼”-20 x 5/8” screws attach HD-18 or HD-19 to platform
• Two ¼”-20 x 3/8” screws attach HD-20 to platform
• Three (3) .75” long 10-32 threaded M to F .5” Hex
stand-off extensions Use with HD-20 Camera Only
• Universal Camera Platform *
• Three (3) 10-32 x .5” Pan Head Screws
attach through the camera platform to the
2.5” stand-offs
*
• Vaddio HD-20, HD-19 or HD-18 PTZ
Camera Systems
• 12” Clear Optical-Grade Polycarbonate
Dome with three (3) stainless steel
screws attached
* These parts are pre-assembled.
Not Assembled
Not
Assembled
• Six (6) Spacer Washers *
• White Spin-formed Trim Ring
and White Screws
• Four (4) 10-32 x 1” Pan Head Screws attach
Metal Back Can to the Tile Support Brace
