WallVIEW CCU HD-18
WallVIEW CCU HD-18 Manual 341-889 Rev. C Page 3 of 18
UNPACKING:
Carefully remove the device and all of the parts from the packaging.
Unpack and identify the following parts:
• One (1) ClearVIEW HD-18 PTZ Camera
• One (1) Quick-Connect CCU breakout box
• One (1) IR Remote Control
• One (1) EZIM CCU Card
• One (1) Wall Mount and Hardware
• One (1) RJ-45 to DB-9 Adapter
• One (1) Vaddio PowerRite 36 VDC, 2.78 Amp Power Supply
• One (1) AC Cord Set (US – North America or UK and Europe - International)
• Documentation and Manuals
1. Camera – A 1/3”, 1.3 megapixel HD image sensor is combined with an 18x optical zoom lens, for
capturing high-quality video.
2. Tally Light – A tally light is illuminated when the camera receives a VISCA command or from the
CCU tally port on the back of the Quick-Connect CCU.
3. IR Sensors – Dual IR sensors are built into the front of the WallVIEW CCU HD-18 to receive IR
signals from the IR remote control supplied with the camera.
4. Power Light – A power light is illuminated when the camera is turned on.
Compatible Switchers and Joystick Controllers:

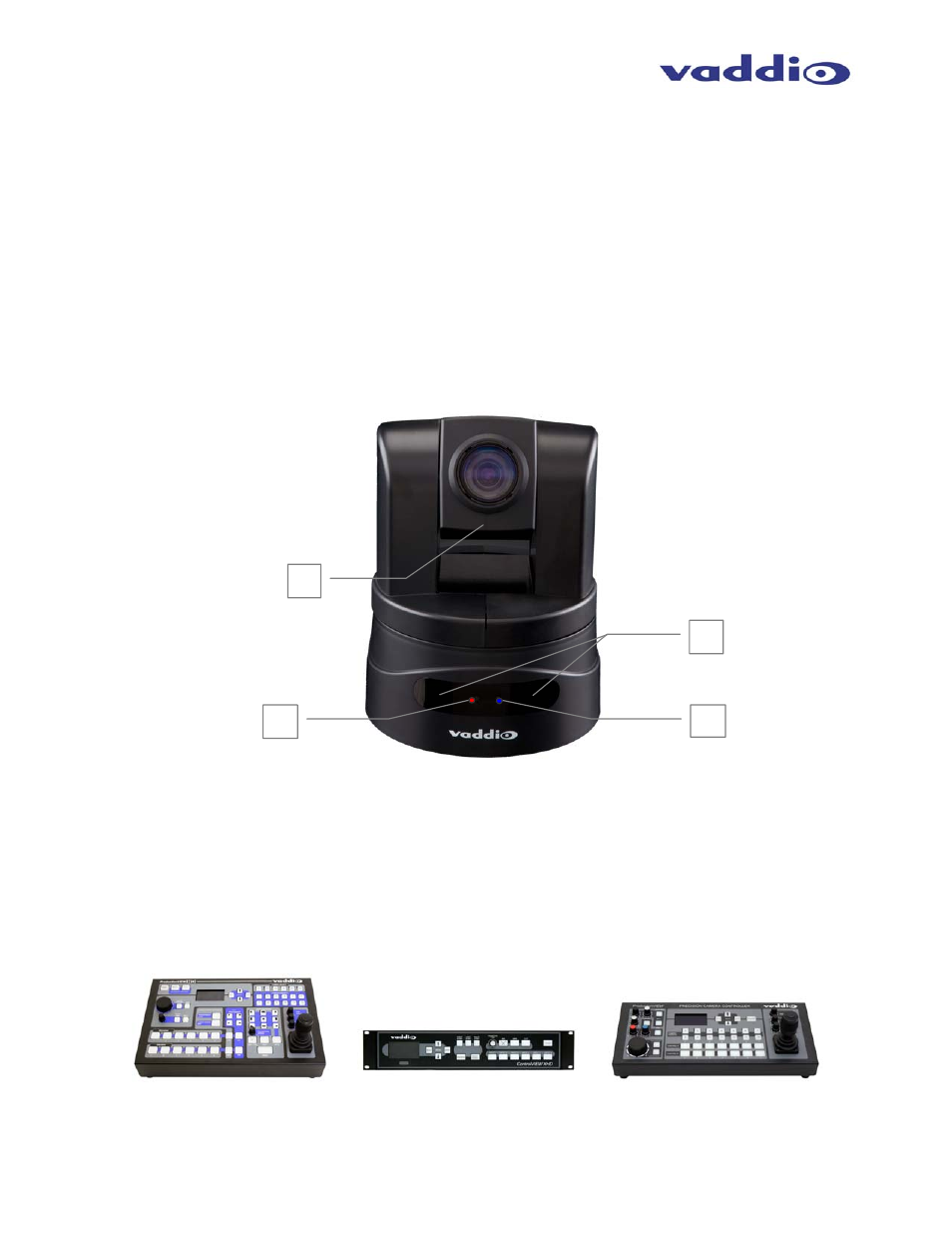

Figure 1: ClearVIEW HD-18 PTZ Camera (front)
1
2 4
3
ProductionVIEW HD
(999-5600-000)
Precision Camera Controller
(999-5700-000)
ControlVIEW XHD
(999-5672-000)
