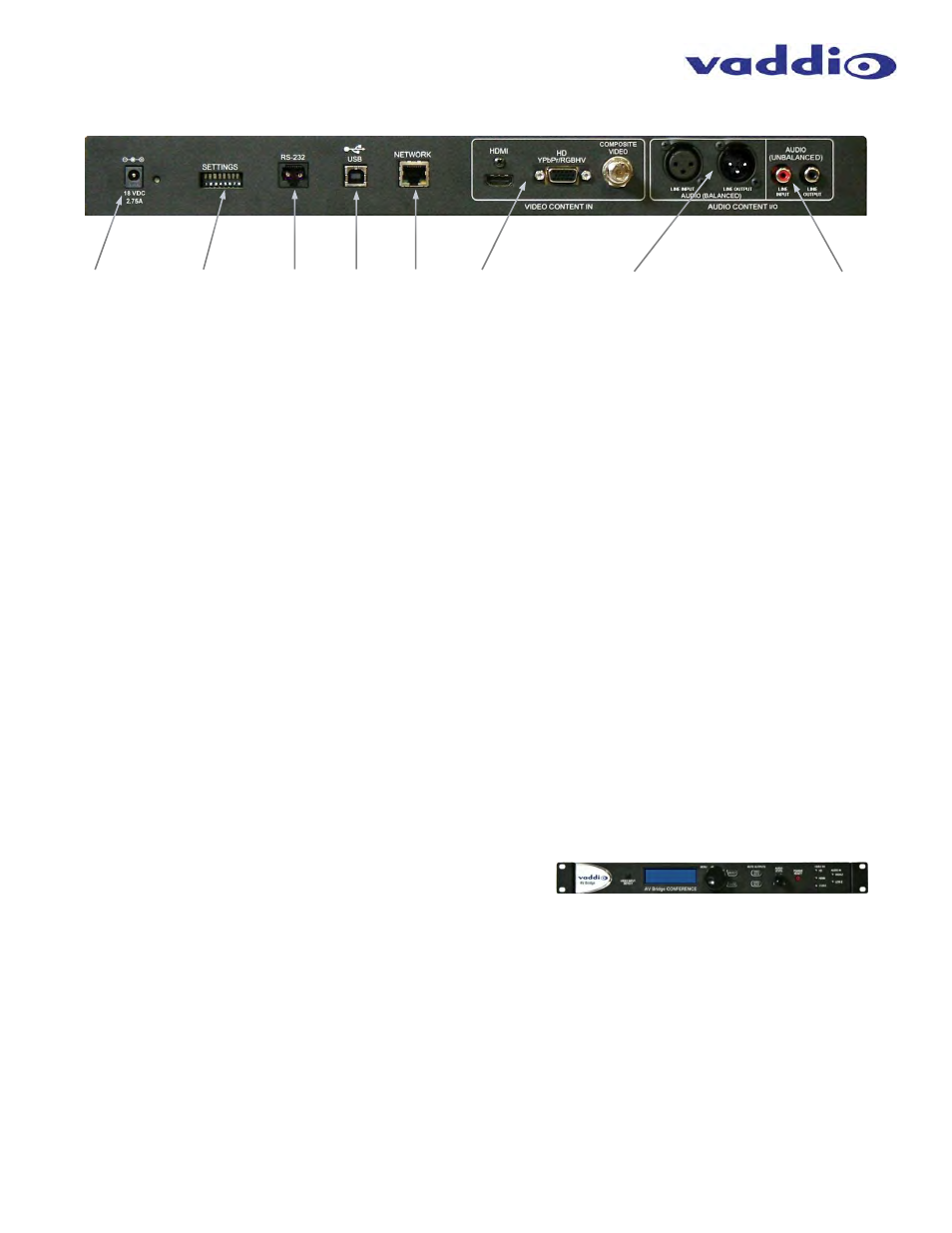

Image: Rear Panel Connector and Features
1) Power
Connector: 5.5mm OD x 2.5mm ID, center positive coaxial connector for supplying power to the
device. Use with provided desktop 18 VDC, 2.75 Amp power supply.
2) DIP
Switches: Used to reset device to factory defaults. Setting all dip switches to the off-position will reset
the unit to factory defaults on the next power cycle. User will lose all programmed configurations on the
factory default operation. Dip switches are available for future features.
3) RS-232:
RS-232 communication port on an RJ-45 connector supporting Vaddio’s serial command protocol.
Used for interfacing with Crestron/AMX control systems.
4) USB
Port: USB Type-B connector interfaces to the Host PC. AV Bridge CONFERENCE Emulates a USB
webcam and USB speakerphone device.
5) Network:
10/100 Ethernet port supports the embedded web server for configuration and management of the
AV Bridge CONFERENCE. The Ethernet port will stream H.264 and AAC audio.
6) Video Inputs: Video inputs supporting HDMI, HD or SD (SD stands for Standard Definition, NTSC or PAL
video formats). The HD connection supports either YPbPr or select wide screen RGBHV resolutions on the
DE-15 connector. Video sources can be switched during a USB streaming session.
7) Balanced Audio Input and Output: Balanced line level (+4dBu) audio I/O on XLR connectors
8) Unbalanced Audio Input and Output: Unbalanced line level (-10dBV) audio I/O on RCA connectors.
Note: The audio inputs are line level and user selectable between balanced or unbalanced.
First Time Set-up with the AV Bridge CONFERENCE
The AV Bridge CONFERENCE is a complex high definition
Audio/Video encoder used as a USB or IP streaming appliance
that provides a Plug & Play type interface (or bridge) between
traditional A/V room equipment and a Host PC.
The AV Bridge CONFERENCE facilitates the use of PC-Based lecture/capture, recording, editing, and distribution
as well as Unified Communications (UC) software within group meeting spaces.
An important feature of the AV Bridge CONFERENCE is the 2-way analog audio I/O that sends the near-end
room audio to the far-end and returns the far-end audio to the local room’s pro mixer with AEC. The AV Bridge
CONFERENCE is the ideal choice for existing rooms as well as new designs.
➊ ➋ ➌ ➍ ➎ ➏ ➐ ➑
