E6 SERVICE MANUAL REV C 06/12
55

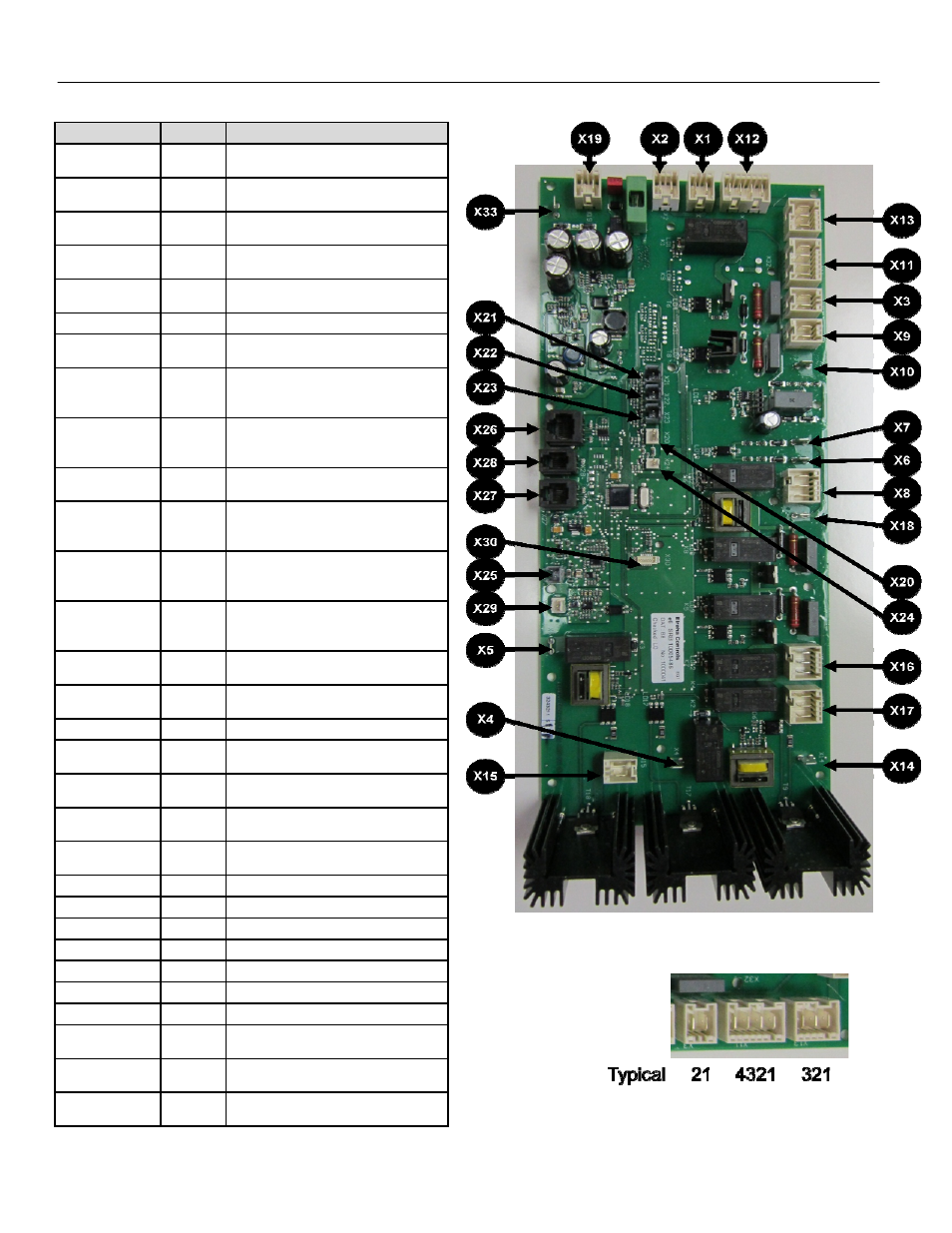

SRB Terminal Locations:
Connector Wire # Description
X1-1 14 Input, L1 from main terminal
block
X1-2 15 Input, L2 from main terminal
block
X2-1 16 Output, L1 to 24V control
transformer
X2-2 17 Output, L2 to 24V control
transformer
X3-1 64 Output, L1 to motor controller
(when activated)
X3-2 65 Output, L2 to motor controller
X4 32 Input, L1 from main terminal
block (for high heater circuit)
X5 10 Input, L1 from main terminal
block (for low and radiant heater
circuit)
X6 24 Input, L1 from primary door
switch (if door closed) (for
microwave circuit)
X7 13 Input, L2 from main terminal
block (for microwave circuit)
X8-1 20 Input, L1 from secondary door
switch to connection block (if
door closed)
X8-2 22 Input, L2 from monitor door
switch to connection block (if
door open)
X8-3 23 Output, L1 to primary door
switch (if door closed), L2 (if
door open)
X9-1 58 Output, L1 to left cooling fan
(when activated)
X9-2 33 Output, L1 to right cooling fan
(when activated)
X10 Currently not used
X11-1 35 Output, L1 to right stirrer motor
(when activated)
X11-2 36 Output, L1 to right mag fan
(when activated)
X11-3 37 Output, L1 to left stirrer motor
(when activated)
X11-4 38 Output, L1 to left mag fan (when
activated)
X12-1 39 Output, L2 to right stirrer motor
X12-2 40 Output, L2 to right mag fan
X12-3 41 Output, L2 to left stirrer motor
X12-4 42 Output, L2 to left mag fan
X13-1 59 Output, L2 to left cooling fan
X13-2 34 Output, L2 to right cooling fan
X13-3 Currently not used
X14 blu Output, L1 to high heater (when
activated)
X15-1 wht Output, L1 to radiant heater
(when activated)
X15-2 yel Output, L1 to low heater (when
activated)
