E6 SERVICE MANUAL REV C 06/12
54

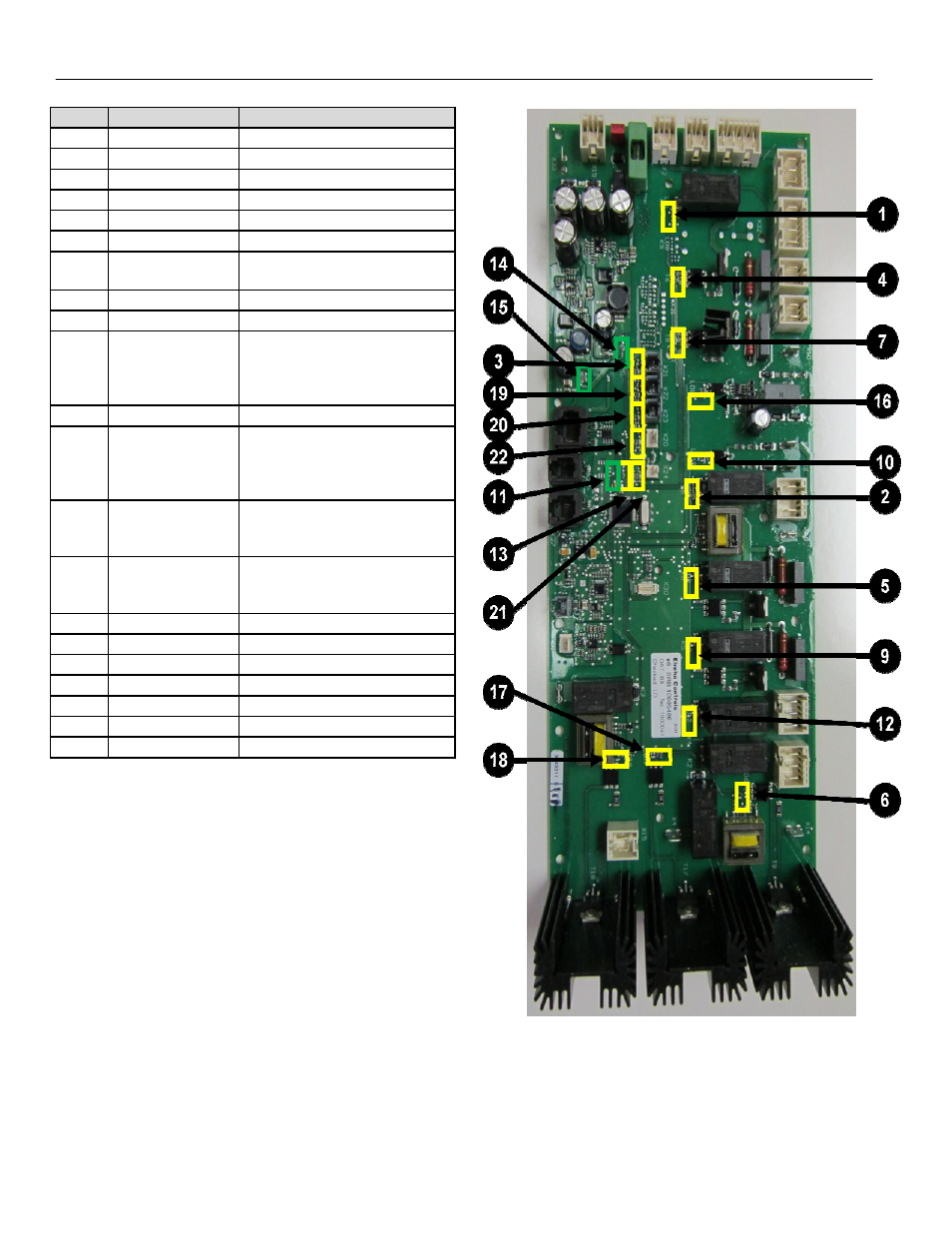

SRB LED’s:
LED Circuit Description
1 Motors Aux safety relay supply
2 Microwave Mag safety relay supply
3 Cavity Limit Cavity high limit proving
4 Motor Cooling fan drive
5 Microwave Right mag drive
6 Heater High heater drive
7 Motor
Stirrer motor and mag fan
drive
9 Microwave Left mag drive
10 Door Door proving
11 QTS
Communication to and from
QTS - P-Bus - Irregular
flashing, indicating data
communication with BTS.
12 Heater Heater safety relay supply
13 QTS
Communication to and from
QTS - Run - Pulsing 1
second flash, indicating that
the board has booted
14 DC
5 volt supply - Lit to show
voltage outputs from
transformer.
15 DC
12 volt supply - Lit to show
voltage outputs from
transformer.
16 Motor Motor controller drive
17 Heater Radiant heater drive
18 Heater Low heater drive
19 Mag High Limit Right mag high limit proving
20 Mag High Limit Left mag high limit proving
21 Motor Main fan motor proving
22 Power Switch Power switch proving
