GB - 29
Adjust the Attachment Clutch Cable
Spring Extension
1. Check the attachment clutch cable
spring extension.
Measure the length of the attachment
clutch cable spring with the clutch lever
disengaged.
Then measure the attachment clutch
spring with the clutch lever engaged.
See Figure 36.
• If spring extension is within the
specified range, go to Check
Attachment Brake on page 30.
• If spring extension is outside of
specified range, go to step 2.
2. Adjust cable length (see Figure 36).
a. Loosen jam nut on cable.
b. To increase spring extension
adjust barrel down the cable and
tighten jam nut.
c. To decrease spring extension
adjust barrel up the cable and
tighten jam nut.

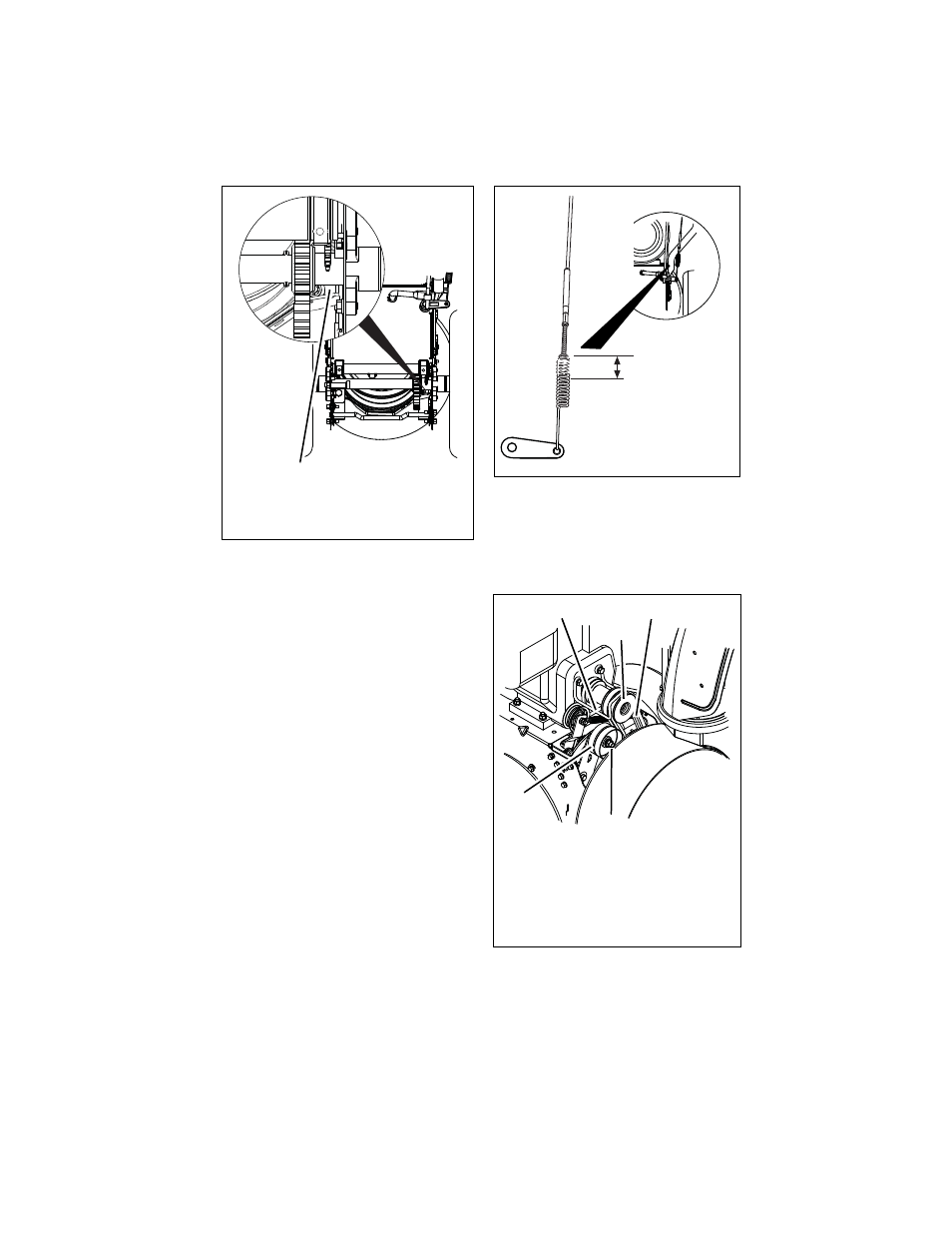

Figure 35
OS7189
Roller should be 1/2 –7/8 in. (12.7 – 22.2
mm) from the frame when the attachment
clutch is engaged.
Figure 36
OS7183
OS7184
1/2 – 9/16 in.
(12.7 –- 14.3 mm)
Figure 37
OS7221
1. Engine Sheave
2. Attachment Drive Belts
3. Belt Finger
4. Attachment Belt Idler
5. Attachment Idler Adjustment Nut
1
2 3
5
4
OS7194
