GB - 19

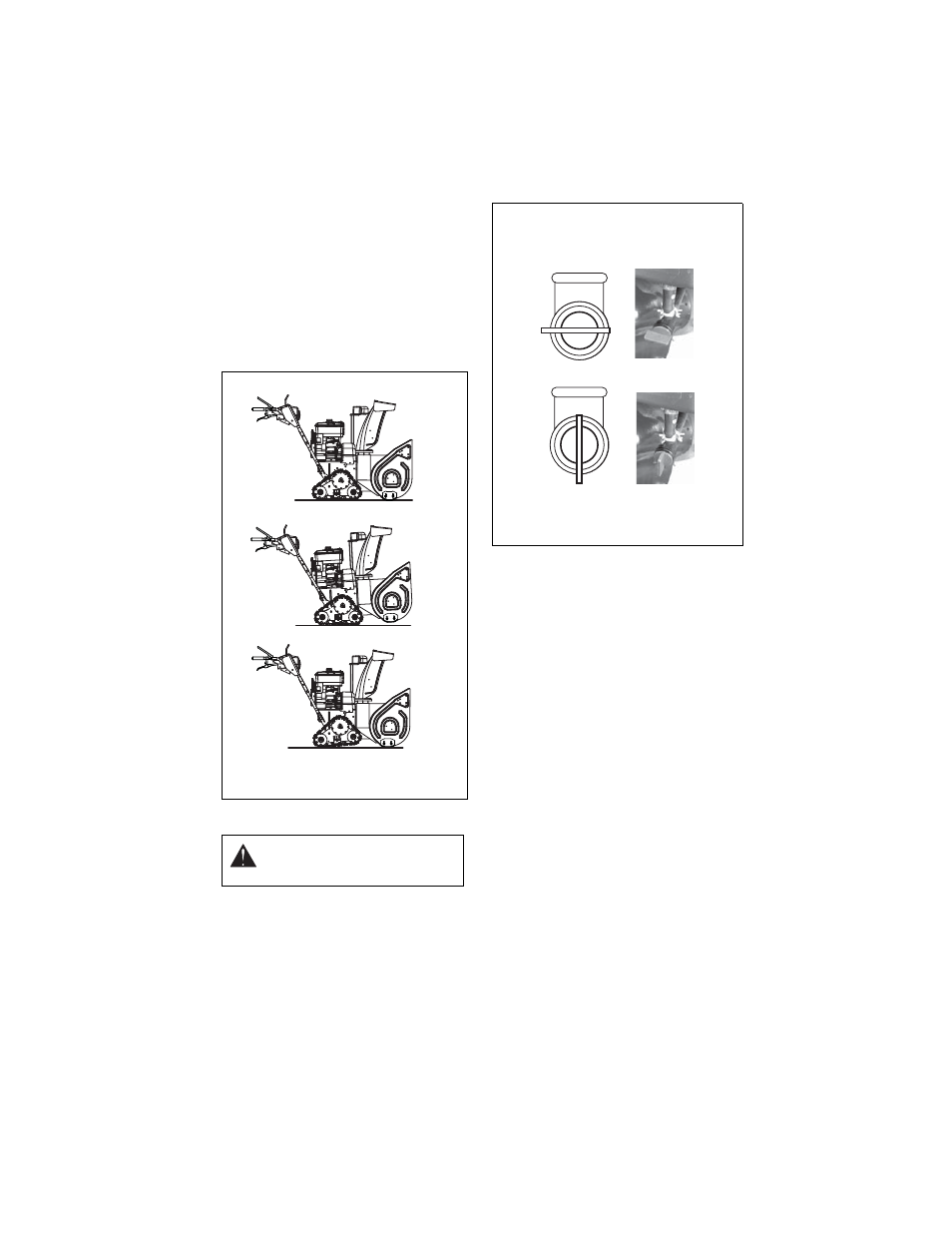

Track Angle (921007, 008, 009)
(Figure 19)
The track angle can be adjusted to position
the auger housing for level clearing, deep
cutting or transport.
Squeeze the handlebar trigger and press
down on the handlebars to move the auger
housing into an up position. Release the
trigger to hold the position.
Lift up on the handlebars and squeeze and
release the handlebar trigger to move the
auger housing into a down position.
FILLING FUEL TANK
Fuel Shut-Off Valve
IMPORTANT: The fuel shut-off valve MUST
be in the closed position prior to transporting
the unit.
The fuel shut-off valve has two positions:
To add fuel to fuel tank:
1. ALWAYS place unit in open or well-
ventilated area.
2. Stop engine and allow to cool.
3. Clean Fuel Cap and surrounding area to
prevent dirt from entering Fuel Tank.
4. Remove Cap.
IMPORTANT: DO NOT use gasohol or
gasoline containing alcohol. See Engine
Manual for correct type and grade of fuel.
5. Fill fuel tank to within 1/2 in. (1.2 cm)
below bottom of filler neck with unleaded
gasoline.
NOTE: Tank capacity is 1 gallon (3.8 liters).
6. Replace Fuel Cap and tighten.
7. ALWAYS clean up any spilled fuel.
PRE-START
1. Frozen Impeller
IMPORTANT: Before starting engine, check
impeller to be sure it is not frozen.
To check impeller:
1. With ignition key switch in “Stop”
position, squeeze Attachment Clutch
Lever to Engaged position.
2. Pull Recoil Starter Handle.
3. If Impeller is frozen, (cannot pull Starter
Handle) move unit to a heated area and
thaw to prevent possible damage.
WARNING: AVOID INJURY. Read
and understand the entire Safety
section before proceeding.
Figure 19
Deep Cutting
OS7111
Transport
Normal
Figure 20
Open Position: Use this
position to run the unit.
Closed Position: Use this
position to service, transport, or
store the unit.
OS7117
