SHEAR BOLTS
IMPORTANT: Use only Ariens shear bolts for
replacement. Use of any other type of shear
bolt may result in severe damage to unit. See
SERVICE PARTS on page 35.
Occasionally a foreign object may enter the
auger/impeller housing and jam the auger,
breaking shear bolts (Figure 25) which
secure the auger to the shaft. This allows
auger to turn freely on the shaft which may
help prevent damage to gear drive.
For Replacement:
1. Align shear bolt holes in auger with
shear bolt holes in the shaft.
2. Drive shear bolt through hole (if shear
bolt was broken this will drive remaining
part from shaft).
3. Secure shear bolt with nut.
REMOTE WHEEL LOCK (921005)
If remote wheel lock does not lock or unlock:
1. Place unit in service position (see
Service Position on page 22).
2. Loosen jam nuts on cable. Make sure
the bottom jam nut is loosened enough
to remove slack from cable (Figure 26).
3. Pull the cable adjuster to remove slack
between the cable adjuster and the
extension spring and hold the cable
adjuster in position while finger
tightening the top jam nut against the
bracket. Do not extend the spring or
engage the mechanism.
4. Tighten the bottom jam nut.
5. Check function of remote wheel lock. If
wheel lock does not function properly,
remove bottom cover to check cable
slack.
6. Repeat steps 2 – 4 while watching cable
to remove slack.
7. Check function of remote wheel lock. If
wheel lock does not function properly,
take the unit to Dealer for repairs.
DEFLECTOR REMOTE (921004,
006, 007, 008, 009)
Deflector must stay in selected position while
throwing snow.
If deflector does not stay in set position:
1. Tighten nut beneath control panel to
increase pressure on deflector control
(Figure 27).
If deflector does not follow full range of travel:
1. Push deflector remote all the way
forward.
2. Loosen adjusting nuts on cable support
bracket underneath the dash panel
(Figure 27).
3. To adjust the deflector lower:
Slide cable down. Tighten bottom nut.

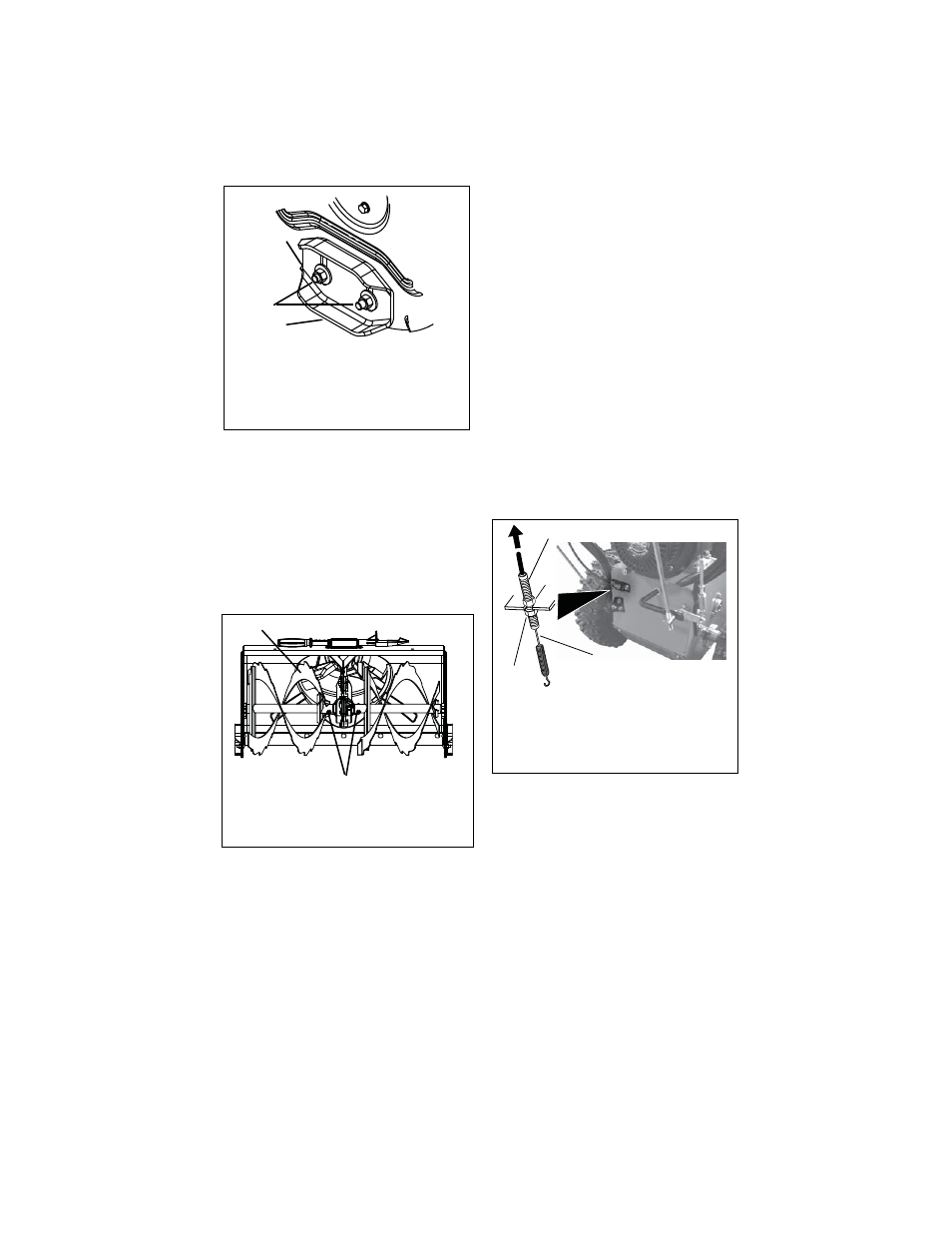

Figure 24
2
1
OS0482
1. Runner
2. Runner Hardware
Figure 25
1. Auger
2. Shear Bolts
OS7150
1
2
Figure 26
1. Top Jam Nut
2. Bottom Jam Nut
3. Cable Adjuster
1
2
No Slack
OS7170
3
