Balboa Water Group LM8 User Manual

Page 12

Blank Module

Dark Green / Dark Green

Part No. 35006-G

LM LED Sloan 2X Module

Yellow / Lime Green

Part No. 57143

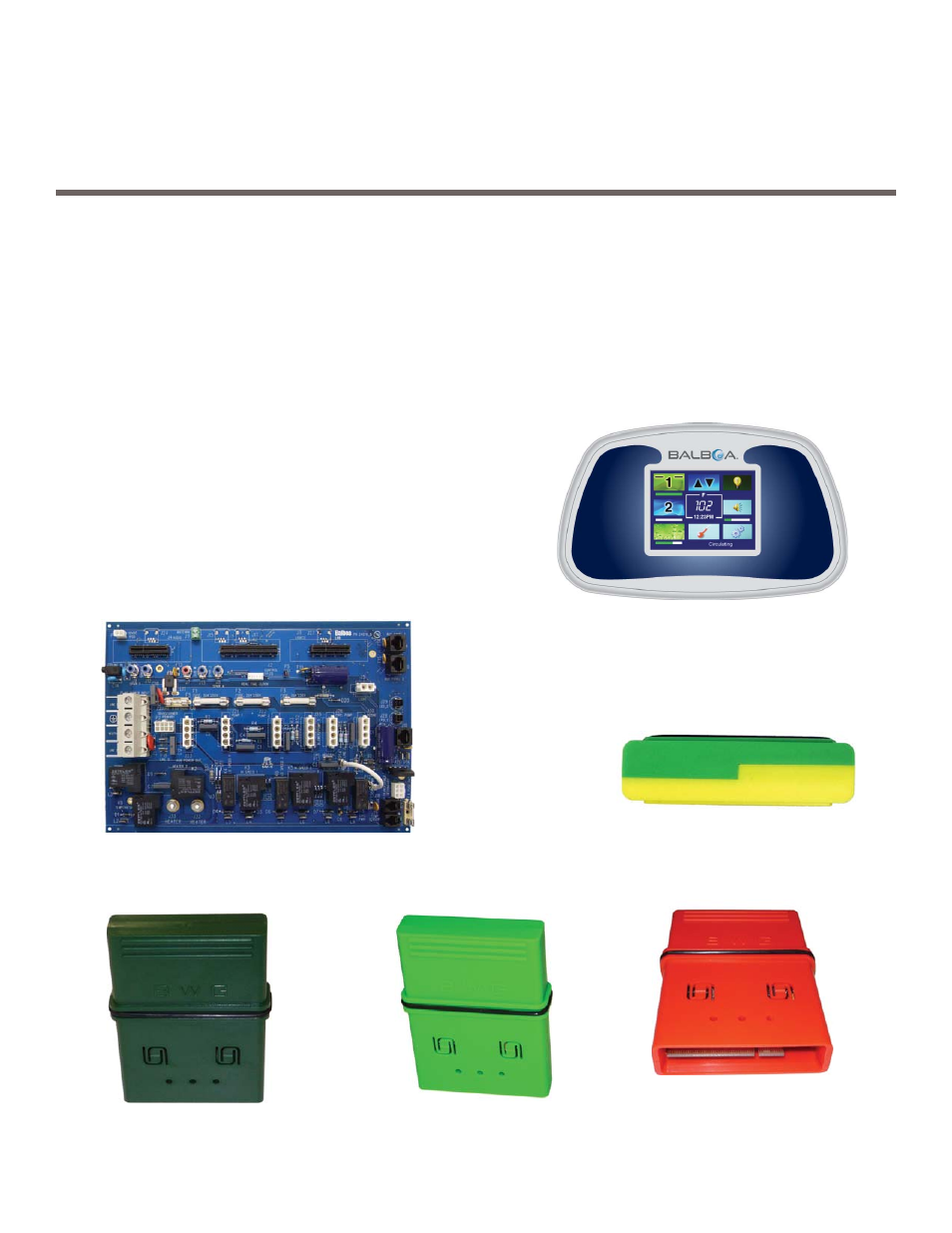

LM8 CONTROL MODULES

The Red Control Module manages all Logic Functions:

Keeps time of day

Reports water temperature

Saves settings in ﬂash memory

Translates messages from Touchscreen and activates Relay Board

Times out Pumps, Lights, and Audio

Safely maintains Heater Function

Monitors

7. Sensor

Health

Backup Processor also watches for Heater or Sensor problems

The Yellow / Green LED Module provides colors and intensity selected
at Topside.

The Green Audio Module tunes FM from Topside Commands and
delivers 100W of Music.

Blank green modules are placeholders.

NOTE ON CHANGING COMPONENTS

When changing modules or panels, be sure that
the system is powered down completely before
removing or inserting any modules or panels
into the system. If the system is still powered up
while removing or inserting any module or panel,
irreparable damage may occur to the module, the
mother board, or the panel.

Audio Sub Module

Lime Green / Lime Green

Part No. 57141

Balboa Control Module LEIMFG

Part No. 57130-01

Panel Balboa LM8, Part No. 57126-03

57139 Board Balboa LM8000 LR6
