7
Votator
®
II Scraped Surface Heat Exchanger
• Stainless steel exterior and stainless steel painted drive
• Open stainless steel mounting frame
• Boltless V-Lock heads for quick disassembly
• Splined mutator shaft removes in minutes
• Unique boltless blade mounting pins
• Gear motor drive - no couplings, belts
or sheaves
• Heat transfer tube separate from media jacket.
It has a reliable double O-Ring seal on each end and
can be removed from the jacket in minutes without
disturbing the media piping.

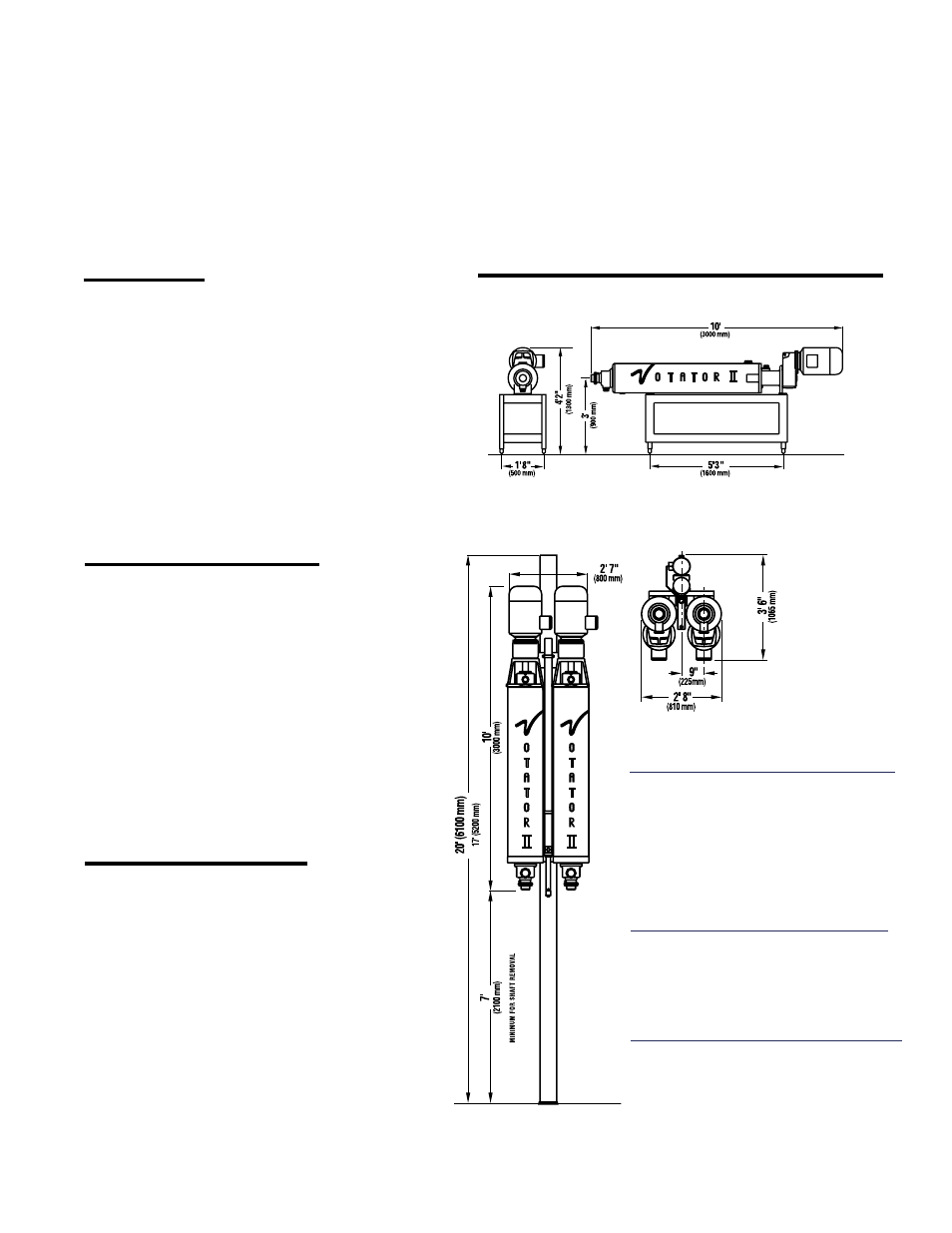

DIMENSIONAL DATA MODEL 6 X 72
The Votator ® II is the newest design of scraped surface heat exchangers. It is a combination of design features from the
proven Votator family, Thermutator Heat Exchangers, and new innovations resulting in a rugged, economical, and hygienic
heat exchanger that can be used for heating and cooling products of a wide range of viscosities, including extremely thick
and sticky products that require the cam action of the eccentric design.
6 x 24 3.0 ft 2 (0.28 m2)
6 x 36 4.2 ft
2
(0.39 m2)
6 x 48 6.0 ft 2 (0.56 m2)
6 x 72 9.0 ft 2 (0.84 m2)
6 x 84 11.0 ft 2 (1.0 m2)
MODELS
AVAILABLE HEAT
TRANSFER AREA
600 psi (42 bar) @ 400° F (204° C) or
800 psi (56 bar) @ 400° F (204° C)
PRODUCT SIDE PRESSURE
250 psi (17.5 bar) @ 400° F (204° C) or
150 psi (10.3 bar) @ 400° F (204° C)
JACKET PRESSURE
• Can be mounted vertically or horizontally
• Sanitary appearance
• Minimum overall length
• USDA, CFIA, 3A, and ASME design standard;
CE-PED optional
• Tough 2 inch (50 mm) shaft spline
• Steam / water or gravity / pumped
liquid refrigerant jacket configurations
• Concentric or eccentric shaft mounting
FEATURES
PROCESS MATCHED
• Drives From 7-1/2 TO 20 HP
• Wide range of output speeds
• Chrome plated nickel heat transfer tubes or
316 stainless steel tubes specially designed for
enhanced heat transfer
• Stainless steel or plastic scraper blades
• Mutator shaft diameter based on fluid properties,
2-1/2, 4, 4-1/2, and 5-1/4 inches (63, 102, 114,
and 133 mm)
• Single and double mechanical seals
EASY TO MAINTAIN
