6
Votator
®
4 x 120 Scraped Surface Heat Exchanger
FEATURES

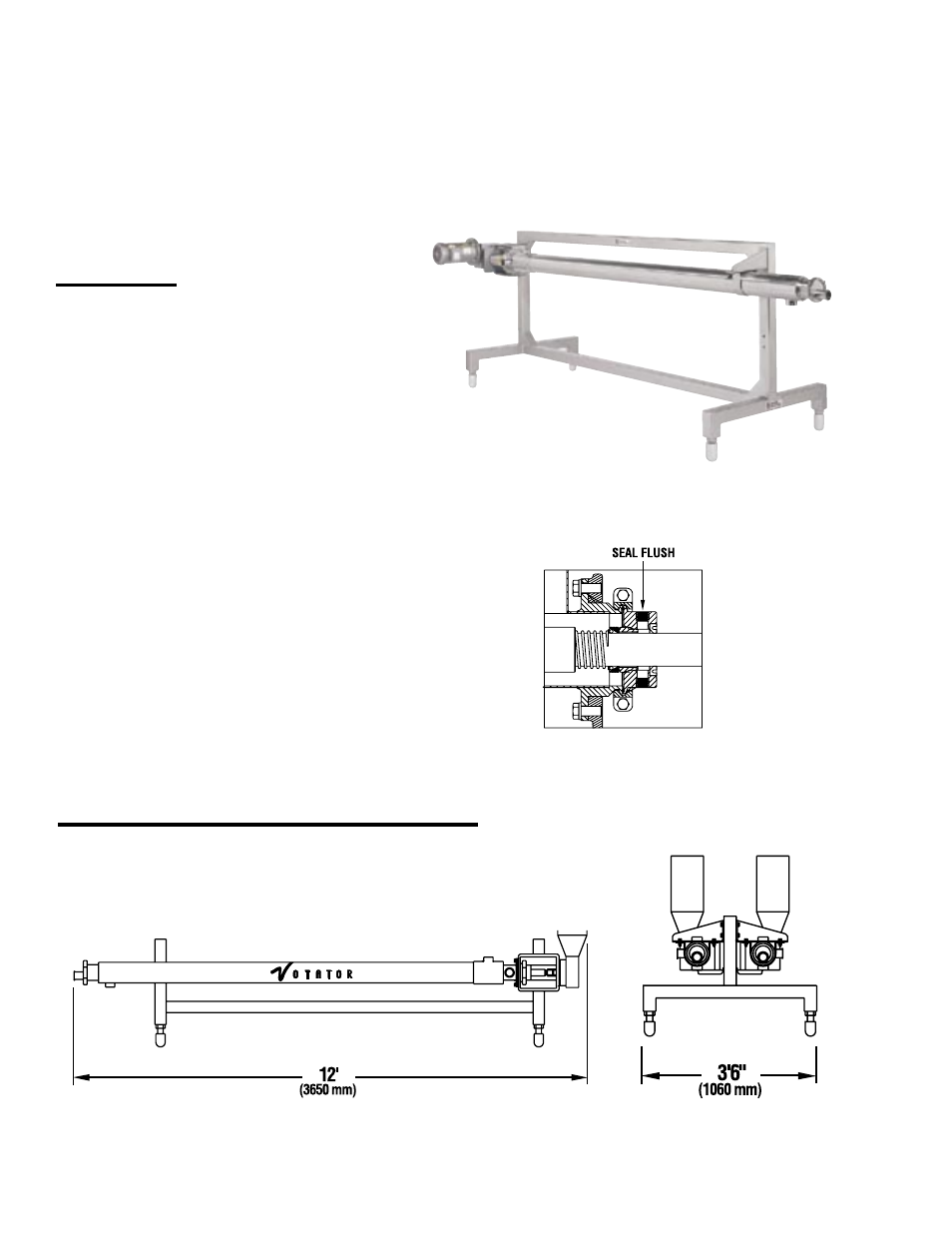

DIMENSIONAL DATA MODEL 4 x 120
Drive end
mechanical seal
(Ceramic or Graphitar)
The 4 x 120 is a unique concentric heat exchanger designed for heating and cooling moderately viscous products.
The heat transfer cylinder is 4 inches (102 mm) in diameter by 120 inches (3048 mm) long.
• All 316 stainless steel construction with high efficiency 0.083
stainless steel heat transfer tube or optional AL6XN tube
• Available with 9 ft
2 (0.84 m 2 ) heat transfer area
• Horizontal units can be mounted side by side with up to 8 cylinders per
frame or furnished loose for vertical mount
• All units suitable for steam or liquid media
• Mechanical seal with flush connection on drive end with
sleeve bearing on non-driven end
• 3 and 5 horsepower (2.2 kW – 5.5 kW) gear drives with shaft
speeds of 90 and 175 rpm; No couplings, belts or sheaves
• Product side pressure of 200 psig (14 bar) @ 365° F (185° C)
Jacket pressure of 150 psig (10.5 bar) @ 365° F (185° C)
• 2.375 inch (60 mm) shaft diameter for particulates up to 0.75 inches
(19 mm)
• 2 inch S-line product connections 1-1/2 FPT media connections
• Easy to field insulate after installation
• 3A and CE-SEP compliant
