5
PT-L780NT
Wireless Portable LCD Projector
S P E C F I L E
as of July 2002

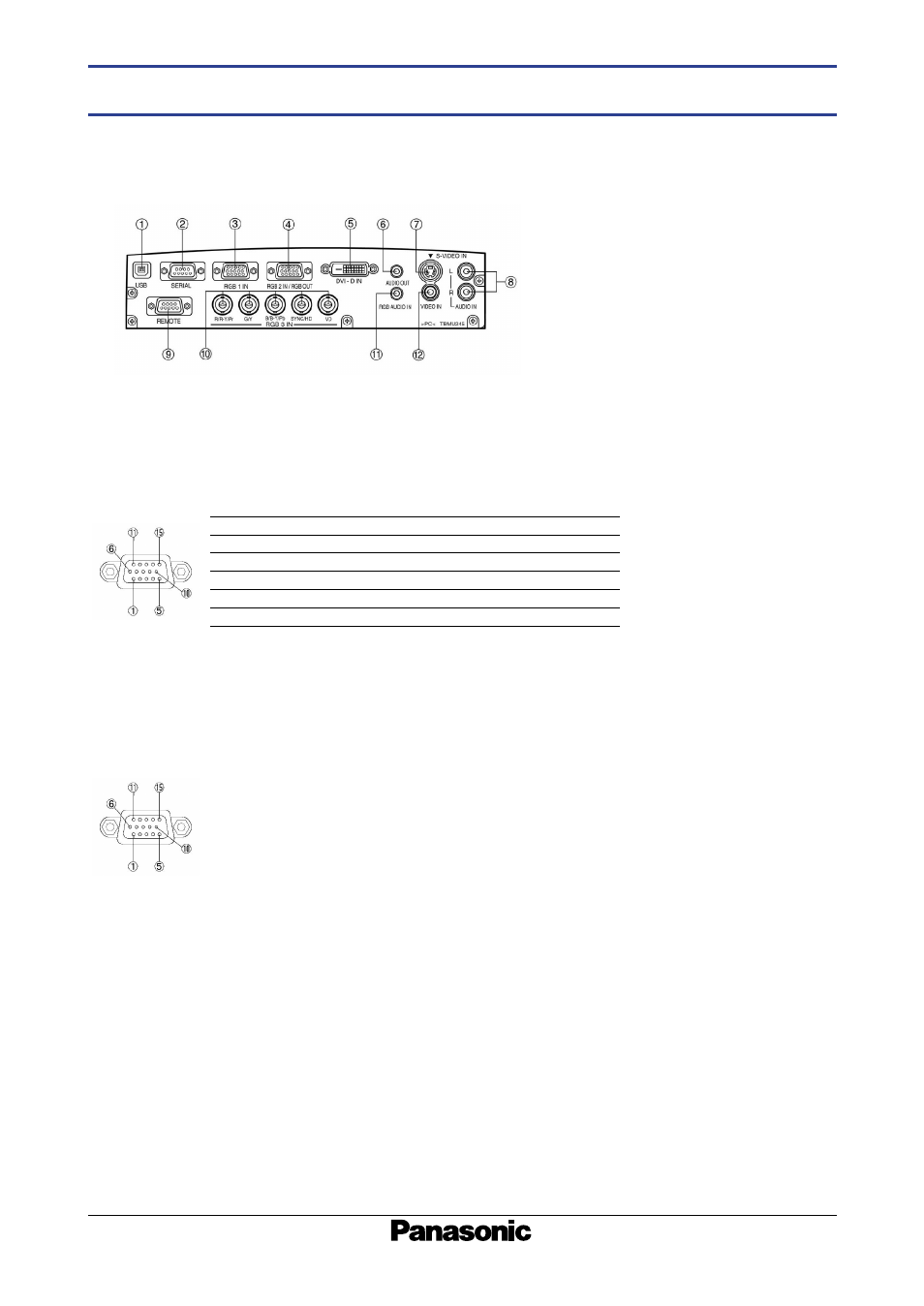

Terminals
RGB1/RGB2 input connector pin assignment
1 USB connector
2 Serial (RS-232C)
3 RGB1 input
4 RGB2 input/RGB output
5 DVI-D input
6 Audio output
7 S-Video input
8 Audio input for S-Video and video
9 Remote input
10 RGB3 input
11 Audio input for RGB
12 Video input
no. signal
6 GND
7 GND
8 GND
9 NC
10 GND
no. signal
11 NC
12 SDA*
13 HD/SYNC
14 VD
15 SCL*
no. signal
1 R/P R
2 G/Y
3 B/P B
4 GND
5 GND
DVI-D input connector pin assignment
no. signal
1 T, M, D, S data 2-
2 T, M, D, S data 2+
3 T, M, D, S data 2/4 shield
4 T, M, D, S data 4-
5 T, M, D, S data 4+
6 DDC clock
7 DDC clock
8 NC
no. signal
9 T, M, D, S data 1-
10 T, M, D, S data 1+
11 T, M, D, S data 1/3 shield
12 T, M, D, S data 3-
13 T, M, D, S data 3+
14 +5 V
15 GNC
16 Hot plug detection
no. signal
17 T, M, D, S data 0-
18 T, M, D, S data 0+
19 T, M, D, S data 0/5 shield
20 T, M, D, S data 5-
21 T, M, D, S data 5+
22 T, M, D, S clock shield
23 T, M, D, S clock +
24 T, M, D, S clock -
* Effective when connected to a PC having proper functions.
