ADIC 4000 User Manual
Page 76
B-6
Drive Configuration
62-0162-01

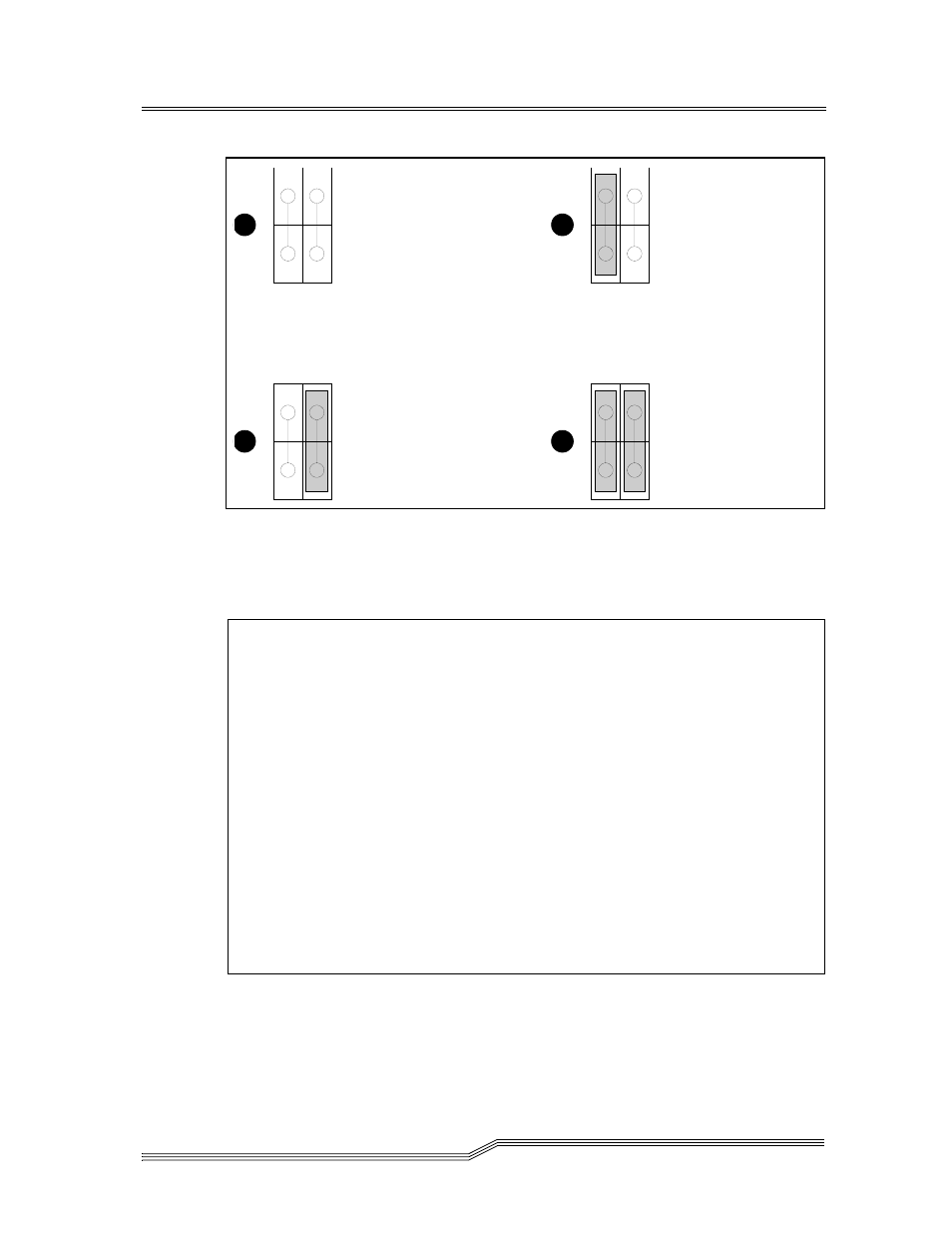

Figure B-6
TRM PWR/TRM ENB Jumper Position
If . . .
And . . .
Then You Should . . .
Another device is
providing
terminator power
The 4000/7000DLT
Series is not at the
end of the SCSI bus
chain
Connect jumpers as
1
in Figure B-6.
Another device is
providing
terminator power
The 4000/7000DLT
Series is at the end
of the SCSI bus
chain
Connect jumpers as
2
in Figure B-6.
No other device on
the SCSI bus is
providing
terminator power
The 4000/7000DLT
Series is not at the
end of the SCSI bus
chain
Connect jumpers as
3
in Figure B-6.
No other device on
the SCSI bus is
providing
terminator power
The 4000/7000DLT
Series is at the end
of the SCSI bus
chain
Connect jumpers as
4
in Figure B-6.
1
N o Term Pow er
D isable Active Termination
2
N o Term Pow er
Enable A ctive Termination
3
Term Pow er
D isable A ctive Termination
4
Term Pow er
Enable A ctive Termination
