4-4 Installation
62-0162-01
Connecting More than One 4000/
7000DLT Series
If you are connecting more than one 4000/7000DLT Series
unit on the same SCSI channel, simply connect each unit to the
previous unit with an additional interface cable. It doesn't
matter which SCSI connector on each 4000/7000DLT Series
unit you connect the interface cable to. Figure 4-1 shows a
sample configuration.

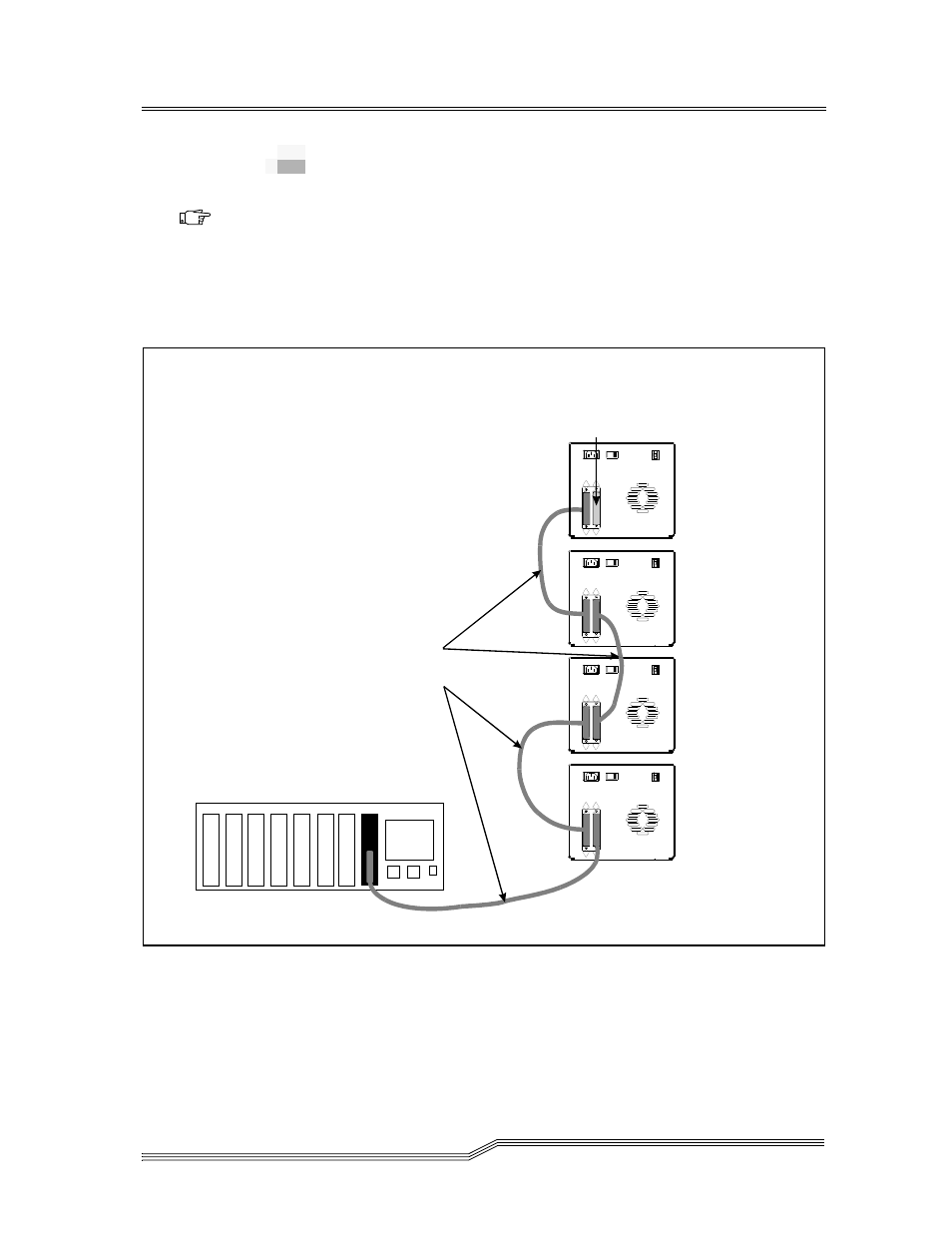

Figure 4-1 Cable Diagram for 4 4000/7000DLT Series Units
Note
Don’t forget to
install the SCSI
terminator on the
last device in the
chain.
SC SI ID 3
SC SI ID 2
SC SI ID 1
SC SI ID 0
SC SI
Interface C ables
H ost C om puter
4 D S9X 00 U nits
D aisy C hained
Term inator
