VQT4T99 (ENG)
16

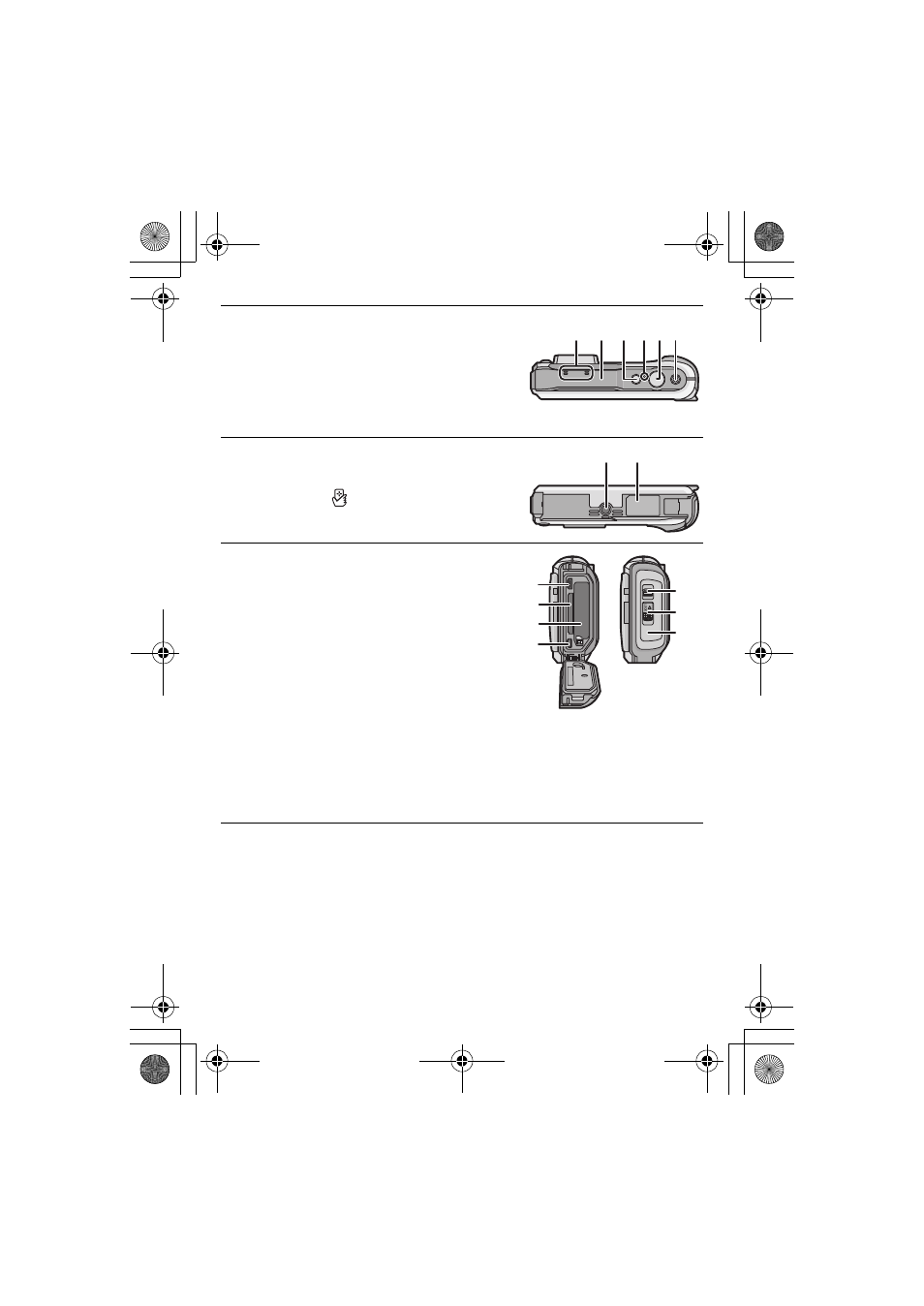

17 Microphones
18 GPS antenna
19 Camera [ON/OFF] button
20 GPS status indicator
21 Shutter button
22 Motion picture button
23 Tripod mount
• A tripod with a screw length of 5.5 mm (0.22 inch)
or more may damage this unit if attached.
24 NFC antenna [ ]
25 [HDMI] socket
• Do not connect with any cable other than an
HDMI micro cable (RP-CHEU15: optional).
Doing so may cause malfunction.
26 Card slot
27 Battery slot
• When using an AC adaptor, ensure that the
Panasonic DC coupler (DMW-DCC14: optional)
and AC adaptor (DMW-AC5PP: optional) are
used.
• Always use a genuine Panasonic AC adaptor
(DMW-AC5PP: optional).
• When using an AC adaptor, use the AC cable supplied with the AC adaptor.
28 [AV OUT/DIGITAL] socket
29 Release lever
30 [LOCK] switch
31 Side door
17 18 19 20 21 22
23 24
25
26
27
28
29
30
31
