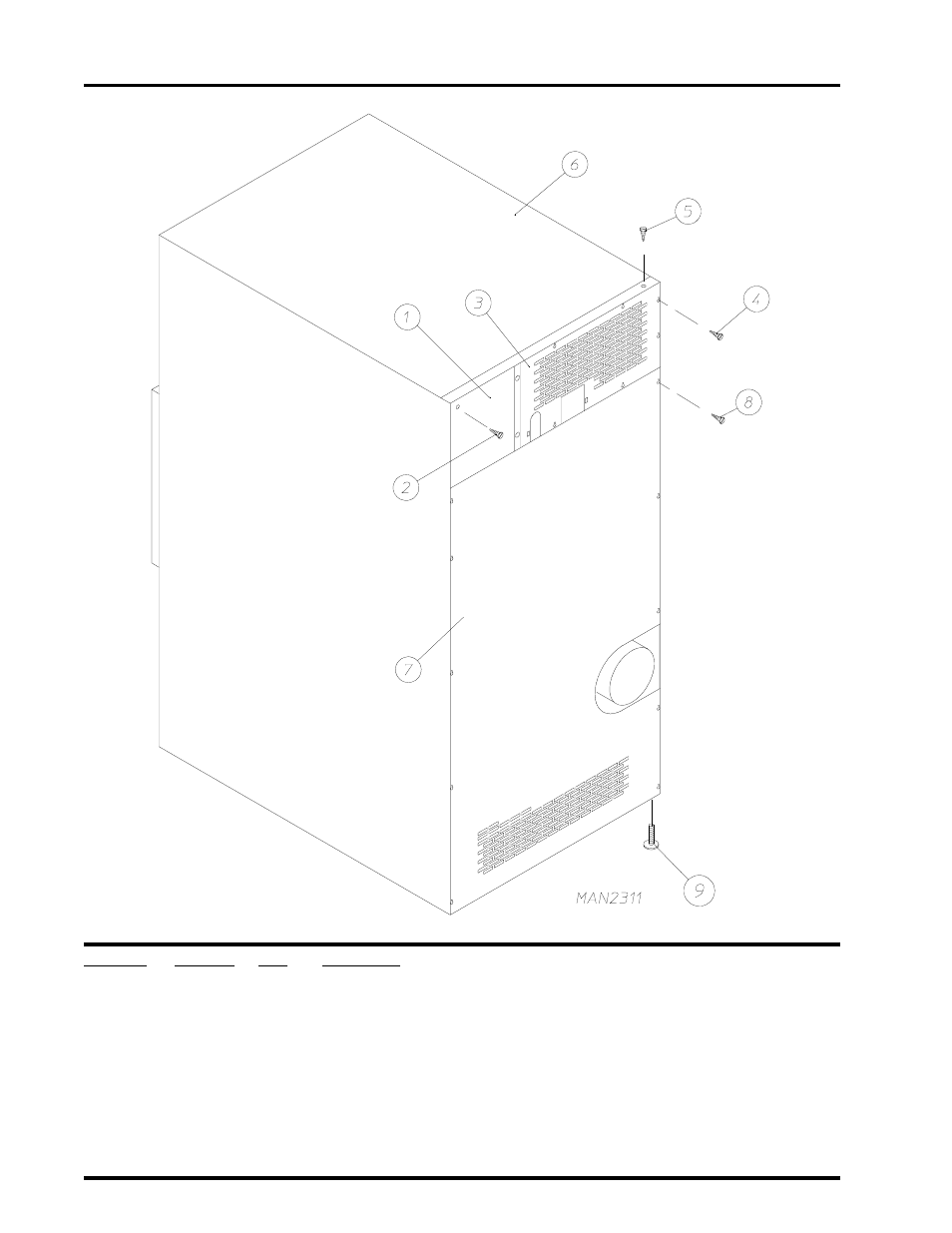

Outer Top/Back Guard Assemblies

For Gas and Electric Models ONLY

Illus. No.

Part No.

Qty.

Description

1

322809

1

Back Electrical Box Cover

2

150301

5

#8-18 x 7/16” Phillips Pan Head TEK Screw

3

323738

1

Top Back Guard

4

150301

6

#8-18 x 7/16” Phillips Pan Head TEK Screw

5

150301

8

#8-18 x 7/16” Phillips Pan Head TEK Screw

6

312527

1

Outer Top Guard

7

314526

1

Lower Back Guard

8

150301

10

#8-18 x 7/16” Phillips Pan Head TEK Screw

9

103500

4

Leveling Leg
