Illus. No. Part No. Qty. Description
1 160001 1 AD-100 Lock Assembly with Key (for coin models Only)
160103 1 AD-100 Key ONLY
800150 1 Knob Latch Kit Assembly
(includes illus. nos. 1 and 2)
160003 1 Dummy Lock ONLY (for non-coin models)
160104 1 MK-100 Key ONLY (for dummy lock)
2 160008 1 Lock Cam For AD-100 and Dummy Lock
160009 1 Knob Latch Adjustable Cam ONLY
150425 1 #12-24 x 3/8” Round Head Machine Screw ONLY
(screw for knob latch adjustable cam)
3 157000 1 Drop Lint Door Spring
4 800237* 1 Insulated Drop Lint Door Assembly
(includes illus. nos. 4 through 8)
880229 1 Stainless Steel Insulated Drop Lint Drawer Assembly
(includes illus. nos. 4 through 8)
5 150201 6 #10-32 x 1/4” Phillips Pan Head TEK Screw
6 117604 7 Neoprene Sponge Tape (sold by the foot)
7 117603 3 Suppressor Tape/Gasket (sold by the foot)
8 180212 1 Mid Trim/Kick Plate - Gray (8-1/4” length)
9 150419 2 #6 x 1/2” Tamperproof TEK Screw
10 108120 1 Chain For Drop Lint Door (10-1/2” length)
--- 150418 1 Tamperproof Screw Hand Driver
* Specify color when ordering.

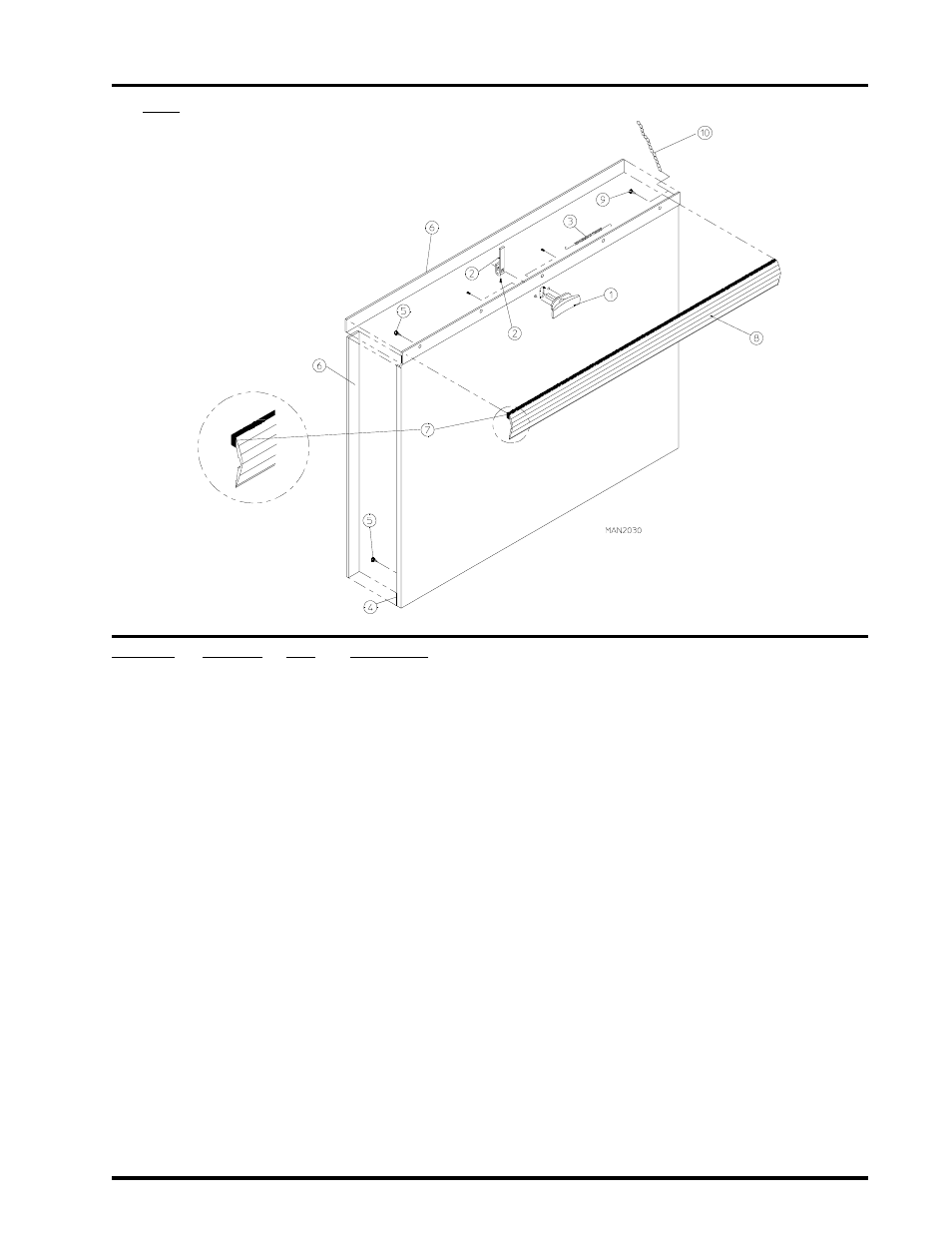

Drop Lint Door Assembly With Trim
For ALL Coin Models
