Illus. No.
Part No.
Qty.
Description
1
322812
1
Back Electrical Box Component Plate
2
137060
1
Arc Suppressor (A.S.) Board
3
137013
4
Nylon Standoff
4
882386
1
Reversing Contactor (208/230/240v, 50/60 Hz) - 24 VAC
5
150103
2
#8-32 x 3/4” Phillips Round Head Machine Screw
6
151001
2
#8-32 Pal Nut
7
153002
1
5/16” Lock Washer
8
152004
1
5/16-18 Hex Nut
9
132430
1
Impellor Contactor (208/230/240v, 50/60 Hz) - 24 VAC
10
150103
2
#8-32 x 3/4” Phillips Round Head Machine Screw
11
151001
2
#8-32 Pal Nut
12
120701
1
4-Position Terminal Block
13
150008
2
#6-32 x 1-1/4” Slotted Round Head Machine Screw
14
151000
2
#6-32 Pal Nut
15
121300
3
Open/Closed Bushing
---
322809
1
Back Electrical Box Cover ... Not Illustrated
---
150301
4
#8-18 x 7/16” Phillips Pan Head TEK Screw ... Not Illustrated
---
---------*
1
Transformer
*
Refer to Step Down Transformer Usage Listing on page 46.

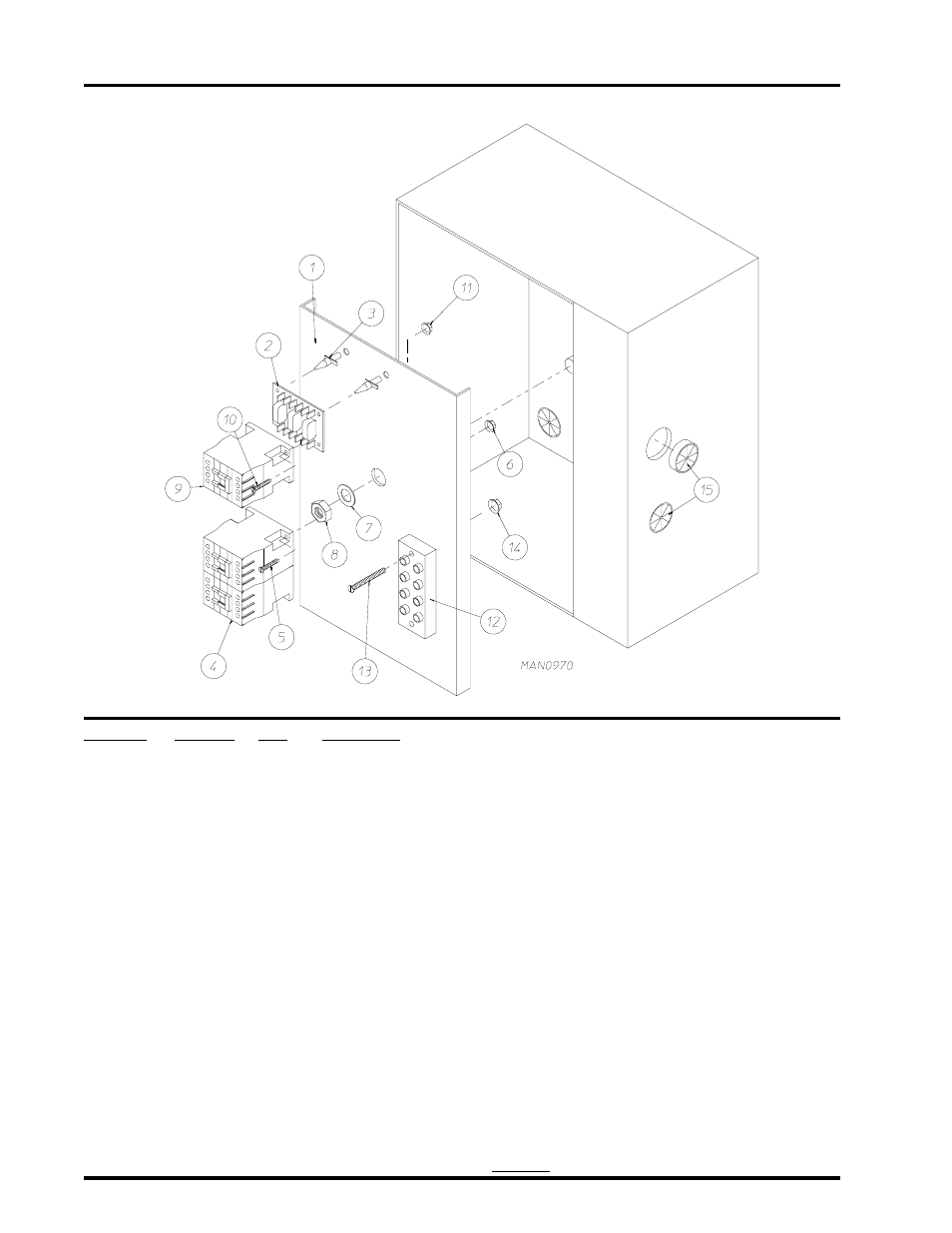

Microprocessor Reversing Rear Control Box Assembly
For Gas, Electric, and Steam Models
