Illus. No. Part No. Qty. Description
1 322812 1 Back Electrical Box Component Plate
2 132430 1 Impellor Contactor (208/230/240v, 50/60 Hz) - 24 VAC
3 137015 1 RC Network
(for microprocessor controller [computer] models Only)
4 150103 2 #8-32 x 3/4” Phillips Round Head Machine Screw
5 151001 2 #8-32 Pal Nut
6 153002 1 5/16” Lock Washer
7 152004 1 5/16-18 Hex Nut
8 120701 1 4-Position Terminal Block
9 150008 2 #6-32 x 1-1/4” Slotted Round Head Machine Screw
10 151000 2 #6-32 Pal Nut
11 121300 3 Open/Closed Bushing
--- 322809 1 Back Electrical Box Cover ... Not Illustrated
--- 150301 4 #8-18 x 7/16” Phillips Pan Head TEK Screw ... Not Illustrated
--- ---------* 1 Transformer
* Refer to Step Down Transformer Usage Listing on page 46.

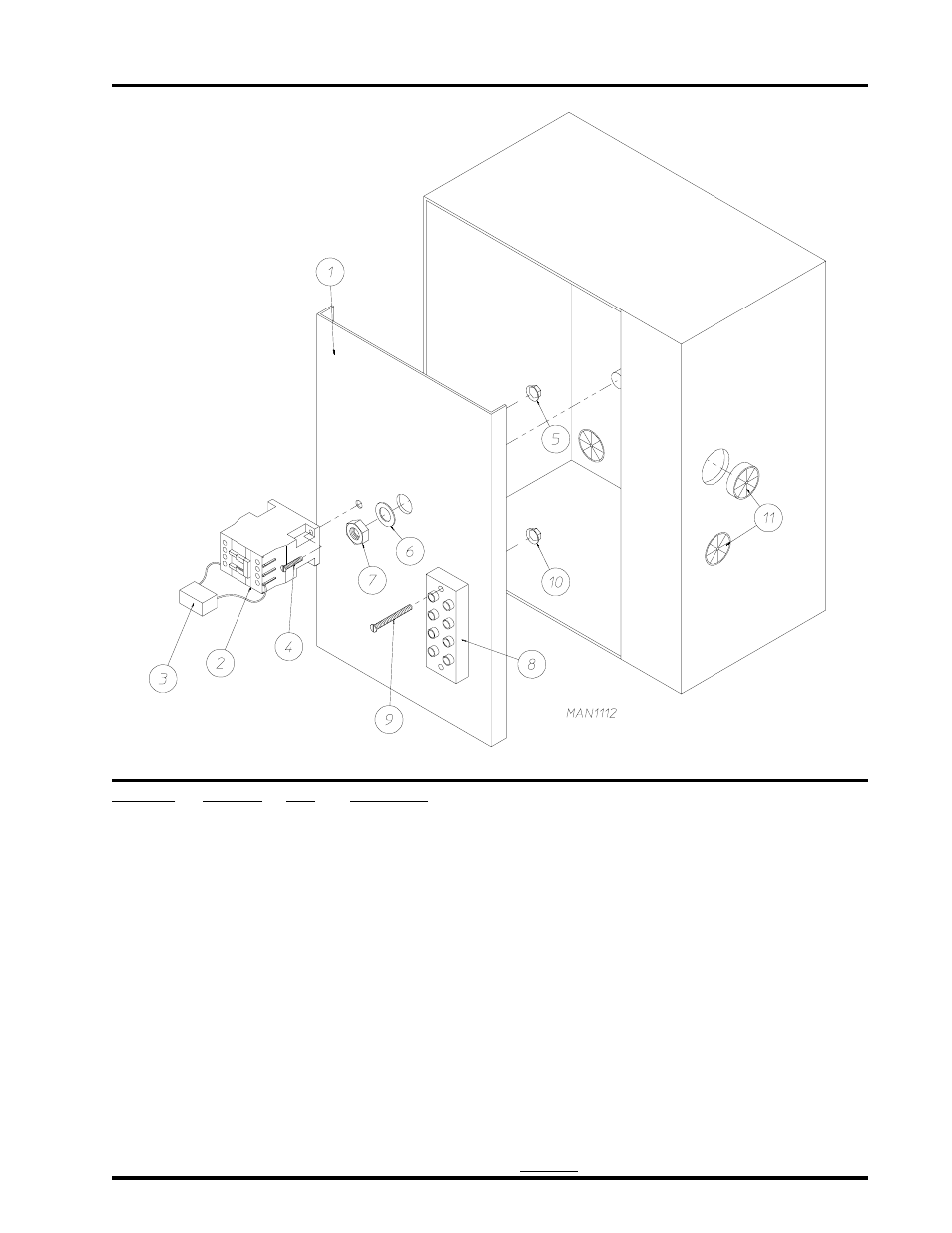

3-Phase (3Ø) Motor, Electric Relay Panel Assembly
