M968845 Rev. 1.2

4508.400

PRINCETON

3

5

4

4

Certified to comply with ANSI A112.18.1

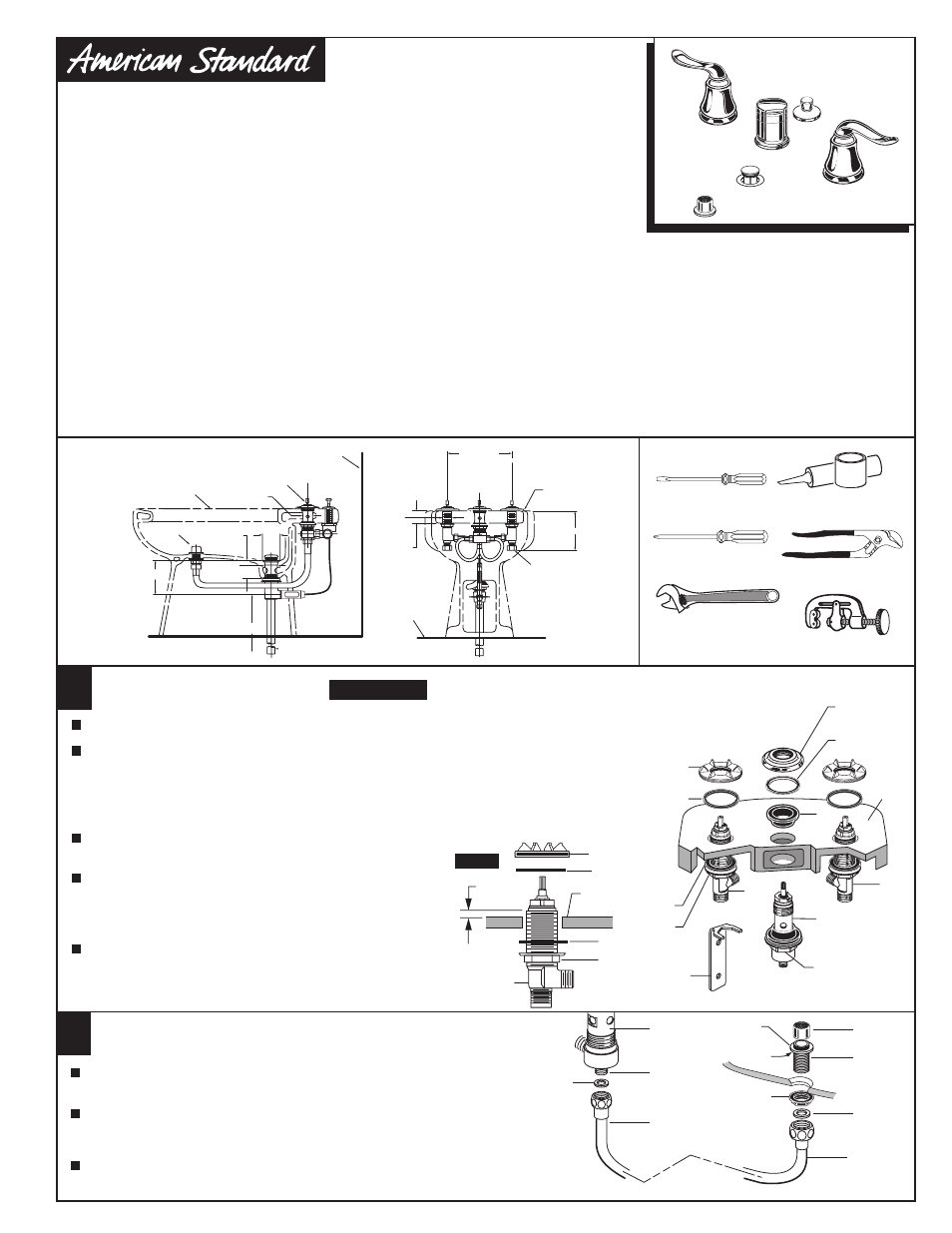

Installation

Instructions

Turn off hot and cold water
supplies before beginning.

CAUTION

1

BIDET FAUCET INSTALLATION

Replace UPPER GASKET (8) and WASHER (7) and
ESCUTCHEON (6) until it locks against internal stop.
Position the side threaded outlet rearward and
secure MOUNTING NUT (11).

Remove ESCUTCHEON (6), WASHER (7) and
UPPER GASKET (8) from TRANSFER VALVE (9).
Insert TRANSFER VALVE (9) into the center forward
hole of BIDET.

COLD

HOT

BIDET

LEDGE

10

4

3a

3

8

9

1

5

2

6

Roughing-in

Dimensions

SPRAY INSTALLATION

2

Assemble SPRAY BODY (1) to BIDET. Using putty, seal underside
of SPRAY BODY FLANGE (2) and secure with NUT (3).

Thread SPRAY CAP (9) onto SPRAY BODY (1).

Thread SPRAY HOSE (4) with SEAL WASHER (5) to SPRAY BODY (1).
Connect other end of HOSE (4) with SEAL WASHER (6) to side outlet
NIPPLE (7) of the TRANSFER VALVE (8).

PUTTY

6

2

7

8

1

9

Tighten LOCKNUTS (1) with WRENCH (5) (supplied)

to secure VALVE BODIES (3, 3a).

Install LOCKNUT (1) and RUBBER WASHER (2) onto VALVE BODIES (3, 3a). From

under side of mounting surface, install VALVE BODY (3, 3a) through valve mounting

holes. Threads of VALVE BODY (3, 3a) should extent at least 5/16 of a inch above

mounting surface top. Fig. A. Thread DECK ADAPTER (4) onto VALVE BODIES

(3, 3a) until snug against internal stop. If necessary, adjust LOCKNUT (1).

Place RUBBER RING (10) into ESCUTCHEON (4).

MOUNTING

SURFACE

4

10

2
1

3, 3a

5/16''

MIN.

Fig. A.

11

Adjustable Wrench

Screwdriver

Channel Locks

Required tools

Tubing Cutter

Phillips Screwdriver

Plumbers' Putty or

Caulking

BIDET OUTLINE
IS SYMBOLIC

FINISHED
FLOOR

FINISHED
WALL

1-1/4 O.D. TAILPIECE

DOUCHE
SPRAY

2-1/8

DIA.

ADJ. 1-1/4

TO 2-1/4

3-7/8

5-1/2

1-3/8

DIA.

7/8 DIA.

1-1/4

MAX.

1-3/16

DIA.

2-1/4

DIA.

(C)

(H)

4-1/4

FOR GROUND JOINT
CONNECTION OR 1/2 "
O.D. SLIP (INLETS)

REAR VIEW WITH

WALL REMOVED

TRANSFER VALVE

(FOR FLUSHING
RIM OR SPRAY)

8 TO 12

7

1

Bidet Faucet and Transfer Valve

with

Speed Connect™ Drain

Congratulations on purchasing your American Standard
faucet with Speed Connect drain, a feature found only on
American Standard faucets.

*Your new American Standard faucet is designed to work only with the Speed Connect drain.

To ensure that your installation proceeds smoothly-please read these instructions carefully before you begin.

Speed Connect™ Drain*

• Fewer parts, installs in less time
• Never needs adjustment
• Guaranteed to seal properly the first time, every time.
