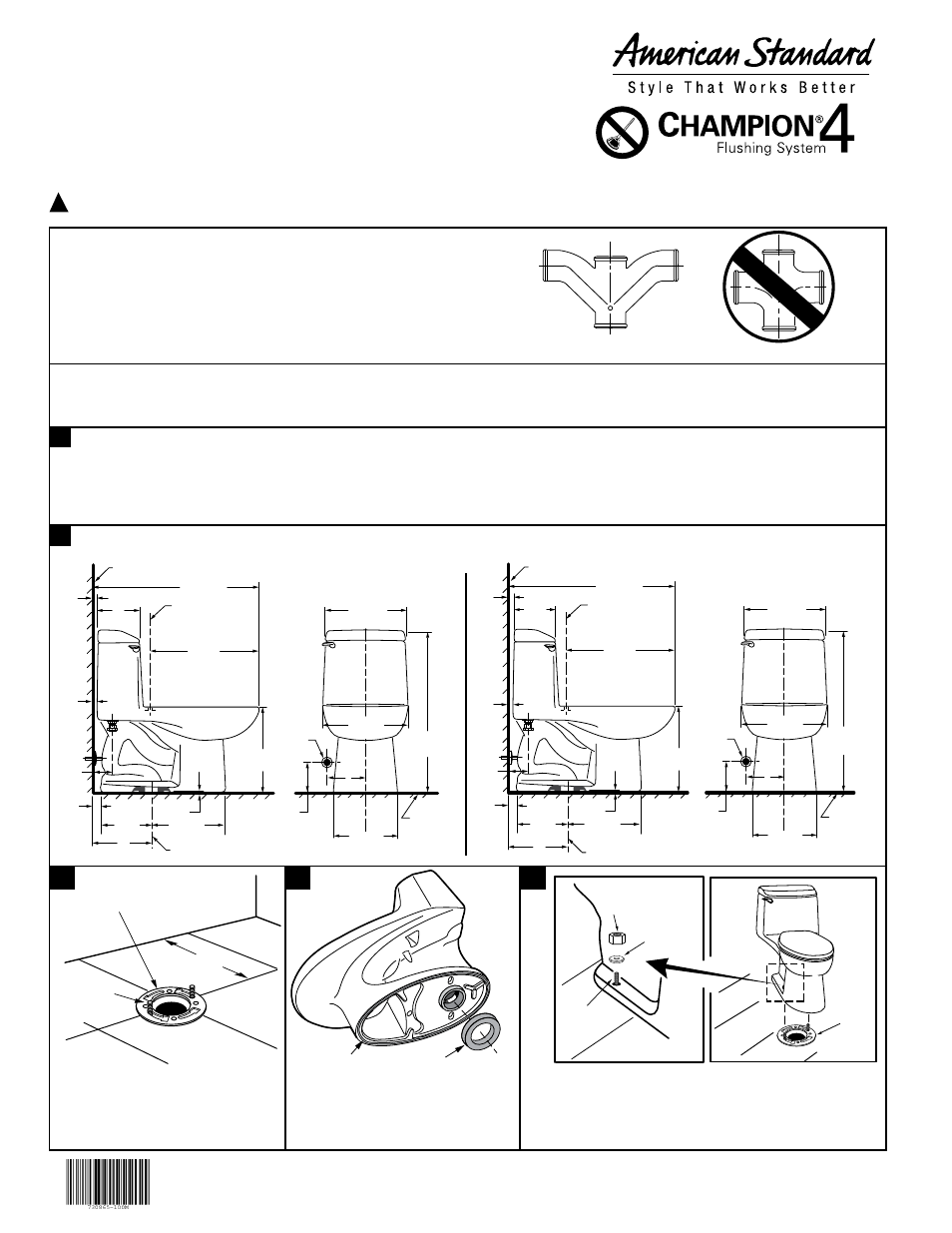

INSTALLATION INSTRUCTIONS

Champion

®

4

Model 2004 Normal Height Elongated One Piece Toilet
Model 2034 Right Height

®

Elongated One Piece Toilet

RECOMMENDED TOOLS AND MATERIALS

Putty Knife
Closet Bolts

Regular Screwdriver
Wax Ring/Gasket

Adjustable Wrench
Flexible Supply Tube

Sealant
Hacksaw

Carpenters Level
Tape Measure

2

CLOSET
FLANGE

CLOSET

BOLTS

A

ROUGHING-IN DIMENSIONS:
NOTE: Distance from wall to closet flange centerline must be as listed below:

INSTALL WAX SEAL
Invert toilet on floor (cushion to prevent
damage), and install wax ring evenly
around waste flange (horn), with tapered
end of ring facing toilet. Apply a thin
bead of sealant around toilet base.

POSITION TOILET ON FLANGE
a.

Unplug floor waste opening and install toilet on closet

flange so bolts project through mounting holes.
b.

Loosely install retainer washers and nuts. Side of

washers marked "THIS SIDE UP" must face up!

4

5

3

WAX RING

SEALANT

Model 2004

29-3/4

(756mm)

8

(203mm)

1-3/4 (44mm)

1-1/4
(32mm)

15

(381mm)

13-1/2

(343mm)

10-3/4

(273mm)

28-1/8

(714mm)

16-3/4

(425mm)

17-3/4

(451mm)

FINISHED WALL

18-1/2

(470mm)

C/L OF SEAT
POST HOLES
5-1/2 (140mm)
CENTERS

12

(305mm)

1/2

(13mm)

10-3/4

(273mm)

4-1/2

(114mm)

SUPPLY

AS

REQ'D

*

FINISHED
FLOOR

7

(178mm)

4

(102mm)

CLOSET

BOLT

NUT

TAPERED
WASHER

FLANGE

Recommended fitting type for back-to-back installations.

Depending upon your plumbing and venting conditions, the flow from
the Champion in a back-to-back installation may create a vacuum on
the system and draw water from the opposing bowl. The National
Standards Plumbing Code prohibits the use of a cross fitting for
drainage as throw over is possible. The code does approve a
directional "Y" style fitting with proper venting to direct the water
downward and away from the other toilet.

NOTE: BACK-TO-BACK INSTALLATION

REMOVE OLD TOILET

a. Close toilet supply valve and flush tank completely. Towel or sponge remaining water from tank and bowl.
b. Disconnect and remove supply line. NOTE: If replacing valve, first shut off main water supply!
c. Remove old mounting hardware, remove toilet and plug floor waste opening to prevent escaping sewer gases.
d. Remove closet bolts from flange and clean away old wax, putty, etc. from base area.
NOTE: Mounting surface must be clean and level

before new toilet is installed!

1

Model 2034

29-3/4

(756mm)

8

(203mm)

1-3/4 (44mm)

1-1/4
(32mm)

16-1/2

(419mm)

13-1/2

(343mm)

10-3/4

(273mm)

29-1/2

(749mm)

16-3/4

(425mm)

17-3/4

(451mm)

FINISHED WALL

1
(25mm)

1
(25mm)

18-1/2

(470mm)

C/L OF SEAT
POST HOLES
5-1/2 (140mm)
CENTERS

12

(305mm)

C/L OF OUTLET

C/L OF OUTLET

1/2

(13mm)

10-3/4

(273mm)

4-1/2

(114mm)

SUPPLY

AS

REQ'D

*

FINISHED
FLOOR

7

(178mm)

3-3/4

(95mm)

INSTALL CLOSET BOLTS
Install closet bolts in flange
channel, turn 90°, and slide into
place 6" (152mm) apart and
parallel to wall.
