COMPRESSION
NUT
3/8” COMPRESSION
CONNECTION
COUPLING
NUT
FLEXIBLE
SUPPLIES
3/8 O.D.
BULL-NOSE
RISERS

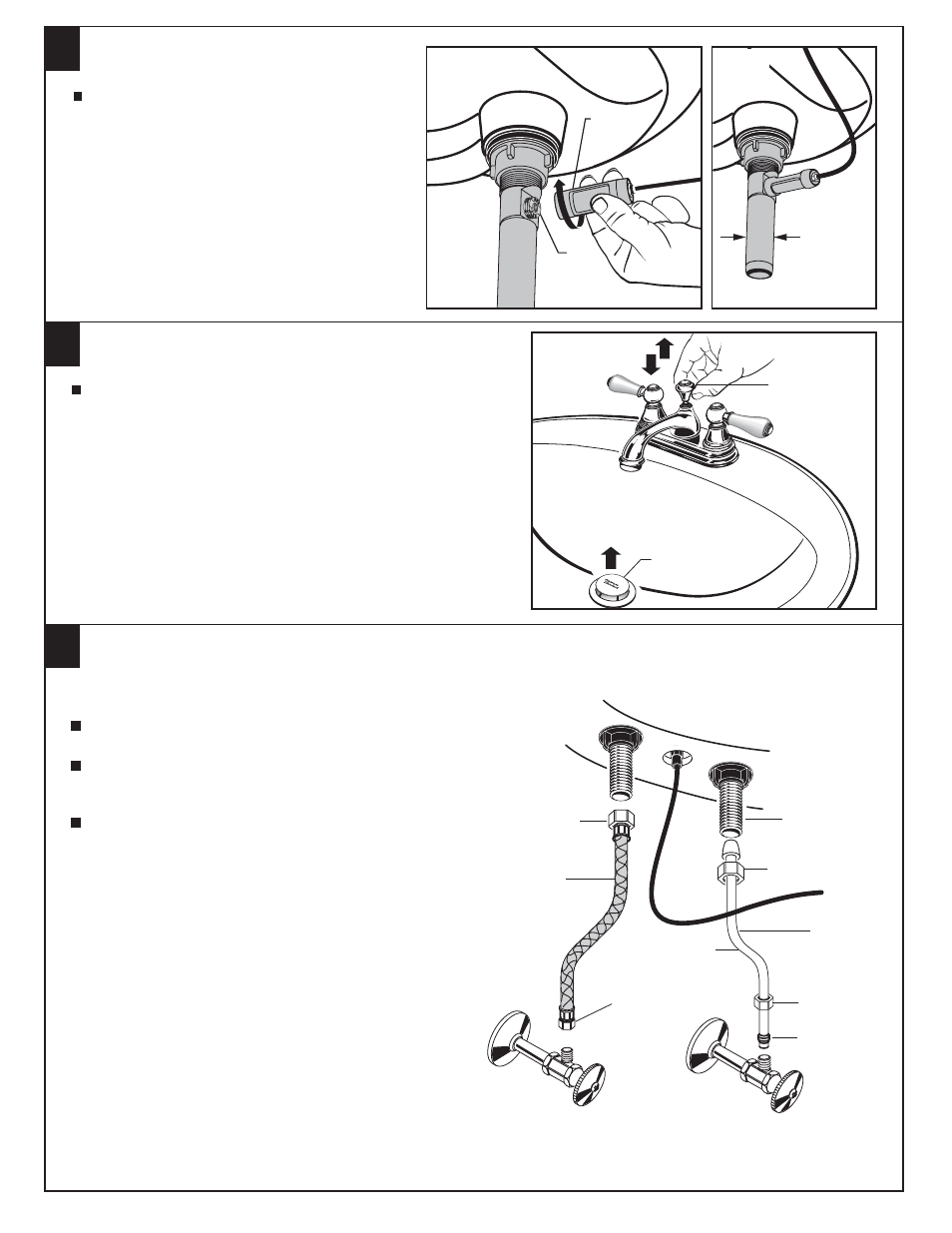

Thread CABLE CONNECTOR (1) clockwise
onto DRAIN BODY CONNECTION (2) and
hand tighten. Fig. A.
Your new POP-UP DRAIN installation is
now complete. Fig. B.
Note: Tailpeice on pop-up drain is 1-1/4” O.D.
Fig. B.
Fig. A.
ATTACH CABLE CONNECTOR
6
2
1
Operate LIFT KNOB (1) to verify that STOPPER (2) opens and
closes. Fig. B.
Note: If STOPPER (2) does not open and close properly
then refer to the “troubleshooting section” of these instructions.
CHECK OPERATION OF POP-UP
7
1-1/4” O.D.
Fig. B.
1/2" PIPE
THREAD
2
Connect water supply to FAUCET (1) with 1/2" IPS FLEXIBLE
SUPPLIES (2) or 3/8" O.D. BULL-NOSE RISERS (3).
Use adjustable wrench to tighten connections. Do not over tighten.
Be careful not to kink copper supply when bending. Use tubing
cutter to cut to proper length.
Connect 1-1/4” O.D. tailpiece on POP-UP DRAIN to
waste outlet.
MAKE WATER SUPPLY AND WASTE CONNECTIONS
8
FERRULE
1
2
3
NOTE: FLEXIBLE SUPPLIES OR BULL-NOSE RISERS MUST BE
PURCHASED SEPARATELY.
HOT
COLD
